Page 1-7 INST ALLA TION 1 Construction of the hardware Connector pin arrangement and names Signal interface Output circuit Input circuit Maximum of 20 circuits TD62107 Equivalent Built-in clamp diode Common Vss-12 V or 2…
Page 1-6
B) Ethernet cable (PT)
In using PT, it is necessary to use the ethernet cable.
Connect the cable with the hub in the machine and the computer to which the PT is installed with
the ethernet cable.
Ethernet cable (10m)
Ethernet 8 port hub
Connected to port 3
3Y3C-027E
3N3C-002E
Preparations for Installation
1-1-6 Board Setting / Ethernet Cable
A) Board setting
1) Stand alone : CN00 1-2 short (Line air pressure)
2) Line connection : CN00 1-2 open (Line air pressure)
NF18CX
∗
1
FOK 2-3 short
3) : CN00 1-2 short (Line air pressure)
NF18CX FOK 1-2 short
∗1) The “X” at the end may vary according to models.

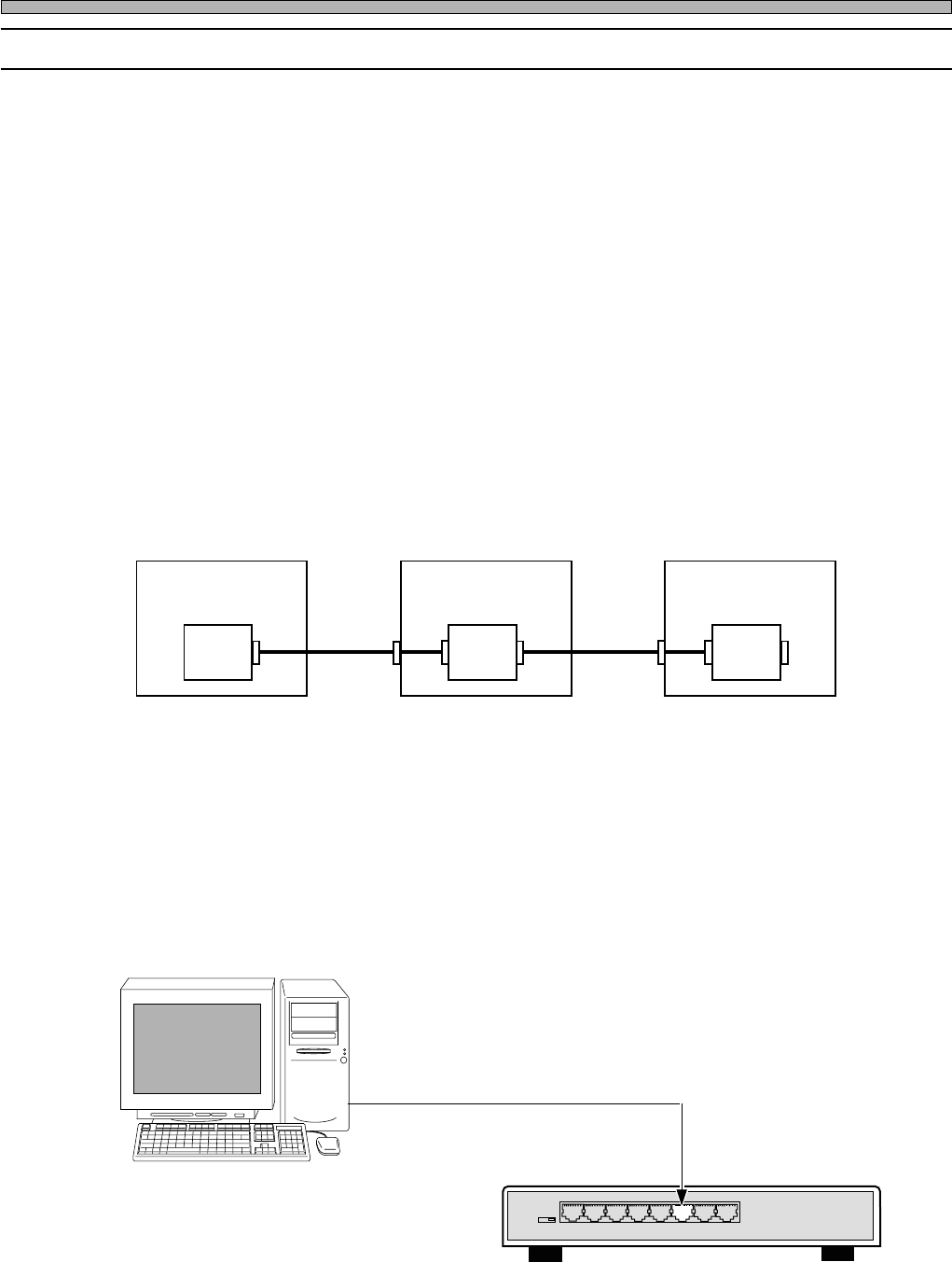

Line signal specification
Outline
Connect signals for board transport between the pre-process and the post-process, production
end, air pressure, etc. with one cable between machines.
CN01
Control
box
Machine 1
CN01
Control
box
Machine 1
CN01
Control
box
Machine 1
CN00CN00
CN00 : Connector to the previous process
CN01 : Connector to the next process
Connection with other
maker's machine
4Q4C-E-IMA01-A01-02
Personal computer (PT)
Page 1-7
INSTALLATION
1

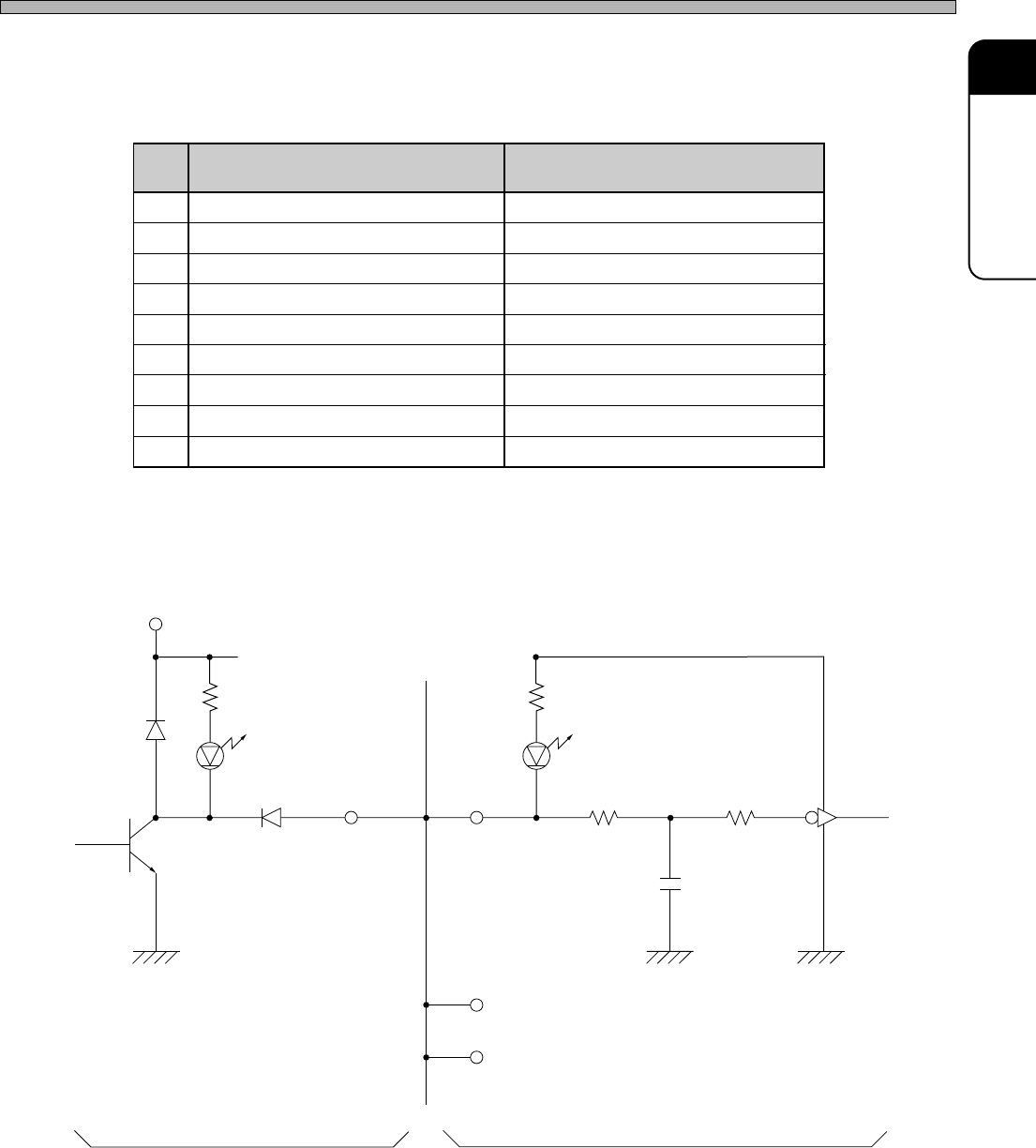

Construction of the hardware
Connector pin arrangement and names
Signal interface
Output circuit
Input circuit
Maximum of 20 circuits
TD62107 Equivalent
Built-in
clamp
diode
Common
Vss-12 V or 24 V
+12 V
4.7 kΩ
510 kΩ
10 kΩ
0.01 µF
CMOS 4584
Equivalent
6A4C-IL008
The common terminal of the clamp diode
built in TD62107P should be opened when
using this interface. (Do not use 62107 for
the solenoid driver because of the reason
above.)
Preparations for Installation
4Q4C-E-IMA01-A01-01
CN00
GND
Line air pressure
Unused
Unused
Unused
F-OK contact point
Operation-end
Operate line
F-OK
CN01
GND
Line air pressure
Unused
Line out 1
+12 V
Line out put
Operation-end
Operate line
R-READY
1
2
3
4
5
6
7
8
9
Page 1-8
Preparations for Installation
1-1-7 Length of Cables
It is unnecessary to connect with other products except followings:
Ready and Stop line signals
Ethernet signals
AC power
The line signals are actually not connected with the machine system.
This means that this machine system is totally separated from the system of the surrounding
devices.
Attached communication specifications
The length of the line signal cable used for the machine (series) is less than 3 m, so no further
testing of these cables is required.
The length of Ethernet signal cable used for the machine (series) is less than 10 m.
The length of AC power cable used for the machine is less than 7 m.
(Use the shielding wire for AC power cable.)
4Q4C-E-IMA01-A01-00
