Page 1-11 INST ALLA TION 1 2) Machine placement Place the machine along the reference line. Adjust the machine position so that the board is smoothly transferred between the previous and the next processes. (Direction an…
Page 1-10
1-2 Installing Procedure
NOTICE
Machine installation is conducted by experts.
Here, the outline of the procedure is described.
For rearranging the machine, make contact with the service department.
1) Machine transport condition
During the machine transport, X-axis, Y-axis, Z-axis, feeder base drawer, and sending cylinder
changer (it is for the double feeder) are fixed with the fixing brackets (red) to prevent removing.
∗ Half number of fixing brackets is necessary for CM201.
4Q4C-E-IMA01-A01-01
4Q4C-010CC0
4Q4C-011AC0
4U4C-150FC1
4Q4C-904E
4U4C-AC00
X-axis fixing brackets (4 points)
Y-axis fixing brackets (8 points)
Z-axis fixing brackets (4 points)
Fixing brackets for sending cylinder changer (4 points) (option)
Fixing brackets for feeder base drawer (8 points)
Page 1-11
INSTALLATION
1
2) Machine placement
Place the machine along the reference line. Adjust the machine position so that the board is
smoothly transferred between the previous and the next processes. (Direction and height of
transfer)
3) Removing the fixing bracket (red)
Remove all brackets (red). Keep the removed brackets.

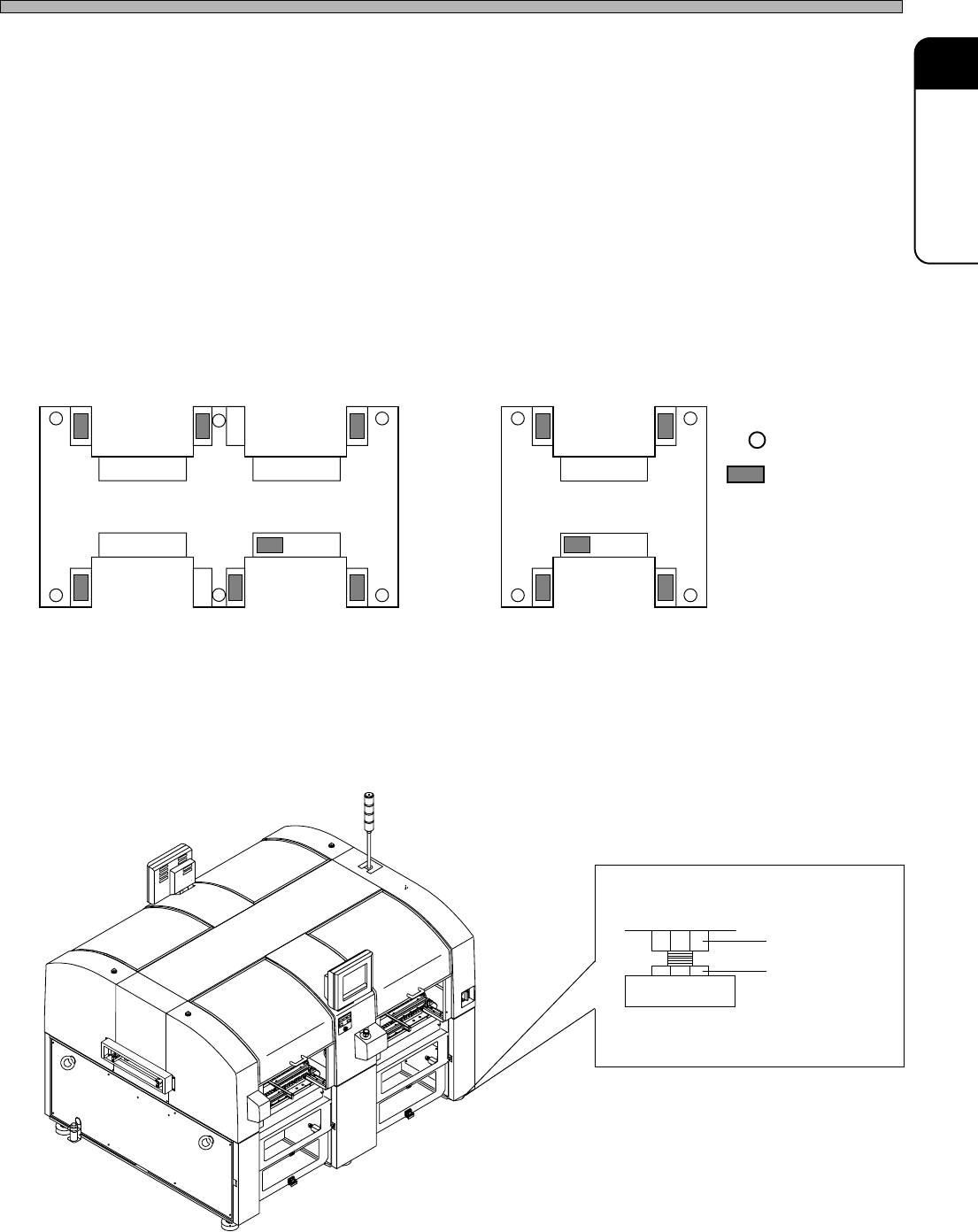

4) Setting the accurate level
Install the level (0.02 mm / m / div) to the position described below.
Adjust it so that it gets less than a scale (0.02 mm / m) by using the adjustment bolt.
After adjustment tighten the locking nut.
Locking nut
Installing Procedure
4Q4C-E-IMA01-A01-01
Adjustment bolt
Level pad
CM202-DU, CM202-DHU
CM201-DU
: Level pad
: Installing
position
of the level
4U4C-901EU
1B4C-840E
4Q4C-IL001E
Page 1-12
5) Connecting the surrounding devices
Install the status Indicator according to the procedure of 1-3.
In case of the line specification, connect a signal cable as 1-1-6.
6) Connecting the power source and air source
Connect the primary power source and the primary air source.
7) Adjust the air pressure
Adjust the regulator so that the secondary air pressure is 0.49 MPa.
8) Power supply
(1)Turn the main power switch ON.
(2)Turn the servo select switch ON.
Then, start the operation by following the procedure on operating manual.
Installing Procedure
4Q4C-E-IMA01-A01-01
(2) Servo select switch
M 92E
POWER AND AIR SOURCES SHOULD BE CONNECTED AT THE LAST OF
INSTALLING OPERATION.
If they are connected earlier, you may get an electric shock or injured.
WARNING
R
E
L
E
A
S
E
T
R
I
P
O
F
F
O
N
R
E
S
E
T
(1) Main power switch
OFF ( )
ON ( )
SERVO
STOP
UNLOCK
STEP
START
SELECT
KEY LOCK
KEY LOCK
4U4C-901EU
