YSi-X_HD_mpl - 第10页
KLC-1304 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…
KLC-1304
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1
KLC-M13J1-00 STAY,COVER SIDE M 2 /
Í
39
2
KLC-M13J2-01 STAY,COVER SIDE L
2
/
Í
40
3
KLC-M13J3-01 STAY,COVER RR. L 1 /
Í
41
4
KLC-M13J4-00 STAY,COVER FR. L 1 /
Í
42
5
KLC-M13J5-00 STAY,COVER FR. M 1 /
Í
43
6
KLC-M13J6-00 STAY,COVER RR. M 1 /
Í
44
7
KLC-M13JE-00 STAY,FRAME LWR. 6 /
Í
45
8
KLC-M13JF-00 BRKT.,COVER LWR. 2 /
Í
46
9
KLC-M13JH-00 BRKT.,COVER CL 4 /
Í
47
10
KLC-M13JJ-00
BRKT.,COVER CL2 4 /
Í
48
11
KLC-M13M1-00 MAGNET 10 /
Í
49
12
90990-23J027 GROMMET 14 /
Í
50
13
KLC-M13L1-01 COVER,LWR. 1 1 /
51
14
KLC-M13L2-00 COVER,LWR. 2 1 /
52
15
KLC-M13NH-00 COVER,LWR. 3 ASSY. 1 /
53
16
KLC-M13NJ-00 COVER,LWR. 4 ASSY. 1 /
54
17
KLC-M13L5-00 COVER,LWR. 5 1 /
55
18
KLC-M13L6-00 COVER,LWR. 6 1 /
56
19
KLC-M13NK-00 COVER,LWR. 7 ASSY. 1 /
57
20
KLC-M13LB-00 COVER,LWR. B 2 /
Í
58
21
KLC-M13LC-00 COVER,LWR. C 1 /
Í
59
22
KLC-M13LD-00 COVER,LWR. D 1 /
Í
60
23
KLC-M13LE-00 COVER,LWR. E 1 /
Í
61
24
KLC-M13LF-00 COVER,LWR. F 1 /
Í
62
25
KH1-M1396-00 WASHER 4 /
Í
63
26
91312-04008 BOLT HEX.SOCKET HEAD 38 M4X8
64
27
91312-04014 BOLT,HEX.SOCKET HEAD 29 M4X14
65
28
91312-05010 BOLT HEX.SOCKET HEAD 58 M5X10
66
29
90990-12J001 SCREW BIN.HEAD W/W 12
67
30
90990-28J141 WASHER,PLAIN 29
68
31
98702-03006 SCREW FLAT HEAD 20
69
32
95702-04500 NUT FLANGE 6
70
33
KLC-M13JK-00 BRKT.MG LWR. 1
71
34 72
35 73
36 74
37 75
38 76
2
2

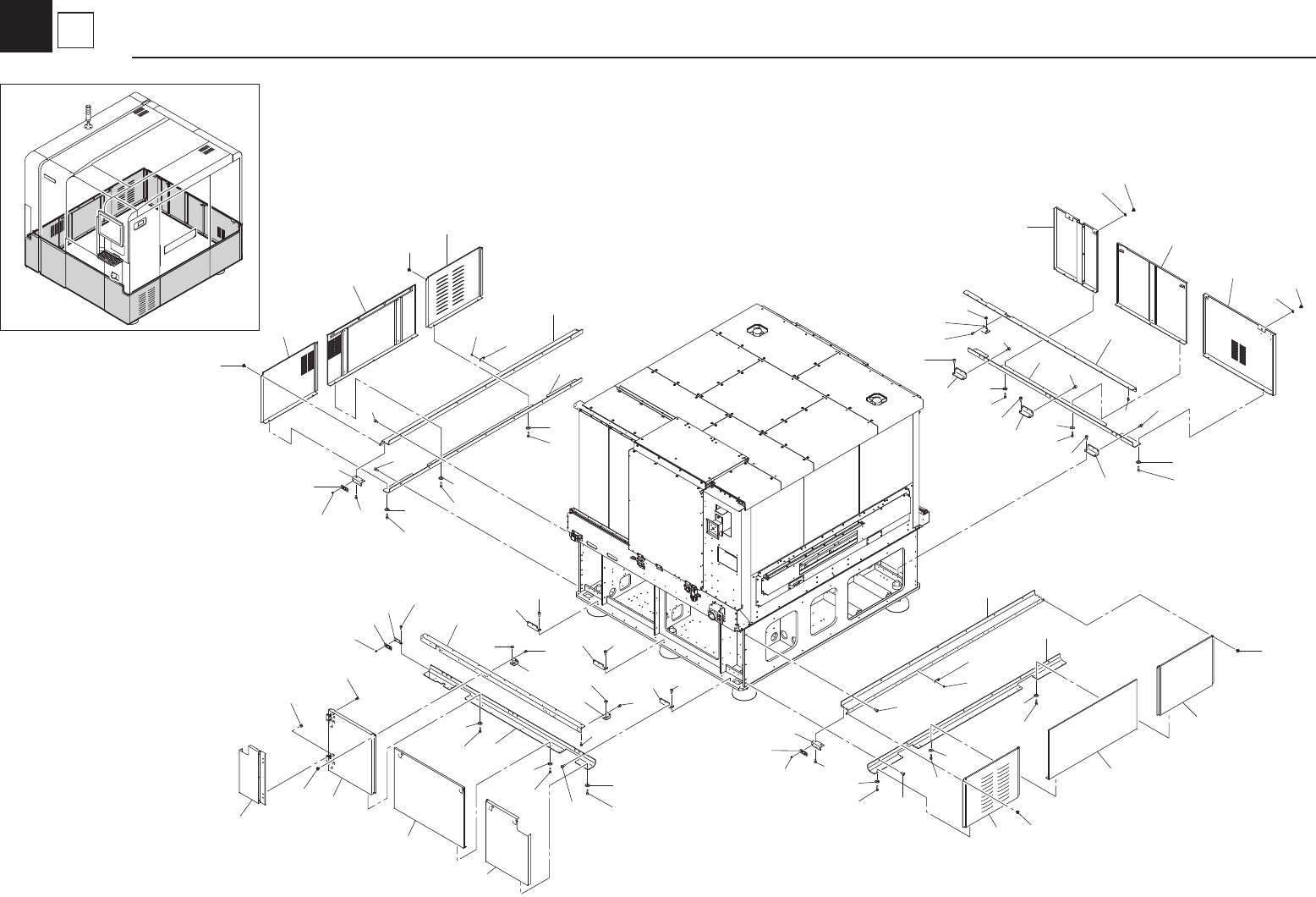

Lower Cover

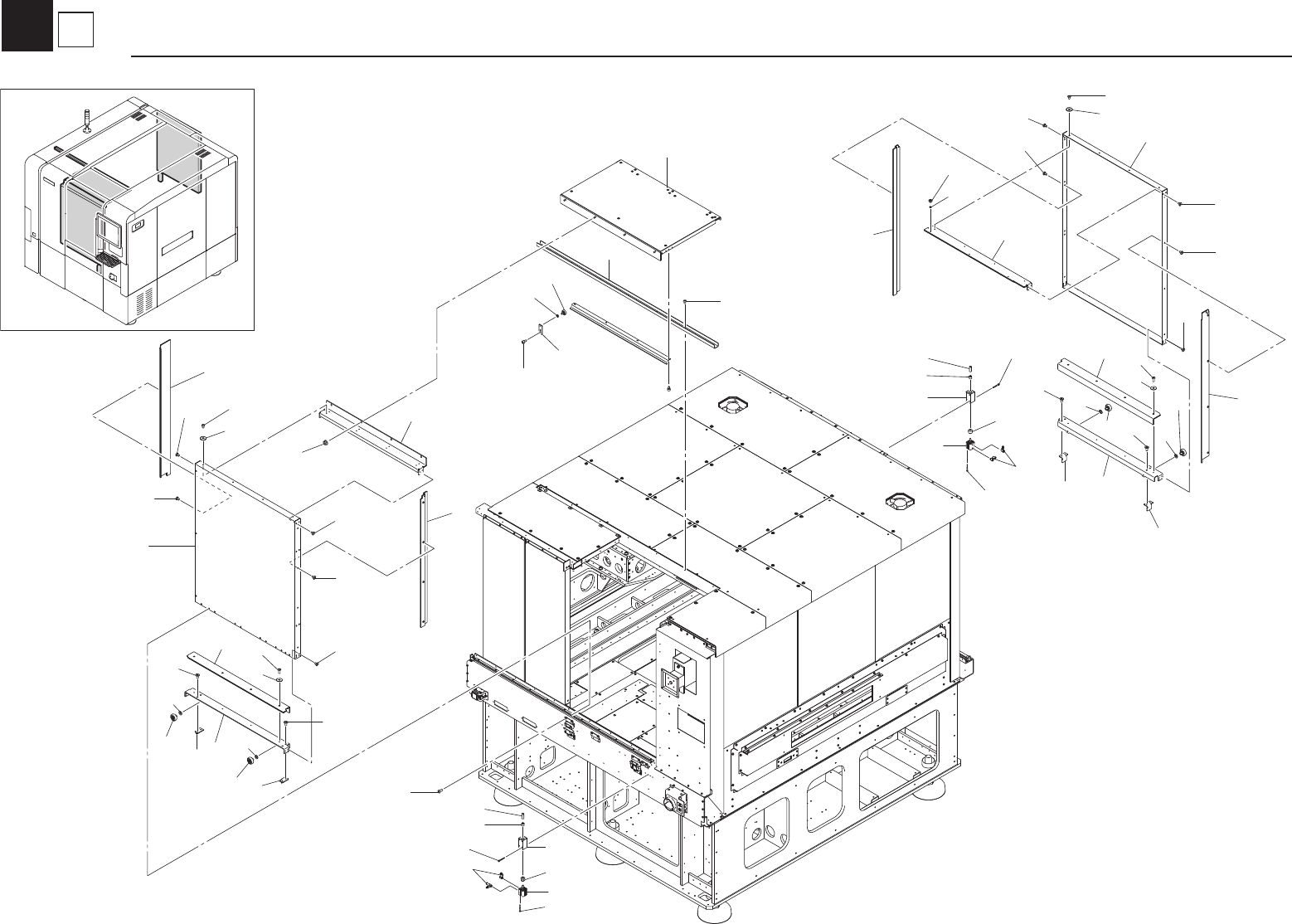

Cover
