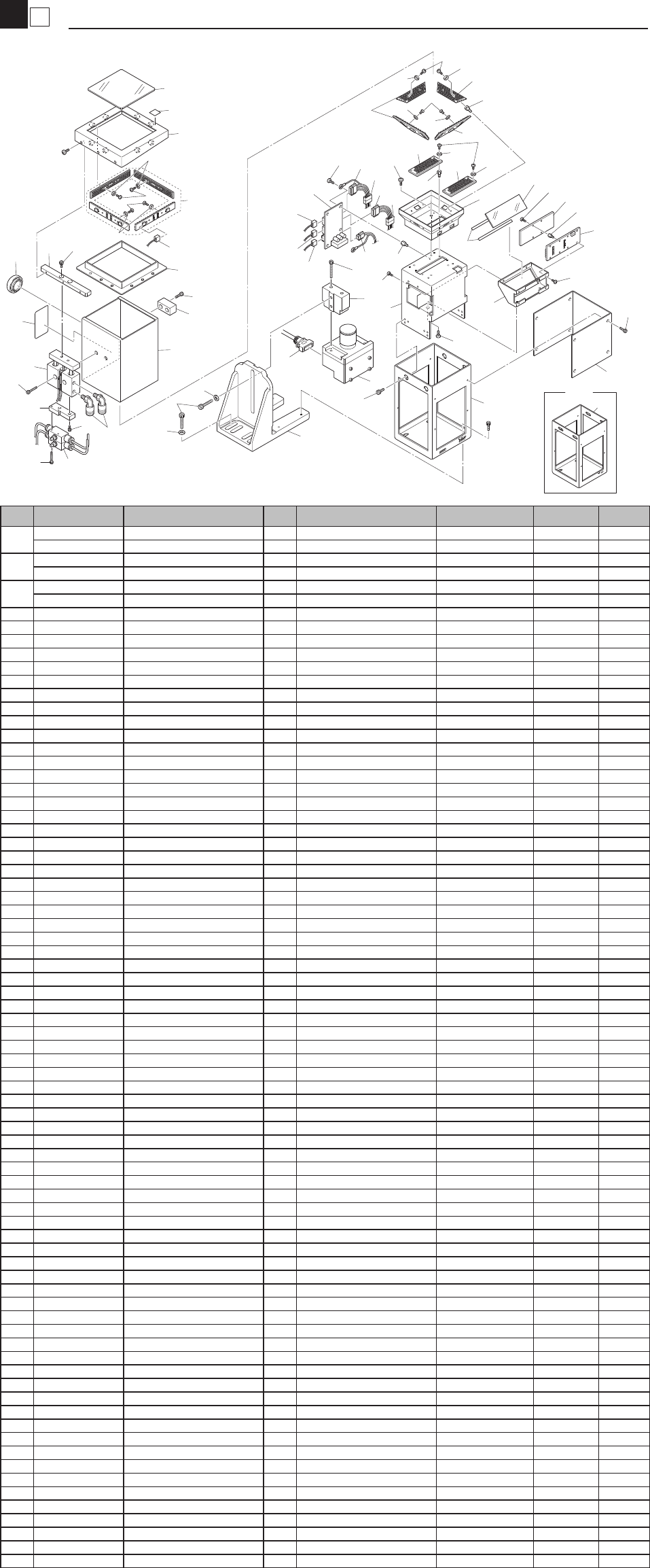

Multi Camera & Light Assy.2 (These parts can't be sold .)
Camera
KGS-1109
16
10
14
31
31
30
30
50
9
42
43
8
13
2
23
38
21
38
24
44
39
1
18
22
35
11
41
40
36
12
43
37
3
4
43
7
4
27>25
17
20
19
29
47
6
5
49
51
52
28
39
53
48
46
45
38
32
31
26>25
30
30
25
25
31
30
30
32
31
30
30
25
15
31
54
33
34
26>25
OLD
23
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KV1-M73A0-73X MULTI CAM.SUB ASSY 1 50mm
KV1-M73A0-63X MULTI CAM.SUB ASSY 1 35mm
1-1
KV1-M73A0-75X MULTI CAM.SUB ASSY 1 50mm (2004/12/29) MAY0084 OK
KV1-M73A0-65X MULTI CAM.SUB ASSY 1 35mm (2004/12/29) MAY0084 OK
1-2
KV1-M73A0-74X MULTI CAM.SUB ASSY 1 50mm (2005/1/31) MB10084 OK
KV1-M73A0-64X MULTI CAM.SUB ASSY 1 35mm (2005/1/31) MB10084 OK
2 KGR-M7301-00X STAND,CAMERA 1
2-1 KGR-M7301-10X STAND,CAMERA 1 (2005/4/30) MB40139 OK
2-2 KJJ-M7301-01X STAND,CAMERA 1 (2010/1/14) MG10021 OK
3 91317-06020 BOLT HEX.SOCKET HEAD 4
4 92907-06200 WASHER PLAIN 4
5 KV1-M7303-00X HOLDER,CAMERA 1 1
6 91317-05045 BOLT HEX.SOCKET HEAD 2
7 KGA-M66F0-01X C.CABLE ASSY 1
8 KGR-M7511-00X FRAME,SIDE LIGHT 1
9 KGR-M7514-00X DIFFUSER,SIDE LIGHT 1
10 KGR-M7515-00X COVER,SIDE LIGHT 1
11 KGR-M7522-00X CYLINDER ASSY 1
12 KGR-M7524-00X PLATE,SPICON 1
13 KGR-M7528-00X STOPPER 1
13-1 Delete (2009/10/23) MF00095
14 KGR-M7550-10X M.LIGHT S.BOARD SET 1 Four pieces of LED boards
14-1 KGR-M755S-A1X M.LIGHT BRD,SIDE SET 1 Light+Seal (V2.46std R1.000-) (2009/5/21) MF50022 NG
15 KGR-M7510-00X HALF MIRROR 1
16 KGR-M7512-00X COVER,GLASS 1
17 KGR-M7513-00X DIFFUSER,COAX 1
18 KGR-M7516-02X COVER,LIGHT UNIT 1
18-1 KGR-M7516-03X COVER,LIGHT UNIT 1 Notch of 30x70mm (2009/2/26) MF20099 NG
19 KGR-M7517-00X FRAME,BASE 1
19-1 KGR-M7517-01X FRAME,BASE 1 Two omission hole of 30x34mm (2009/2/26) MF20099 NG
20 KGR-M7518-00X FRAME,MAIN LIGHT 1
21 KGR-M7519-00X FRAME,COAX 1
22 KGR-M7520-00X GROMMET 1
22-1 90990-23J010 GROMMET 1 (2007/12/4) MDX0031 OK
23 KGR-M7539-00X STAND,LIGHT 1
23-1 KGR-M7539-01X STAND,LIGHT 1 2005/9/14 MB60030 NG
24 KGR-M7541-00X COVER,CAMERA 1
25 KGR-M7554-01X M.LIGHT MAIN ASSY 4
25-1 KGR-M755S-00X M.LIGHT BOARD SET 1 MAIN x4,SUB CX x2,COAX x1 (2007/5/23) MD50050
25-2 KGR-M755S-01X M.LIGHT BOARD SET 1
（2010/01/18）
MG10070 OK
26 KGR-M7556-00X M.LIGHT SUB CX.ASSY 1
26-1 Delete (2007/5/23) MD50050
27 KGR-M7558-01X M.LIGHT COAX.ASSY 1
27-1 Delete (2007/5/23) MD50050
28 KV1-M6474-02X KV1 LED DRIVER ASSY 1
28-1 KV1-M6474-03X LED DRIVER BRD. ASSY 1 (2005/8/3) MB80003 OK
28-2 KV1-M6474-04X LED DRIVER BRD. ASSY 1 (2008/5/29) ME50098 OK
29 90563-03J050 SPACER BOLT 4
30 KGR-M7540-00X ISOLATE WASHER 8
30-1 90990-28J043 WASHER,PLAIN 8 (2007/12/20) MDX0104 OK
31 90166-04JA04 SCREW,PAN HEAD 8
31-1 90166-02JA04 SCREW PAN HEAD 8 (2006/1/10) MBY0154 OK
32 90563-0AJ040 SPACER,BOLT 16
32-1 90563-0AJ040 SPACER,BOLT 8 (2006/8/24) MC80050 OK
33 90562-0AJ120 SPACER,BOLT 4
34 90K41-000240 SEAL,DON'T TOUCH 2
35 KGR-M6417-00X LABEL,LIGHT 1
36 SSU4 SPEED CONTROLLER 2
37 TL4-M3M JOINT 2
38 98507-04005 SCREW PAN HEAD 13
39 98507-03005 SCREW PAN HEAD 8
40 91317-03025 BOLT HEX.SOCKET HEAD 2
41 91317-04018 BOLT HEX.SOCKET HEAD 2
42 91317-04008 BOLT HEX.SOCKET HEAD 2
43 91317-04005 BOLT HEX.SOCKET HEAD 8
44 91317-03005 BOLT HEX.SOCKET HEAD 8
45 KGR-M66N1-00X HNS,LIGHT1 1
46 KGR-M66N2-00X HNS,LIGHT2 1
47 KV7-M66N3-00X HNS,LIGHT3 1
48 KGR-M66N5-00X HNS,LIGHT5 1
49 KGR-M66N6-00X HNS,LIGHT6 1
50 KGR-M66N7-00X HNS,LIGHT7 3
51 KGR-M66N8-00X HNS,LIGHT8 1
51-1 KGR-M66N8-01X HNS,LIGHT8 1 (2006/11/6) MC00079 OK
52 KGR-M66N9-00X HNS,LIGHT9 1
53 KGR-M66NA-00X HNS,LIGHT10 1
54 KGR-M7534-00X ADHESIVE TAPE 2
28
8
21
18
11
12
18
23
16
17
15
9
29
24
26
25
30
19
14
13
10
29
2
2
31
1
32
3
31
27
27
6
20
7
9
16
17
15
34
44
43
41
47
39
40
36
52
45
37
50
48
38
35
51
42
46
33
48
49
4
5
22
1
9

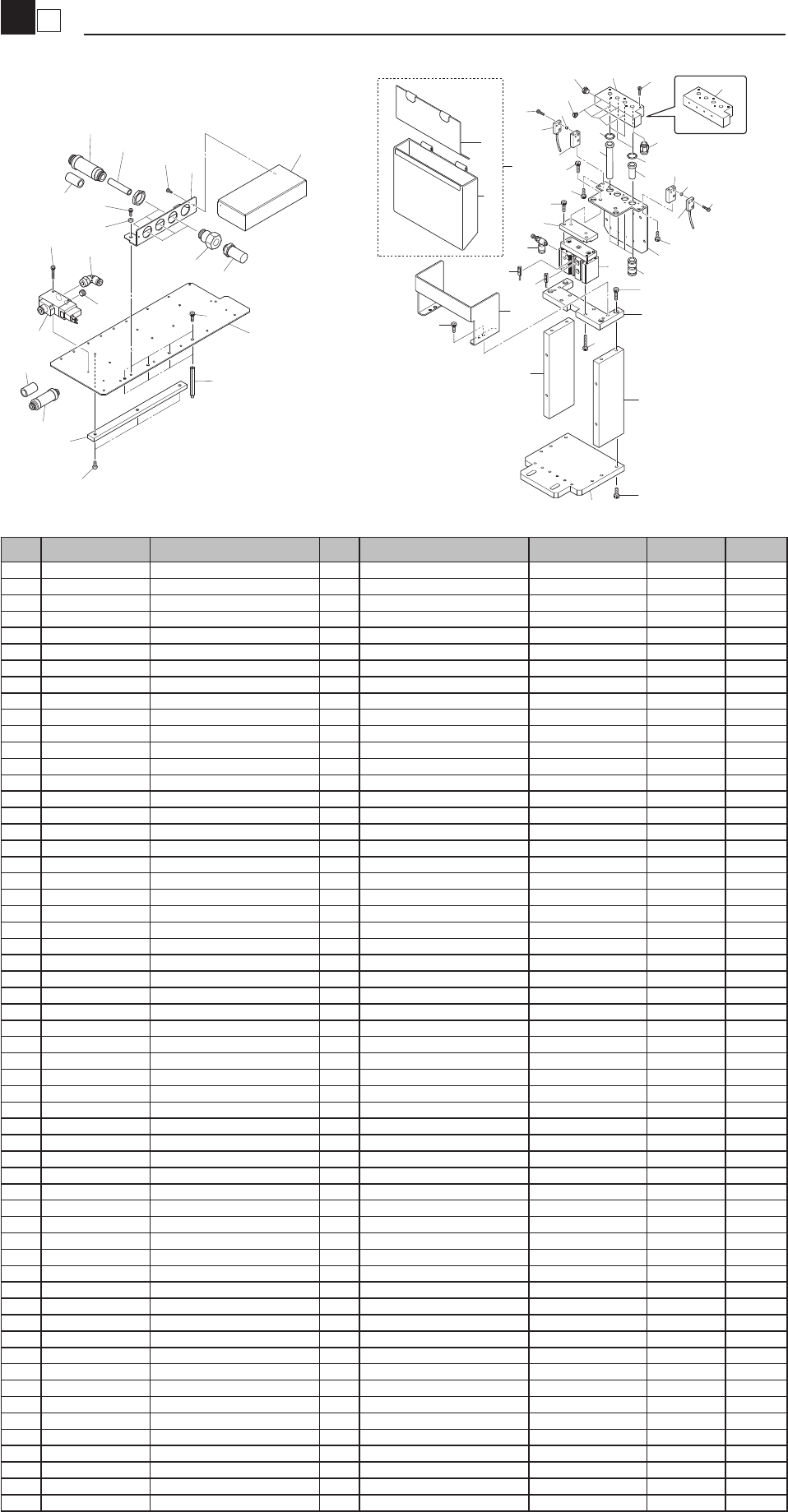

Blow Station Sel.
Blow Station
KGS-1109
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGS-M9901-01X BASE1, BLOW ST. 1
2 KGS-M9902-01X BASE2, BLOW ST. 2
3 KGS-M9903-01X BASE3, BLOW ST. 1
4 KGS-M9904-01X CYLINDER, BLOW ST. 1
5 KGS-M9905-01X BLOCK BLOW ST. 1
6 KGS-M9906-01X PLATE, BLOW ST. 1
7 KGS-M9907-01X TOP. BLOW ST 1 FNC
8 KGS-M9907-51X TOP. BLOW ST 1 SF
9 KGS-M9908-01X BLOCK, SENSOR 2
10 KGS-M9914-01X COVER, BLOW ST. 1
11 KGS-M9919-00X COLLER S, BLOW ST. 2
12 KGS-M9920-00X COLLER L, BLOW ST. 2
13 KGS-M9916-A1X SENSOR UPPER 1
14 KGS-M9916-B1X SENSOR LOWER 1
15 KGS-M9918-A1X SENSOR ASSY. 1
16
KV8-M71VS-00X COLLAR,SENSOR 4
16-1 90990-41J066 COLLAR 4 (2008/4/17) ME20197 OK
17 90115-02J008 BOLT HEX. SOCKET HEAD 4
18 90200-00J100 O-RING 4
18-1 90990-17J039 O-RING 4 (2006/12/18) MCY0050 OK
19 $SC4-M5A SPEED CONTROLLER 2
20 $US10 JOINT 4
21 $TS6-01 JOINT 1
22 K40-M8598-10X PULUG 1 1
23 $PF-M3 PULUG 2 4
24 KGS-M99D0-00X DUMP BOX ASSY. 1
25 KGS-M99D1-00X DUMP BOX 1
26 KGS-M99D2-00X DEFFUSE PLATE 1
27 91317-03006 BOLT HEX. SOCKET HEAD 4
28 91317-03016 BOLT HEX. SOCKET HEAD 5
29 91317-04006 BOLT HEX. SOCKET HEAD 6
29-1 91317-04006 BOLT HEX.SOCKET HEAD 4 (2007/4/17) MD40054 OK
30 91317-04008 BOLT HEX. SOCKET HEAD 2
31 91317-04014 BOLT HEX. SOCKET HEAD 8
32 91317-04016 BOLT HEX. SOCKET HEAD 4
33 KGR-M9931-00X BRACKET, MUFFLER 1
34 KGR-M9932-00X COVER, MUFFLER 1
35 KGR-M9933-00X INLINE FILTER 3
36 KGR-M9934-01X INLINE FILTER 1
37 KGR-M9935-01X SPACER 1
38 KGS-M111U-02X PLATE, AMP 1
39 KGS-M9917-A0X VALVE ASSY. 1
39-1 KHW-M9906-A0X VALVE ASSY. 1 (2007/6/15) MD60014 OK
40 K40-M8598-00X PLUG 1 1
40-1 K40-M8598-10X PLUG 1 1 (2007/4/16) MD40054 OK
41 $TL6-02 JOINT 1
42 $AN10 JOINT 4
43 $UKM10-02 JOINT 4
44 $KM-2 MUFFLER 4
45 90563-24J550 SPACER 4
46 91317-03005 BOLT HEX. SOCKET HEAD 2
47 91317-03020 BOLT HEX. SOCKET HEAD 2
48 91317-04006 BOLT HEX. SOCKET HEAD 6
49 92907-04200 WASHER PLAIN 2
50 98904-04005 SCREW,BINDING HEAD 3
50-1 98902-04005 SCREW BINDING HEAD 3 (2006/1/9) MBY0166 OK
51 KGR-M9933-F0X FILTER,SPARE 1
52 KGR-M9934-F0X FILTER,SPARE 1
1
10
Side View Unit
SectionSide View Unit (Op.)
KGS-081112
5
6
7
10
10
11
9
9
8
12
13
14
15
16
17
18
19
19
20
21
25
24
27
26
20
22
23
11
4
1
1
2
3
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGS-M7901-00X BRACKET, SV LIGHT 2
2 KGS-M7902-01X PLATES, S,VIEW LIGHT 1
3 KGS-M7903-00X DIFFUSER, SV. LIGHT 1
4 KGS-M7905-02X SV.LIGHT BOARD ASSY 1
5 KGS-M66K2-00X HNS,SV LIGHT 1
5-1 KGS-M66K2-01X HNS,SV LIGHT 1 2006/9/13 MC50051 NG
6 90K41-000240 SEAL, DON'T TOUCH 1
7 90563-0AJ040 SPACER, BOLT 3
8 90166-04JA04 SCREW,PAN HEAD 3
8-1 90166-02JA04 SCREW PAN HEAD 3 (2006/1/10) MBY0154 OK
9 99480-04008 PIN PARALLEL: 4X10 2
10 91317-04008 BOLT HEX. SOCKET HEAD 2
11 91317-04025 BOLT HEX. SOCKET HEAD 4
12 KGS-M7910-00X BASE, S.VIEW CAMERA 1
13 KGS-M7911-00X STAY 1, S.VIEW CAMERA 1
14 KGS-M7912-01X STAY 2, S.VIEW CAMERA 1
15 KGS-M7913-01X CCD CAMERA 1
16 KGS-M7914-00X LENS, S.VIEW 1
17 KGS-M7915-00X COVER, S.VIEW CAMERA 1
18 KGA-M66F2-00X C. CABLE ASSY:L6M 1
19 99480-04008 PIN, PARALLEL 2
20 91317-05012 BOLT HEX. SOCKET HEAD 6
21 91317-04010 BOLT HEX. SOCKET HEAD 4
22 90115-02J008 BOLT HEX. SOCKET HEAD 4
23 90990-28J002 WASHER PLAIN 4
24 92907-05200 WASHER PLAIN 2
25 92907-04200 WASHER PLAIN 4
26 91317-04006 BOLT HEX. SOCKET HEAD 4
27 KV7-M7165-00X SEAL DON'T TOUCH 2
