- - RE F .NO N O TE PART NO D E S C R I P T I O N Q t y 1 401-14720 CVS UNIT V 1 2 SL-603 05 92- TN SCREW M3 L=5 (1 2) 3 400-99514 CVS BASE P ( 1) 4 SM-6051202-TN SCREW M5 X 0. 8 L=12 ( 2) 5 401-05839 CVS BRACKE T ( 1)…
- -

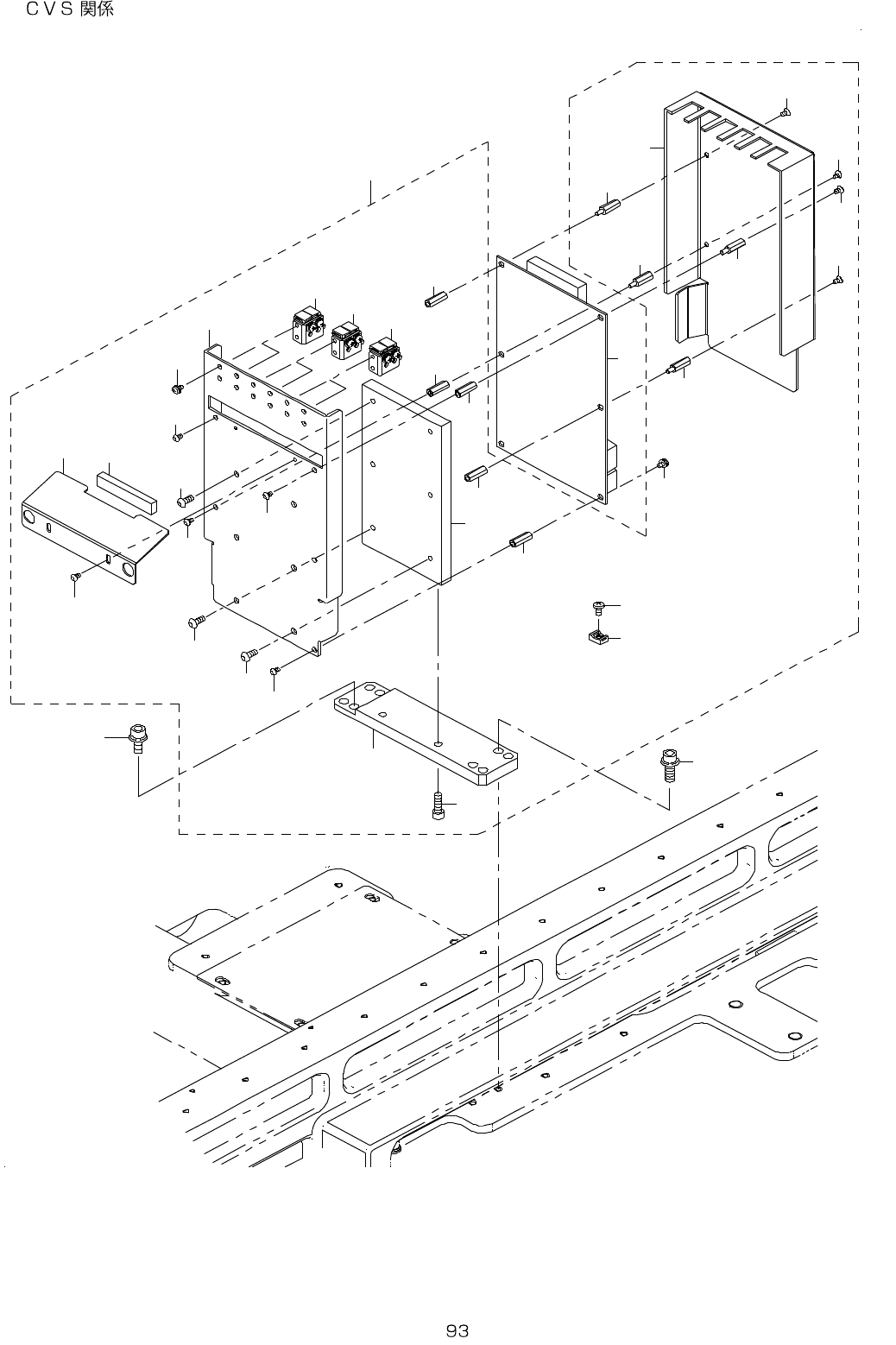

47.CVS COMPONENTS
2
2 0
1 9
2 1
1
9
9
9
9
6
5
3
1 2
1 8
1 7
1 6
1 5
1 4
1 3
1 2
1 1
1 1
1 1
1 1
1 0
1 0
1 0
1 0
1 0
1 2
1 2
8
7
7
7
6
6
4
2 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-14720 CVS UNIT V 1
2 SL-6030592-TN SCREW M3 L=5 (12)
3 400-99514 CVS BASE P (1)
4 SM-6051202-TN SCREW M5X0.8 L=12 (2)
5 401-05839 CVS BRACKET (1)
6 SM-3041052-TN SCREW M4 L=10 (6)
7 401-01989 CONTACT SUB UNIT (6)
8 401-05838 CVS COVER (1)
9 SM-3030552-TN SCREW M3 L=5 (5)
10 400-48829 STUD17 (5)
11 HX-0035400-0G BOARD PARTS (4)
12 SM-1030552-TN PLATE SCREW M3 L=5 (4)
13 SL-4030681-SC SCREW M3 L=6 (1)
14 HX-0029400-00 FIXED BASE (4)
15 SM-4040601-SC SCREW M4X0.7 L=6 (4)
16 401-05840 CVS PCB COVER (1)
17 SM-3030552-TN SCREW M3 L=5 (2)
18 400-80833 SPONGE (1)
19 401-18897 CVS_BASE_V2 (1)
20 SL-6062092-TN SCREW M6 L=20 2
21 400-95117 CVS PCB ASM. 1
22 SL-6061692-TN BOLT 1
- -
48.NOZZLE ASSEMBLY COMPONENTS
1 81 7
987
1 1
1 6
1 51 41 31 2
21
5
1 0
6
43
