- - 61.I FS - N X COM P O NENTS(3 ) 1 6 1 0 9 1 0 9 8 8 7 1 1 7 6 6 5 5 4 3 1 1 1 2 1 5 1 2 1 8 1 7 2 5 1 9 2 0 2 1 2 1 2 2 2 2 7 2 5 7 8 8 2 3 2 4 2 3 2 4
- -

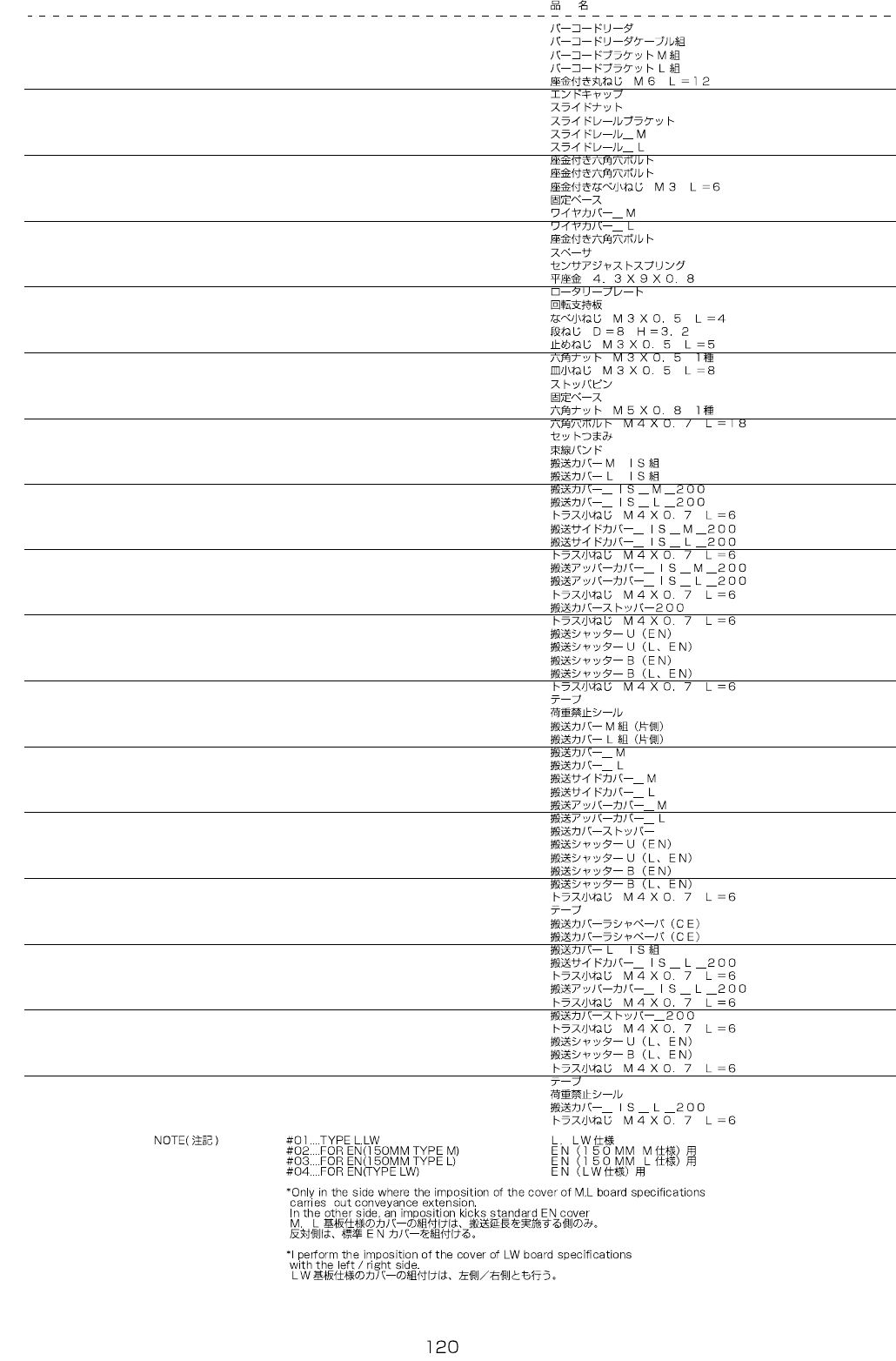

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 HX-0061000-00 BARCODE READER 1
2 401-13670 BARCODE READER CABLE ASM 1
3 401-14867 BARCODE BR M ASM 1
4
#01
401-14897 BARCODE BR L ASM 1
5 SL-3061232-TN SCREW (4)
6 400-28301 END CAP (2)
7 400-28302 SLIDE NUT (9)
8 400-99103 SLIDE_RAIL_BR (2)
9 401-11844 SLIDE_RAIL_M (1)
10
#01
401-11851 SLIDE_RAIL_L (1)
11 SL-6040892-TN BOLT (2)
12 SL-6041092-TN SCREW (4)
13 SL-4030691-SC SCREW M3 L=6 (4)
14 HX-0029400-00 FIXED BASE (4)
15 401-11845 WIRE_COVER_M (1)
16 401-11852 WIRE_COVER_L (1)
17 SL-6040892-TN BOLT (4)
18 400-58815 SPACER 1
19 400-00912 SENSOR ADJUST SPRING 2
20 WP-0430801-SC WASHER 4.3X9X0.8 4
21 400-33068 ROTARY PLATE 1
22 400-28300 ROTARY SUPPORT PLATE 1
23 SM-4030401-SC SCREW M3X0.5 L=4 1
24 SD-0800327-TP SHOULDER SCREW 1
25 SM-8030502-TP SCREW M3 L=5 1
26 NM-6030001-SC NUT M3 1
27 SM-1030801-SC SCREW M3 L=8 2
28 G6025-875-000 STOPPER PIN 1
29 HX-0029400-00 FIXED BASE 1
30 NM-6050001-SC NUT M5 1
31 SM-6041802-TN SCREW M4X0.7 L=18 2
32 G6518-880-000 SET PICK-UP 1
33 EA-9500B01-00 CABLE BAND 5
34
#02
401-47653 CONVEYOR COVER M IS ASM 1
35
#03
401-47655 CONVEYOR COVER L IS ASM 1
36
#02
401-47179 CONVEYOR_COVER_IS_M_200 (1)
37
#03
401-47180 CONVEYOR_COVER_IS_L_200 (1)
38 SM-0040601-SC SCREW M4X0.7 L=6 (4)
39
#02
401-47178 CONVEYOR_SIDE_COVER_IS_M_200 (1)
40
#03
401-47181 CONVEYOR_SIDE_COVER_IS_L_200 (1)
41 SM-0040601-SC SCREW M4X0.7 L=6 (4)
42
#02
401-47177 CONVEYOR_UPPER_COVER_IS_M_200 (1)
43 #03 401-47182 CONVEYOR_UPPER_COVER_IS_L_200 (1)
44 SM-0040601-SC SCREW M4X0.7 L=6 (2)
45 401-47192 CONVEYOR_COVER_STOPPER_200 (1)
46 SM-0040601-SC SCREW M4X0.7 L=6 (2)
47
#02
400-01480 CONVEYOR SHUTTER U (EN) (1)
48 #03 400-01484 CONVEYOR SHUTTER U(LEN) (1)
49
#02
400-01481 CONVEYOR SHUTTER B (EN) (1)
50
#03
400-01485 CONVEYOR SHUTTER B(LEN) (1)
51 SM-0040601-SC SCREW M4X0.7 L=6 (8)
52 400-01490 TAPE (1.5)
53 E5721-729-000 LABEL (1)
54
#02
401-47654 CONVEYOR COVER M ASM(ONE SIDE) 1
55
#03
401-47656 CONVEYOR COVER L ASM(ONE SIDE) 1
56
#02
401-47164 CONVEYOR_COVER_M (1)
57
#03
401-47167 CONVEYOR_COVER_L (1)
58 #02 401-47165 CONVEYOR_SIDE_COVER_M (1)
59
#03
401-47168 CONVEYOR_SIDE_COVER_L (1)
60
#02
401-47166 CONVEYOR_UPPER_COVER_M (1)
61
#03
401-47169 CONVEYOR_UPPER_COVER_L (1)
62 401-47170 CONVEYOR_COVER_STOPPER (1)
63 #02 400-01480 CONVEYOR SHUTTER U (EN) (1)
64
#03
400-01484 CONVEYOR SHUTTER U(LEN) (1)
65
#02
400-01481 CONVEYOR SHUTTER B (EN) (1)
66
#03
400-01485 CONVEYOR SHUTTER B(LEN) (1)
67 SM-0040601-SC SCREW M4X0.7 L=6 (20)
68 400-01490 TAPE (1.5)
69
#02
E1143-721-000 WOOLEN CLOTH PAPER (1)
70
#03
E1143-721-000 WOOLEN CLOTH PAPER (2)
71
#04
401-47655 CONVEYOR COVER L IS ASM 2
72 401-47181 CONVEYOR_SIDE_COVER_IS_L_200 (1)
73 SM-0040601-SC SCREW M4X0.7 L=6 (4)
74 401-47182 CONVEYOR_UPPER_COVER_IS_L_200 (1)
75 SM-0040601-SC SCREW M4X0.7 L=6 (2)
76 401-47192 CONVEYOR_COVER_STOPPER_200 (1)
77 SM-0040601-SC SCREW M4X0.7 L=6 (2)
78 400-01484 CONVEYOR SHUTTER U(LEN) (1)
79 400-01485 CONVEYOR SHUTTER B(LEN) (1)
80 SM-0040601-SC SCREW M4X0.7 L=6 (8)
81 400-01490 TAPE (1.5)
82 E5721-729-000 LABEL (1)
83 401-47180 CONVEYOR_COVER_IS_L_200 (1)
84 SM-0040601-SC SCREW M4X0.7 L=6 (4)
- -

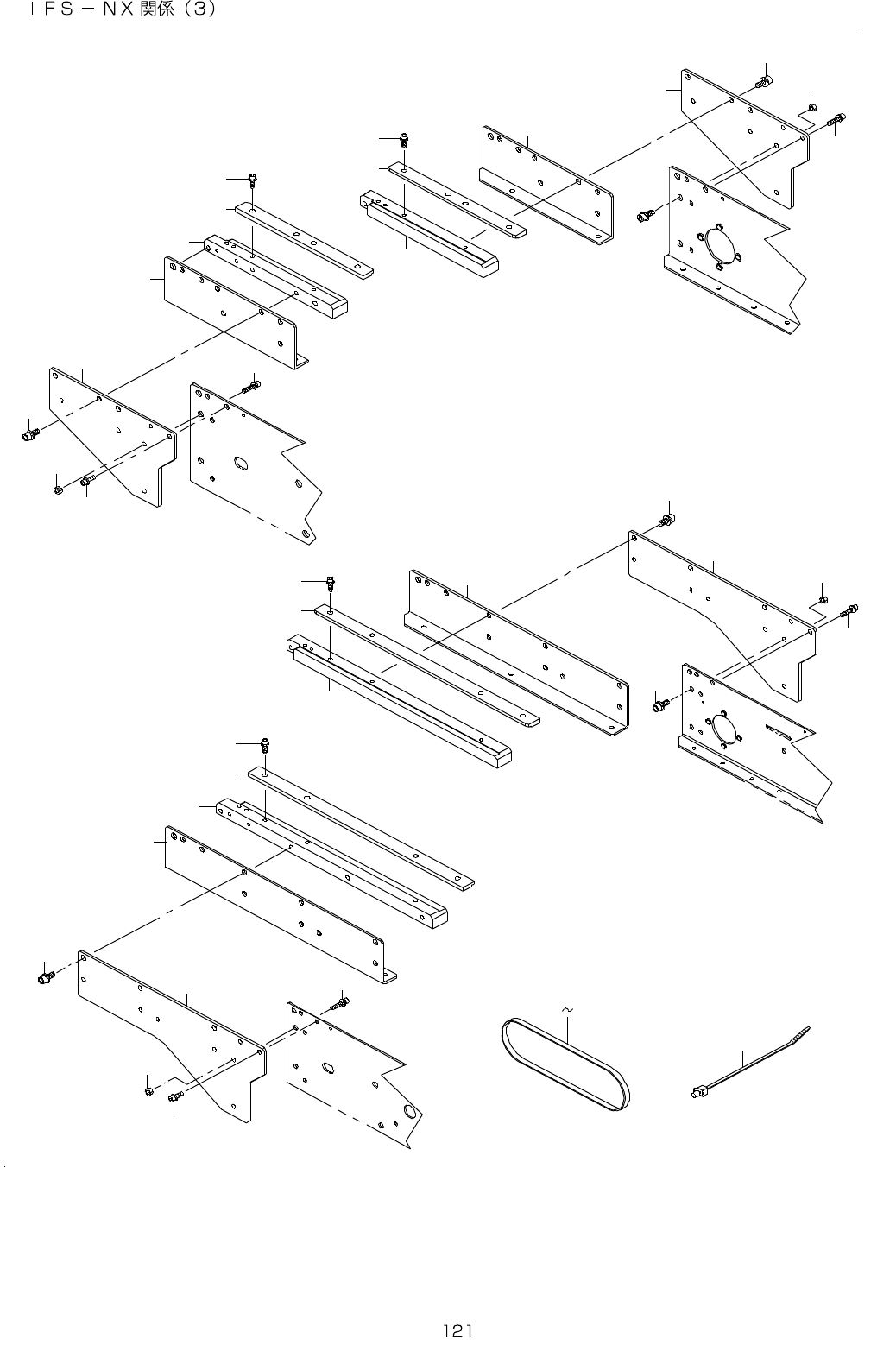

61.IFS-NX COMPONENTS(3)
1 6
1 0
9
1 0
9
8
8
7
1 1
7
6
6
5
5
4
3
1 1
1 2 1 5
1
2
1 8
1 7
2 5
1 9
2 0
2 1
2 1
2 2
2 2
7
2 5
7
8
8
2 3
2 4
2 3
2 4
- -

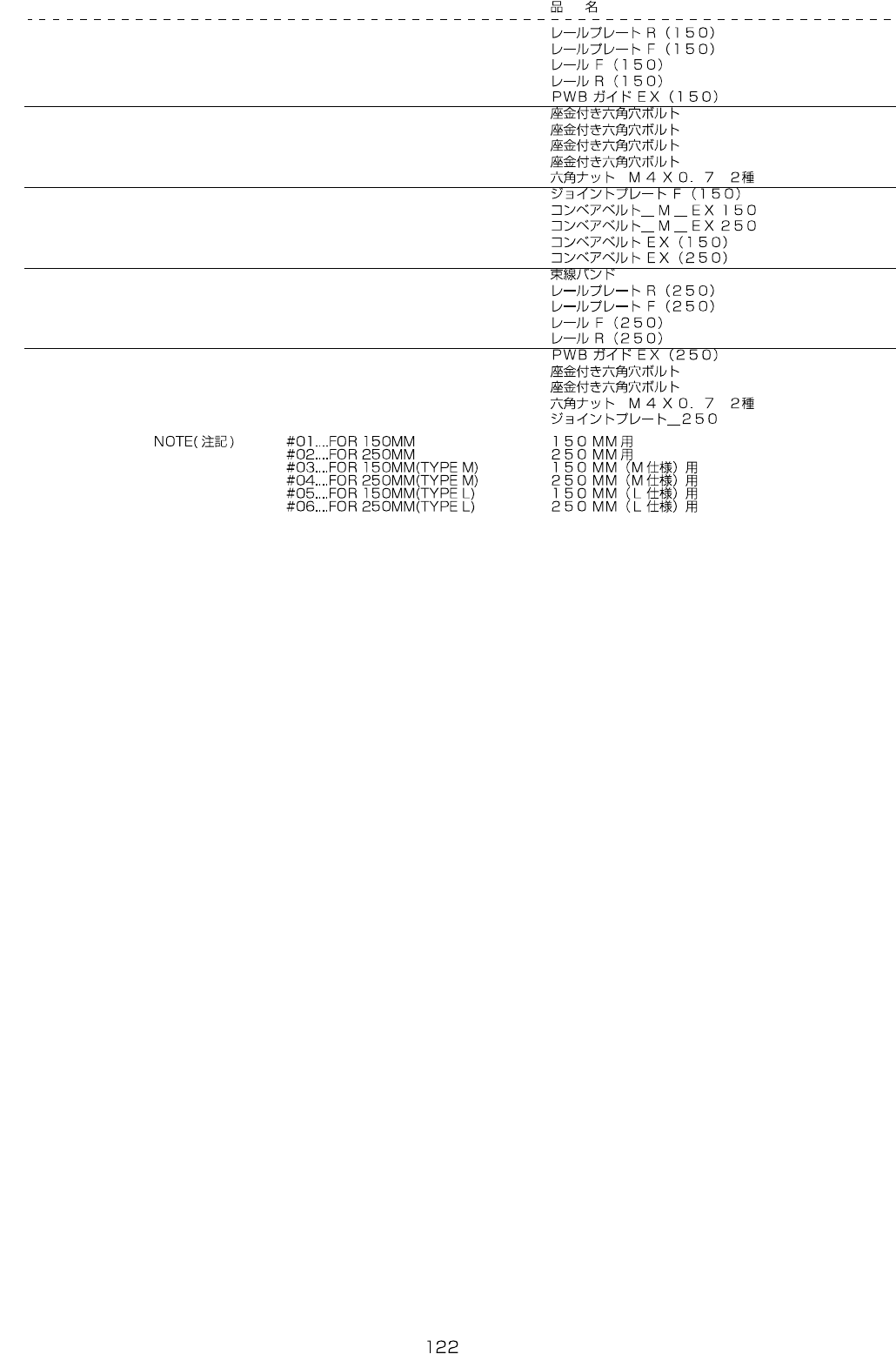

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-11054 RAIL PLATE R(150) 2
2
#01
400-11053 RAIL PLATE F(150) 2
3
#01
400-11055 RAIL F(150) 2
4
#01
400-11056 RAIL R(150) 2
5
#01
400-11057 PWB GUIDE EX(150) 4
6
#01
SL-6031092-TN SCREW 12
7 SL-6031092-TN SCREW 8
8 SL-6041292-TN SCREW 12
9
#01
SL-6041092-TN SCREW 16
10
#01
NM-6040002-SN NUT M4 16
11
#01
400-11072 JOINT PLATE F(150) 4
12
#03
401-14731 CONVEYOR_BELT_M_EX150 4
13
#04
401-14732 CONVEYOR_BELT_M_EX250 4
14
#05
400-11058 CONVEYOR BELT EX(150) 4
15
#06
400-11065 CONVEYOR BELT EX(250) 4
16 HX-0044000-00 CABLE BAND 20
17
#02
400-11061 RAIL PLATE R(250) 2
18
#02
400-11060 RAIL PLATE F(250) 2
19
#02
400-11062 RAIL F(250) 2
20
#02
400-11063 RAIL R(250) 2
21
#02
400-11064 PWB GUIDE EX(250) 4
22
#02
SL-6031092-TN SCREW 16
23
#02
SL-6041092-TN SCREW 24
24
#02
NM-6040002-SN NUT M4 24
25
#02
401-40931 JOINT_PLATE_250 4
