KE-3010A_KE-3020VA_KE-3020VRA-Rev06 - 第13页
- - REF.NO NOT E PART NO D E S C R I P T I O N Q t y 1 401 - 47582 V ACU UM _PUMP_ASM 1 2 401 - 27530 V ACU UM _PUMP ( 1) 3 400 - 38381 S T E P SCREW ( 4) 4 S L- 604064 2 - T N B OL T ( 2) 5 P X -0553 0 20 - 0 0 S IL E…
- -

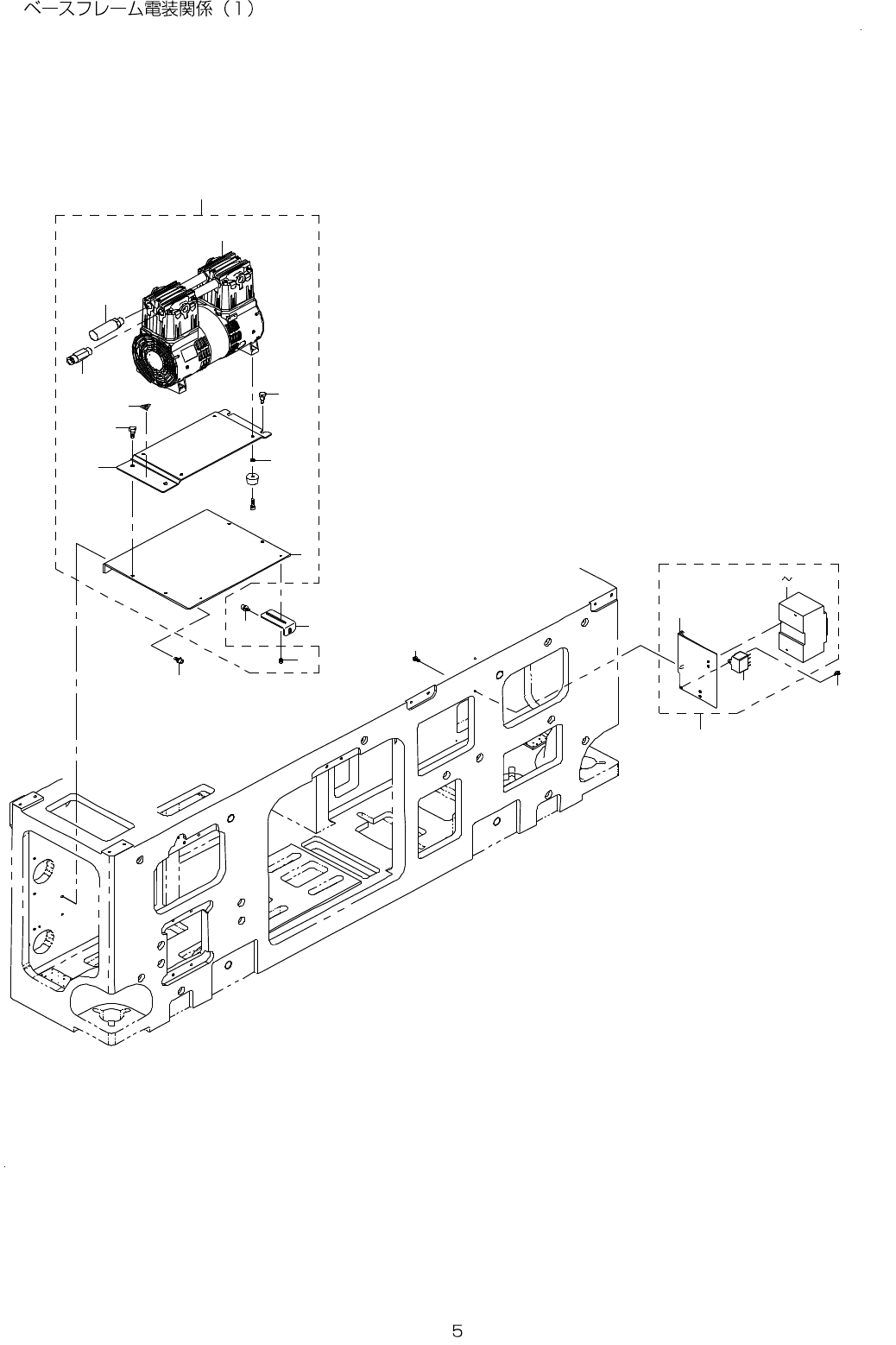

3. BASE FRAME ELECTRIC APPARATUS COMPONENTS(1)
9
4
1 2
8
1 1
1 2
7
3
1 0
1
6
5
3
2
1 3
1 5
1 7 1 9
1 6
1 4
2 0
- -

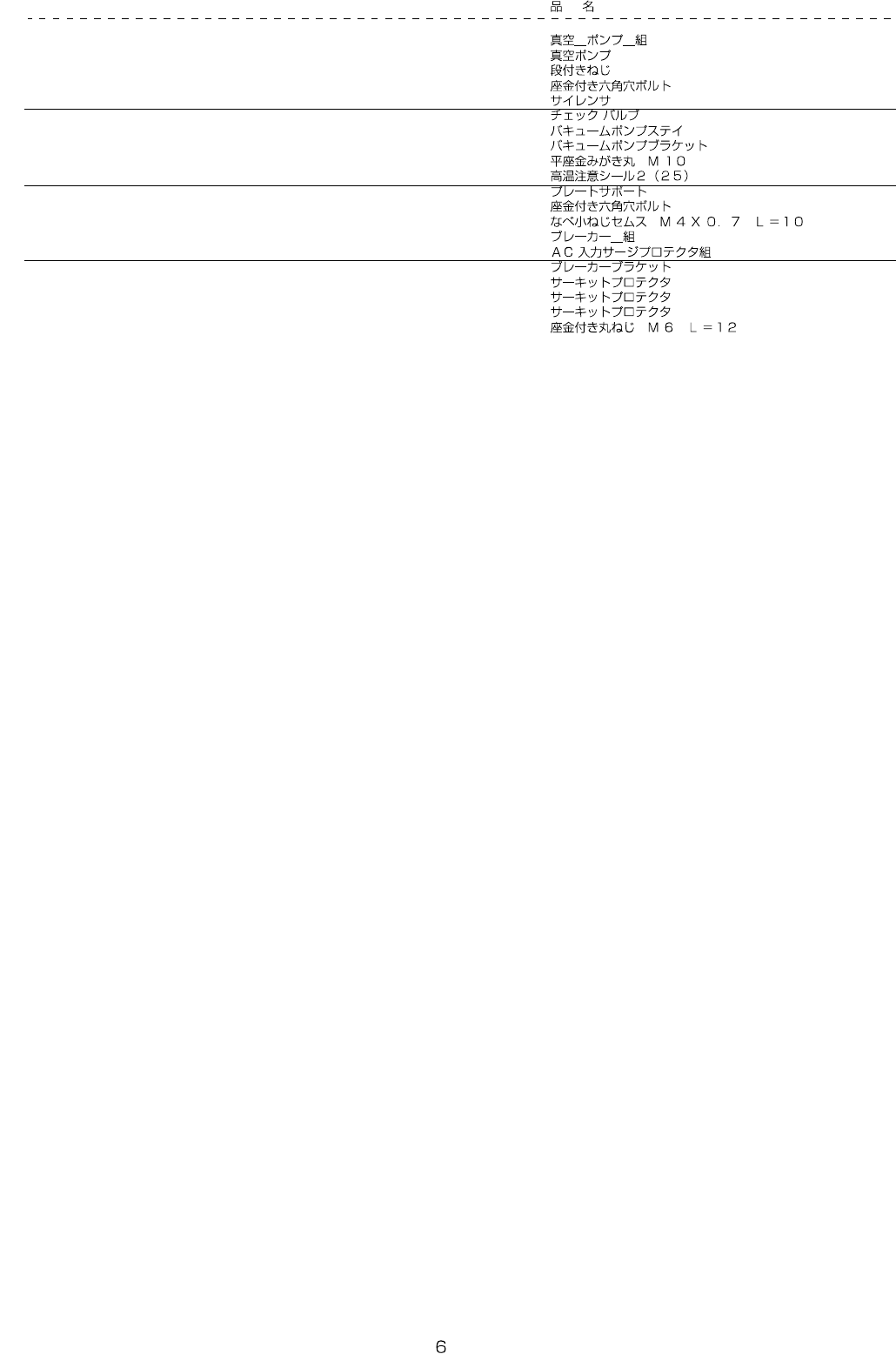

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-47582 VACUUM_PUMP_ASM 1
2 401-27530 VACUUM_PUMP (1)
3 400-38381 STEP SCREW (4)
4 SL-6040642-TN BOLT (2)
5 PX-0553020-00 SILENCER (1)
6 PV-0253010-00 CHECK VALVE (1)
7 401-47525 VP_STAY (1)
8 401-47524 VACUUM_PUMP_BR (1)
9 WP-1052001-SC WASHER 10 (4)
10 CM-3003000-02 LABEL2 (25) (1)
11 401-47523 PLATE_SUPPORT 2
12 SL-6061492-TN BOLT 4
13 SL-4041091-SC SCREW M4 L=10 1
14 401-47583 BREAKER_ASM 1
15 401-29262 AC INPUT SURGE PROTECTOR ASM (1)
16 401-47526 BREAKER_BR (1)
17 HA-0063300-00 CIRCUIT PROTECTOR (1)
18 HA-0064400-00 CIRCUIT PROTECTOR (1)
19 HA-0063400-10 CIRCUIT PROTECTOR (1)
20 SL-3061232-TN SCREW 2
- -
4. BASE FRAME ELECTRIC APPARATUS COMPONENTS(2)
1 4
4 1
3 1
1 2
1 8
1 7
6
7
5
4 4
4 3
3 9
4 0
1 4
1 6
1 5
1 0
1 3
1 1
3 2 3 8
8 9
5 2 5 4
5 7
5 9
5 8
6 0
5 1 5 5
6 7 6 8
4 6 4 7
4 7 4 8 6 9
5 6
6 4 6 5
6 4 6 5
5 6
5 6 4 9 5 06 1 6 6
6 2 6 3
4 5
2 5 3 0
2 1 2 2
1 9 2 0
2 1 2 2
2 3 2 4
4 2
1 3
