- - 62. PLACEMENT MONITOR COMPO NENTS 1 3 1 2 1 0 1 4 1 1 1 2 1 5 1 6 2 5 2 9 3 1 2 7 6 7 8 1 3 2 4 4 5 1 7 9 2 3 2 3 2 0 3 8 3 5 3 7 1 9 2 1 2 2 2 2 3 0 2 8 3 2 3 3 3 4 4 6 4 0 2 6 2 6 1 8 4 5 4 2 4 3 4 4 5 9 6 0 6 1 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-11054 RAIL PLATE R(150) 2
2
#01
400-11053 RAIL PLATE F(150) 2
3
#01
400-11055 RAIL F(150) 2
4
#01
400-11056 RAIL R(150) 2
5
#01
400-11057 PWB GUIDE EX(150) 4
6
#01
SL-6031092-TN SCREW 12
7 SL-6031092-TN SCREW 8
8 SL-6041292-TN SCREW 12
9
#01
SL-6041092-TN SCREW 16
10
#01
NM-6040002-SN NUT M4 16
11
#01
400-11072 JOINT PLATE F(150) 4
12
#03
401-14731 CONVEYOR_BELT_M_EX150 4
13
#04
401-14732 CONVEYOR_BELT_M_EX250 4
14
#05
400-11058 CONVEYOR BELT EX(150) 4
15
#06
400-11065 CONVEYOR BELT EX(250) 4
16 HX-0044000-00 CABLE BAND 20
17
#02
400-11061 RAIL PLATE R(250) 2
18
#02
400-11060 RAIL PLATE F(250) 2
19
#02
400-11062 RAIL F(250) 2
20
#02
400-11063 RAIL R(250) 2
21
#02
400-11064 PWB GUIDE EX(250) 4
22
#02
SL-6031092-TN SCREW 16
23
#02
SL-6041092-TN SCREW 24
24
#02
NM-6040002-SN NUT M4 24
25
#02
401-40931 JOINT_PLATE_250 4
- -
62.PLACEMENT MONITOR COMPONENTS
1 3
1 2
1 0
1 4
1 1
1 2
1 5
1 6
2 5
2 9
3 1
2 7
6 7
8
1 3
2 4
4 5
1 7
9
2 3
2 3
2 0
3 8
3 5 3 7
1 9
2 1
2 2
2 2
3 0
2 8
3 2
3 3 3 4
4 6
4 0
2 6
2 6
1 8
4 5
4 2
4 3
4 4
5 9 6 0
6 1
4 7
5 0
5 1
4 8
4 9
4 9
4 8
4 1
5 7
5 5
5 4
5 5
5 4
5 3
5 6
5 8
5 2
3 9
- -

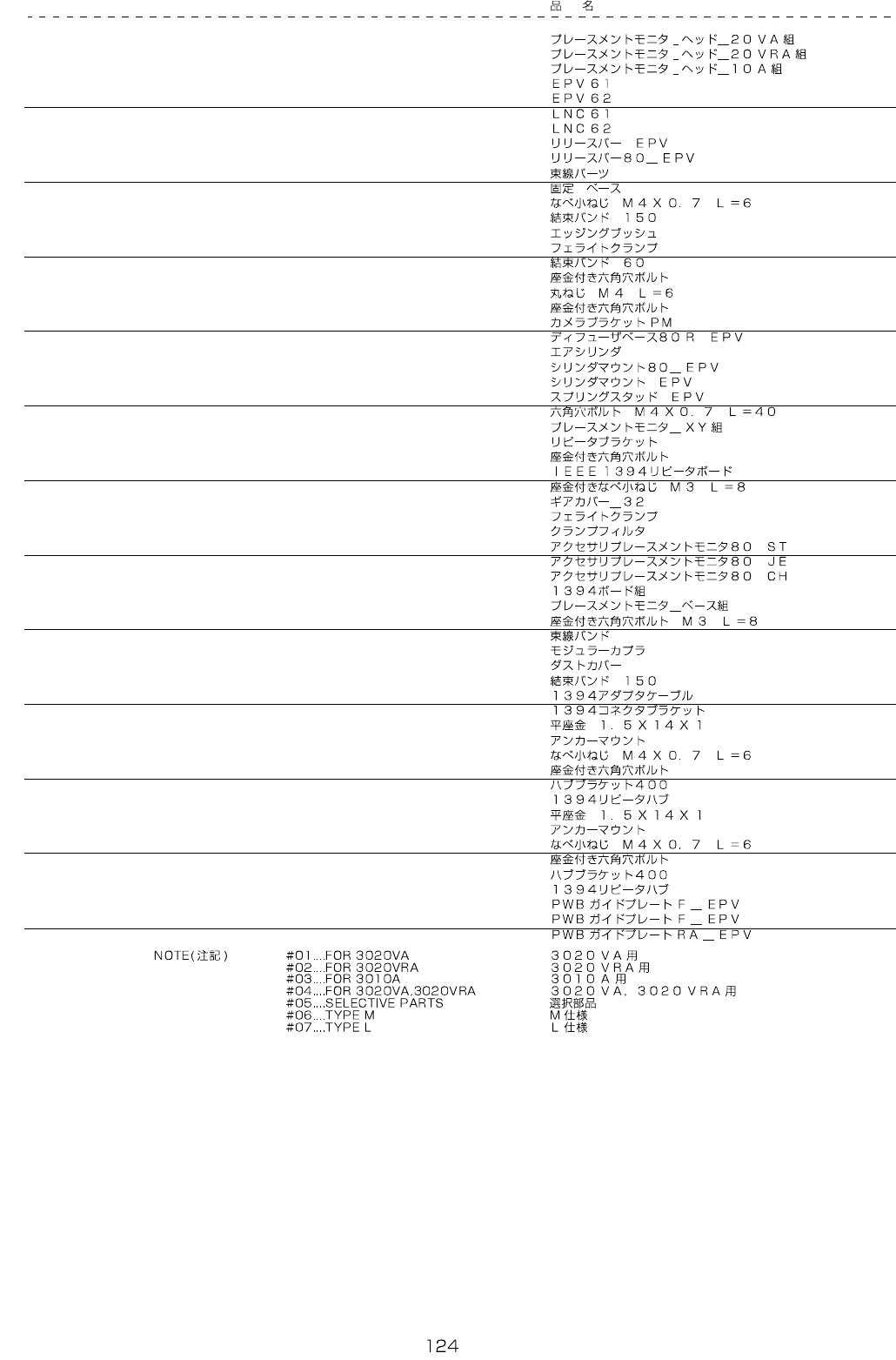

REF .NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
401-47048 P LACEMENT _MONIT OR_HEA D_20VA_ASSY 1
2
#02
401-47049 P LACEMENT _MONIT OR_HEA D_20VRA_ASSY 1
3
#03
401-47050 P LACEMENT _MONIT OR_HEA D_10A_ASSY 1
4
#03
400-89197 E PV61 (1 )
5 #04 401-02158 EPV62 (1 )
6
#03
400-89198 LNC61 (1 )
7
#04
401-05810 LNC62 (1 )
8
#03
400-89203 RELE ASE BAR EPV (1 )
9 #04 401-02177 RE LEASE_BAR_80_EPV (1 )
10 HX-0034400-00 HARNESS PARTS (4 )
11 HX-0029400-00 FIXED BAS E (2 )
12 SM-4040601-SC SCREW M4X0.7 L=6 (6 )
13 EA-9500B02-00 CABLE BAND 150 (6 )
14 HX-0009600-0A EDGING BUSH (0.18 )
15 HN-0021000-00 FERRITE CLAMP (6 )
16 EA-9500B00-00 CLIP CV-70S (8 )
17
#03
SL-6043592-TN S CREW (1 )
18 SM-3040652-TN SCREW M4 L=6 (1 )
19 SL-6041492-TN SCREW (1 )
20 401-05249 CAMERA B RACKET PM (1 )
21
#02
401-02178 DIFFUSER BA SE 80R EPV (1 )
22 #04 401-02181 AIR CYLINDER (2 )
23
#04
401-02176 CYLINDER MOUNT 80 EPV (2 )
24
#03
400-89202 CYLINDER MOUNT E PV (1 )
25
#03
400-89201 S P STUD EPV (1 )
26
#04
SM-6044002-TN S CREW M4X0.7 L=40 (4 )
27 401-23550 PLACEMENT_MONITOR_XY _ASSY 1
28 400-46586 REPEAT ER BRACKET (1 )
29 SL-6041092-TN SCREW (4 )
30 400-48078 IE EE1394 RE PEATER BOARD (1 )
31 SL-4030881-SC SCREW M3 L=8 (2 )
32 400-91609 GEA R_COVE_32 (4 )
33 HN-0021000-00 FERRITE CLAMP (4 )
34 HN-0014900-0A CLAM P FILTER (4 )
35
#05
401-05298 A CCESSARY PLACEMENT MONITOR 80 ST 1
36
#05
401-05299 A CCESSARY PLACEMENT MONITOR 80 JE 1
37
#05
401-05300 A CCESSARY PLACEMENT MONITOR 80 CH 1
38 401-03223 1394 BOARD ASM (1 )
39 401-23553 PLACEMENT_MONITOR_BA SE_ASSY 1
40 SL-6030892-TN SCREW M3 L=8 (2 )
41 HX-0006500-0A CABLE CLIP (1 )
42 HK-0651200-80 MODULAR KA PLA (1 )
43 HX-0066000-00 DUS T COVER (1 )
44
#04
EA-9500B02-00 CA BLE BAND 150 (6 )
45 401-02157 1394 ADAP TER CABLE (1 )
46 401-21070 1394_CONN_BR (1 )
47
#04
WP-0501046-SC WA SHER 5 X 14 X 1 (2 )
48
#04
HX-0045900-00 ANCHOR M OUNT (2 )
49
#04
SM-4040601-SC S CREW M4X0.7 L=6 (2 )
50
#04
SL-6041092-TN S CREW (2 )
51
#04
401-41916 HUB B RACKET 400 (1 )
52 #04 401-41912 1394 REPE ATER HUB (1 )
53
#03
WP-0501046-SC WA SHER 5 X 14 X 1 (2 )
54
#03
HX-0045900-00 ANCHOR MOUNT (2 )
55
#03
SM-4040601-SC S CREW M4X0.7 L=6 (2 )
56
#03
SL-6041092-TN S CREW (2 )
57
#03
401-41916 HUB B RACKET 400 (1 )
58
#03
401-41912 1394 REPE ATER HUB (1 )
59
#07
401-22128 P WB GUIDE PLATE F EPV 4
60
#06
401-22128 P WB GUIDE PLATE F EPV 2
61
#06
401-22129 P WB GUIDE PLATE RA EPV 4
