- - REF.NO N OTE PART NO D E S C R I P T I O N Qty 1 4 0 1-11734 EL EC BANK RELAY WIRE AS M 2 2 SL -4 04089 1 -SC SCREW M 4 L= 8 4 3 NM -3 034000-SF F L ANGE N UT M 3 4 4 4 0 1-60009 CO NNECTOR_COVER_M E 2 5 4 0 0-8175…
- -
67.E FIXED BANK UNIT COMPONENTS(2)
1
2
1
2
5
6
6
3
3
5
7
3 2
8
3 1
4
3 0
3 3
3 4
3 0
3 1
4
8
7
3 2
3 3
3 4
2 3
2 7
2 6
2 5
2 4
2 8
1 7
2 1
2 0
2 2
1 8
1 9
1 6
1 5
1 9
2 8
2 4
2 5
2 1
2 7
2 6
2 3
1 7
1 3
1 1 2 9
1 4
1 4
2 1
1 7
1 8
2 2
2 0
2 0
1 8
1 9
2 2
2 3
2 4
2 5
2 8
2 6
2 7
1 4
1 4
1 2 2 9
1 3
9 1 0
2 8
2 3
2 6
2 7
2 5
2 4
2 0
2 2
1 8
2 1
1 9
1 7
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-11734 ELEC BANK RELAY WIRE ASM 2
2 SL-4040891-SC SCREW M4 L=8 4
3 NM-3034000-SF FLANGE NUT M3 4
4 401-60009 CONNECTOR_COVER_ME 2
5 400-81751 B_COVER_SCREW 8
6 400-84938 E_BANK_CON_NOTICE_LABEL 2
7 401-47428 HOD_COVER 2
8 SL-4030691-SC SCREW M3 L=6 4
9
#02
401-60137 FEEDER_SENS_ASM_20A_ME 1
10
#01
401-60136 FEEDER_SENS_ASM_10A_ME 1
11
#02
401-60011 SENSOR_BR_F_ME (1)
12
#02
401-60013 SENSOR_BR_FR_ME (1)
13 401-60012 SENSOR_BR_R_ME (2)
14 SL-6051292-TN SCREW M5 L=12 (8)
15
#02
HX-0029400-00 FIXED BASE (2)
16
#02
SM-4040601-SC SCREW M4X0.7 L=6 (2)
17 401-60006 FEEDER SENSOR RECEIVER ASM (4)
18 401-29057 SEPARATE SENSOR RECEIVER ASM (1)
19 400-93991 S_BR_B (1)
20 400-93993 NUT_PLATE (1)
21 SL-6030892-TN SCREW M3 L=8 (2)
22 SM-6851602-TN SCREW M2.5X16 (2)
23 401-60007 FEEDER SENSOR EMISSION ASM (4)
24 401-29058 SEPARATE SENSOR EMISSION ASM (1)
25 400-93991 S_BR_B (1)
26 400-93993 NUT_PLATE (1)
27 SL-6030892-TN SCREW M3 L=8 (2)
28 SM-6851602-TN SCREW M2.5X16 (2)
29
#01
401-60011 SENSOR_BR_F_ME (2)
30 E2904-700-000 SOCKET 2
31 PJ-3010651-06 KNIFE UNION 2
32 400-93799 HOLE_PLUGS_HP18 2
33 401-47198 M_CONNECTOR_PLATE_R 2
34 SL-4030891-SC SCREW M3X8 4
- -

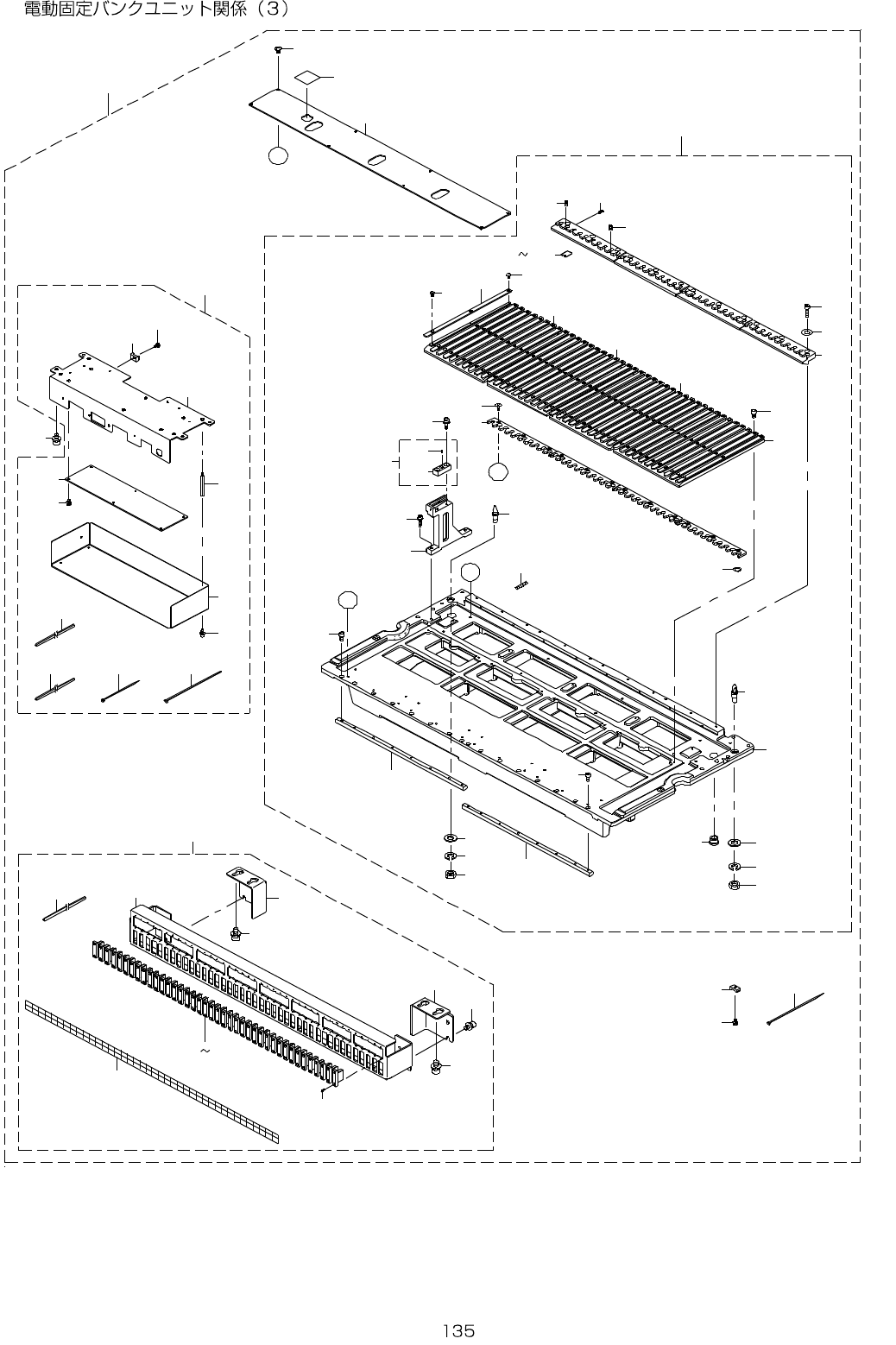

68.E FIXED BANK UNIT COMPONENTS(3)
4 5
6 0
6 1
1
5 9
5 7
4 3
4 2
4 3
5 6
4 4
4 1
5 5
4 6
4 7 5 4
5 8
6 7
7 06 9
6 8
7 2
6 3
6 6
6 5
6 4
2 9
2 9
2
1 1
1 4
1 3
1 2
2 8
3 2
A
3 0
B
3 4
3 3
3 1
2 9 1 9
8
9
7
6
B
5
2 7
4
2 0 2 3
2 6
2 4
2 4
1 0
1 5
1 7
1 6
1 8
8
9
7
2 5
4 0
3
7 3
3 7
3 8
A
3 9
3 5
3 5
2 7
7 1
6 2
3 6
