- - 6. B A S E FRAME ELECTRIC APPARATUS COMP O N ENTS(4) 8 1 2 3 1 3 1 6 4 5 1 2 1 1 1 0 6 7 9 1 7 3 7 2 5 2 3 2 2 2 1 2 6 3 2 1 5 2 0 3 0 1 9 3 5 3 4 2 9 2 8 2 7 2 4 2 5 1 4 3 3 2 4 3 1 1 8 3 6
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-47581 DUCT_ASSY 1
2 400-77404 DUCT 30_60_200 (7)
3 SL-4040891-SC SCREW M4 L=8 (14)
4 400-32368 DUCT 40_60_125 (3)
5 SL-4040891-SC SCREW M4 L=8 (6)
6 400-94478 DUCT 30_60_450 (3)
7 SL-4040891-SC SCREW M4 L=8 (6)
8 400-94479 DUCT 30_60_200 (4)
9 SL-4040891-SC SCREW M4 L=8 (8)
10 401-47523 PLATE_SUPPORT 2
11 SL-6061492-TN BOLT 4
12 401-47528 DRIVER_BASE 1
13 SL-6040892-TN BOLT 2
14 SD-0640246-SP HINGE SCREW D=6.35 H=2.4 4
15 SL-6040892-TN BOLT 2
16
#01
HN-0015500-00 CORE 3
17
#01
SL-6041092-TN SCREW 6
18 401-47588 Y_DRIVER_UNIT 1
19 401-47527 DRIVER_BR (2)
20 401-29654 Y AXIS DRIVER (2)
21 SL-4051691-SC SCREW M5 L=16 (6)
22 401-47589 X_DRIVER_UNIT 1
23 401-47662 X_MOTOR_DRV_PLATE (1)
24 401-29652 X AXIS DRIVER (1)
25 SL-4051691-SC SCREW M5 L=16 (3)
26 401-47663 X_MOTOR_DRV_BRACKET (1)
27 SL-6051492-TN BOLT (2)
28 SL-6041092-TN SCREW 4
- -
6. BASE FRAME ELECTRIC APPARATUS COMPONENTS(4)
8
1 2
3
1 3
1 6
4 5
1 2
1 1
1 0
6 7
9
1 7
3 7
2 5
2 3
2 2
2 1
2 6
3 2
1 5
2 0
3 0
1 9
3 5
3 4
2 9
2 8
2 7
2 4
2 5
1 4
3 3
2 4
3 1
1 8
3 6
- -

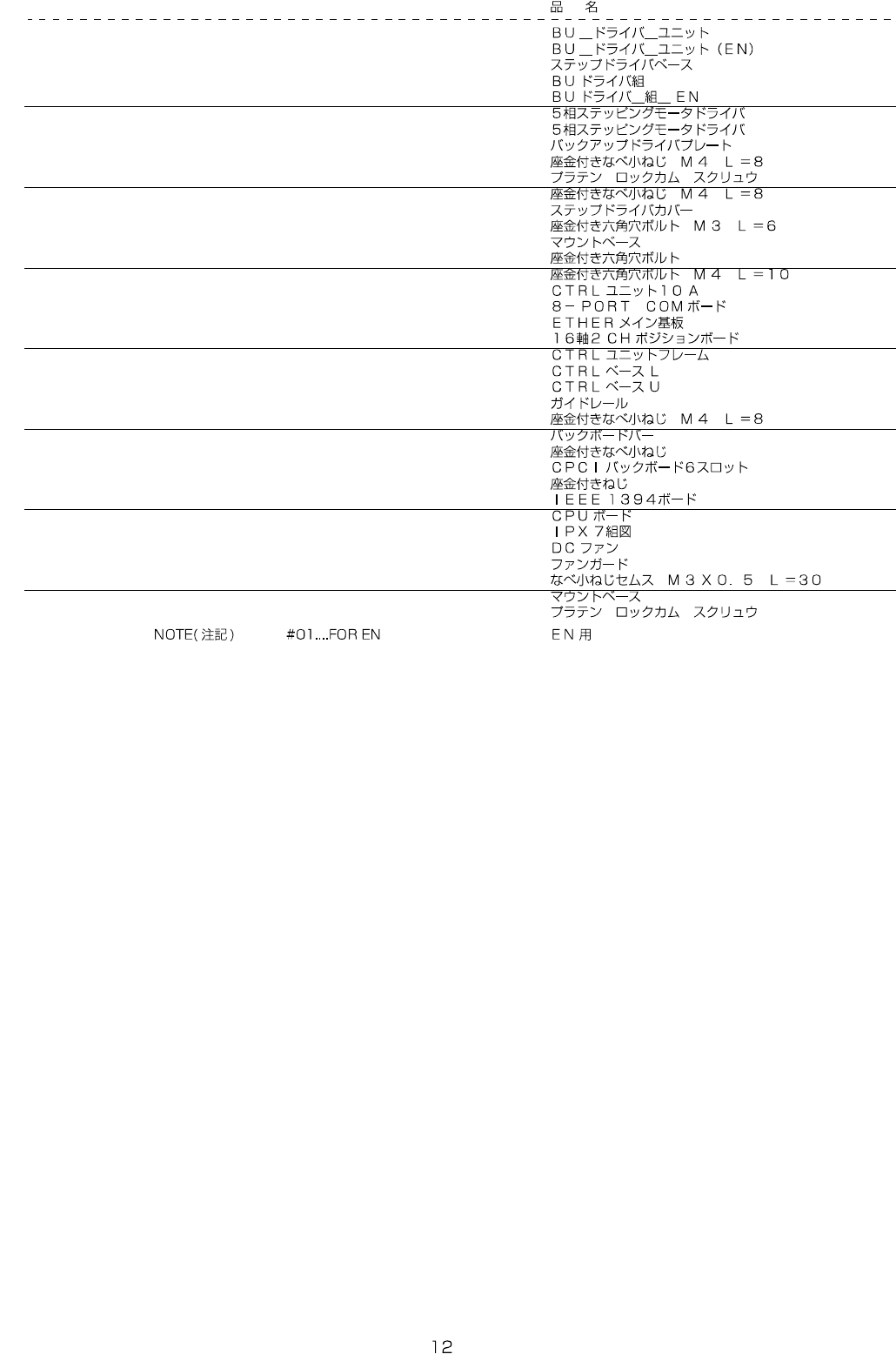

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-47620 BU_DRIVER_UNIT 1
2
#01
401-47590 BU_DRIVER_UNIT(EN) 1
3 401-47551 STEP_DRV_BASE (1)
4 401-13995 BU DRIVER ASSY (1)
5
#01
401-49708 BU DRIVER ASSY EN (1)
6 HX-0042000-00 5 PHASE STEPPING MOTOR DRIVER (1)
7
#01
HX-0068900-00 5 PHASE STEPPING MOTOR DRIVER (1)
8 400-00534 BACK UP DRIV PLATE (1)
9 SL-4040891-SC SCREW M4 L=8 (3)
10 E1038-871-000 PLATEN LOCK CAM SCREW (1)
11 SL-4040891-SC SCREW M4 L=8 (2)
12 401-47552 STEP_DRV_COVER (1)
13 SL-6030692-TN SCREW M3 L=6 (4)
14 HX-0070600-0A MOUNT BASE (3)
15 SL-6040892-TN BOLT 4
16 SL-6041092-TN SCREW M4 L=10 3
17 401-49597 CTRL UNIT 10A 1
18 401-35433 8-PORT COM BOARD (4)
19 401-49647 ETHER MAIN BOARD (1)
20 400-44540 16AXIS 2CH SERVO CONTROLLER (1)
21 401-47546 CTRL_UNIT_FRAME (1)
22 401-47545 CTRL_BASE_L (1)
23 401-47544 CTRL_BASE_U (1)
24 HX-0002600-00 GUIDE RAIL (14)
25 SL-4040891-SC SCREW M4 L=8 (8)
26 400-47087 BACK_BOAD_BAR (1)
27 SL-4031491-SC SCREW M3X14 (3)
28 401-29625 CPCI BACK BOARD 6SLOT (1)
29 SL-4851091-SC SCREW (16)
30 401-50021 IEEE1394 BOARD (1)
31 401-23242 CPU BOARD (1)
32 400-71300 IPX7 ASM (1)
33 401-33768 DC FAN (2)
34 HM-0003300-30 FAN GUARD (2)
35 SL-4033091-SC SCREW M3 L=30 (4)
36 HX-0070600-0A MOUNT BASE 4
37 E1038-871-000 PLATEN LOCK CAM SCREW 2
