- - 7. B A S E FRAME ELECTRIC APPARATUS COMP O N ENTS(5) 3 6 4 1 3 7 3 9 4 0 3 8 3 7 4 3 4 2 3 4 2 5 2 8 2 8 2 6 2 8 1 5 2 4 2 2 2 3 2 9 1 6 3 0 3 0 3 5 3 0 3 3 3 2 1 7 1 9 1 2 9 1 4 1 3 1 2 1 2 1 1 1 1 1 0 6 3 8 7 4 5…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-47620 BU_DRIVER_UNIT 1
2
#01
401-47590 BU_DRIVER_UNIT(EN) 1
3 401-47551 STEP_DRV_BASE (1)
4 401-13995 BU DRIVER ASSY (1)
5
#01
401-49708 BU DRIVER ASSY EN (1)
6 HX-0042000-00 5 PHASE STEPPING MOTOR DRIVER (1)
7
#01
HX-0068900-00 5 PHASE STEPPING MOTOR DRIVER (1)
8 400-00534 BACK UP DRIV PLATE (1)
9 SL-4040891-SC SCREW M4 L=8 (3)
10 E1038-871-000 PLATEN LOCK CAM SCREW (1)
11 SL-4040891-SC SCREW M4 L=8 (2)
12 401-47552 STEP_DRV_COVER (1)
13 SL-6030692-TN SCREW M3 L=6 (4)
14 HX-0070600-0A MOUNT BASE (3)
15 SL-6040892-TN BOLT 4
16 SL-6041092-TN SCREW M4 L=10 3
17 401-49597 CTRL UNIT 10A 1
18 401-35433 8-PORT COM BOARD (4)
19 401-49647 ETHER MAIN BOARD (1)
20 400-44540 16AXIS 2CH SERVO CONTROLLER (1)
21 401-47546 CTRL_UNIT_FRAME (1)
22 401-47545 CTRL_BASE_L (1)
23 401-47544 CTRL_BASE_U (1)
24 HX-0002600-00 GUIDE RAIL (14)
25 SL-4040891-SC SCREW M4 L=8 (8)
26 400-47087 BACK_BOAD_BAR (1)
27 SL-4031491-SC SCREW M3X14 (3)
28 401-29625 CPCI BACK BOARD 6SLOT (1)
29 SL-4851091-SC SCREW (16)
30 401-50021 IEEE1394 BOARD (1)
31 401-23242 CPU BOARD (1)
32 400-71300 IPX7 ASM (1)
33 401-33768 DC FAN (2)
34 HM-0003300-30 FAN GUARD (2)
35 SL-4033091-SC SCREW M3 L=30 (4)
36 HX-0070600-0A MOUNT BASE 4
37 E1038-871-000 PLATEN LOCK CAM SCREW 2
- -

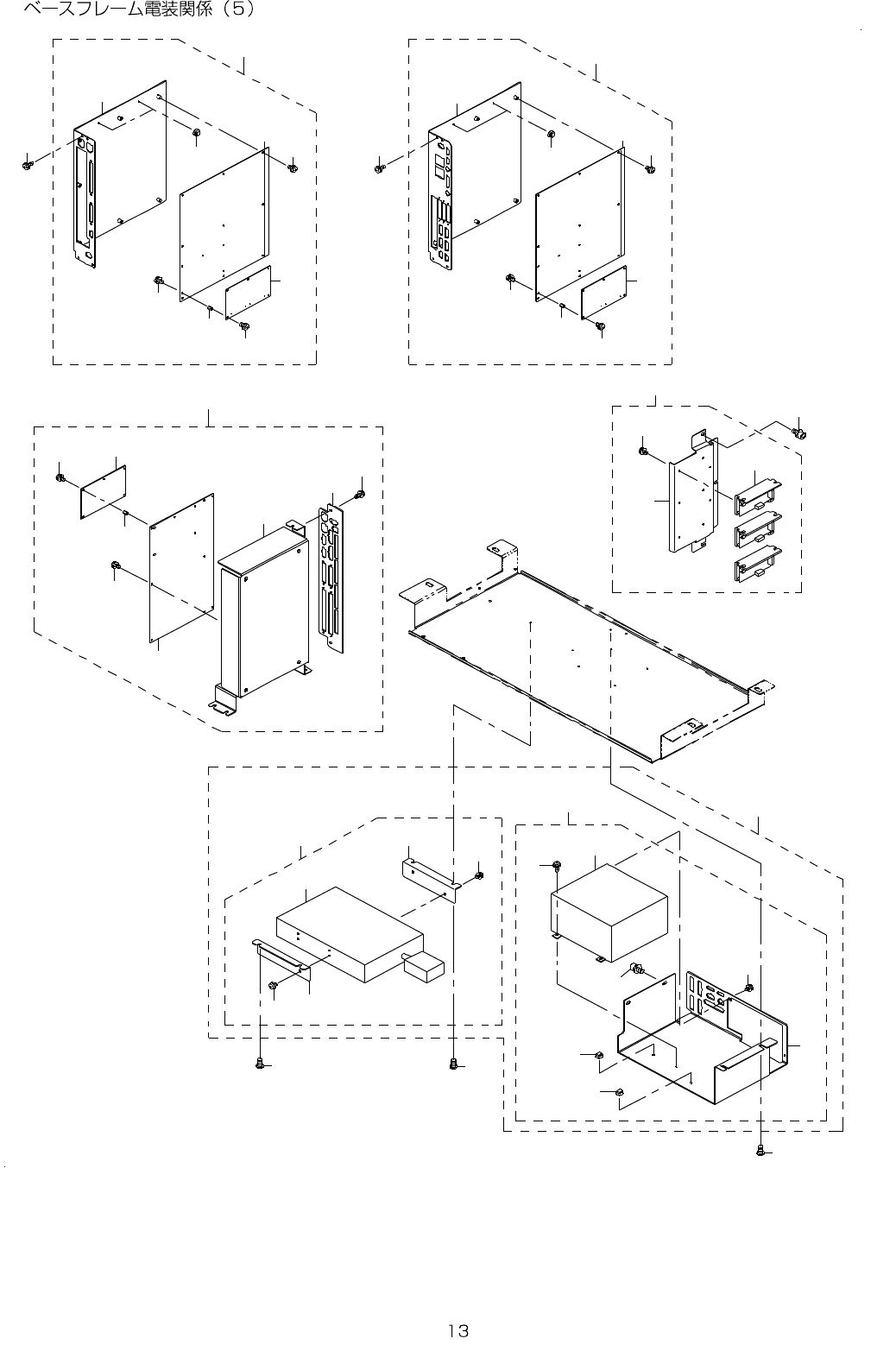

7. BASE FRAME ELECTRIC APPARATUS COMPONENTS(5)
3 6
4 1
3 7
3 9
4 0
3 8
3 7
4 3
4 2
3 4 2 5
2 8
2 8
2 6
2 8
1 5
2 4
2 2
2 3
2 9
1 6
3 0
3 0
3 5
3 0
3 3
3 2
1 7
1 9
1
2
9
1 4
1 3
1 2
1 2
1 1
1 1
1 0
6
3
8
7
4
5
1 3
7
2 0
1 8
2 1
2 7
3 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-47585 ATX_UNIT 1
2 401-47586 ATX_PSU_UNIT (1)
3 401-46346 ATX PSU (1)
4 401-47572 ATX_BR (1)
5 SL-4030581-SC COMBINATION SCREW M3 X 5 (2)
6 SL-6040892-TN BOLT (2)
7 HX-0070600-0A MOUNT BASE (2)
8 SL-4030891-SC SCREW M3X8 (2)
9 401-47587 ATX_BATTERY_UNIT (1)
10 401-46347 BATTERY (1)
11 401-47559 ATX_BATTERY_BR (2)
12 SL-4030581-SC COMBINATION SCREW M3 X 5 (8)
13 E1038-871-000 PLATEN LOCK CAM SCREW 2
14 E1038-871-000 PLATEN LOCK CAM SCREW 2
15 SL-4030891-SC SCREW M3X8 4
16 SL-4030891-SC SCREW M3X8 4
17 401-47591 STP_MOTOR_DRIVER_UNIT 1
18 401-47573 CARRY_DRV_BR (1)
19 HM-0013200-00 MOTOR DRIVER (3)
20 SL-4030691-SC SCREW M3 L=6 (6)
21 SL-6030692-TN SCREW M3 L=6 2
22 401-47598 BASE_CARRY_PCB_UNIT 1
23 401-47562 PCB_PLATE_IO (1)
24 400-71680 BASE IO PCB ASM (1)
25 400-47557 ETHER-SLAVE PCB ASM (1)
26 HX-0041800-0C SPACER (4)
27 HX-0070600-0A MOUNT BASE (3)
28 SL-4030691-SC SCREW M3 L=6 (17)
29 401-47599 XY_RELAY_PCB_UNIT 1
30 SL-4030691-SC SCREW M3 L=6 (17)
31 HX-0070600-0A MOUNT BASE (3)
32 401-47561 PCB_PLATE_S_XY (1)
33 401-06795 S-XY RELAY PCB ASM (1)
34 400-47557 ETHER-SLAVE PCB ASM (1)
35 HX-0041800-0C SPACER (4)
36 401-47617 FEEDER_PCB_UNIT 1
37 SL-4030691-SC SCREW M3 L=6 (14)
38 HX-0041800-0C SPACER (4)
39 401-47547 FEEDER_PCB_PANEL (1)
40 SL-4030891-SC SCREW M3X8 (2)
41 401-47560 FEEDER_PCB_BOX (1)
42 400-47560 FEEDER PCB ASM (1)
43 400-47557 ETHER-SLAVE PCB ASM (1)
