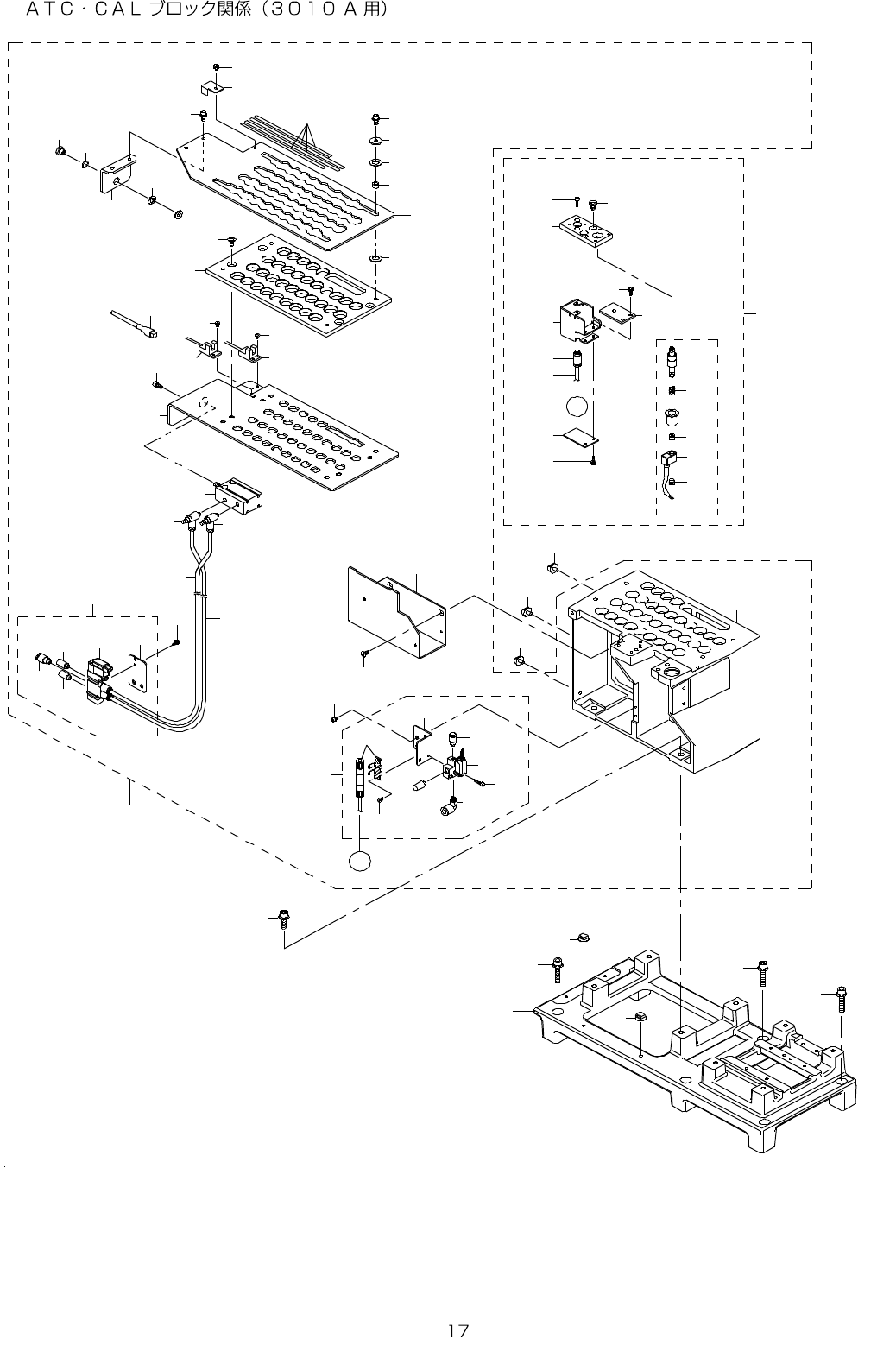

9. ATC & CAL BLOCK COMPONENTS(FOR 3010A)
5 1
5 5
5 0
6 1
6 3
A
5 9
6 7
5 2
5 3
5 4
5 7
5 8
6 6
6 5
6 4
6 0
6 2
4 9
4 6
5
1 8
4 8
1 9
4 3
1 5
4 7
4
4 5
4 4
4 2
4 9
4 1
4 1
3 9
4 0
3 1
3 2
3 4
3 3
2 0
1 9
1 7
1 4
1 6
3 8
3 7
3 6
3 5
3 0
2 1
5 6
2 7
2 8
8
2 6
A
2 4
2 2
2 3
2 5
1 1
1 1
1 2
1 0
6
1 3
9
4 3
1
3
3
3
2
2
2
7
2
2
2 9
- -

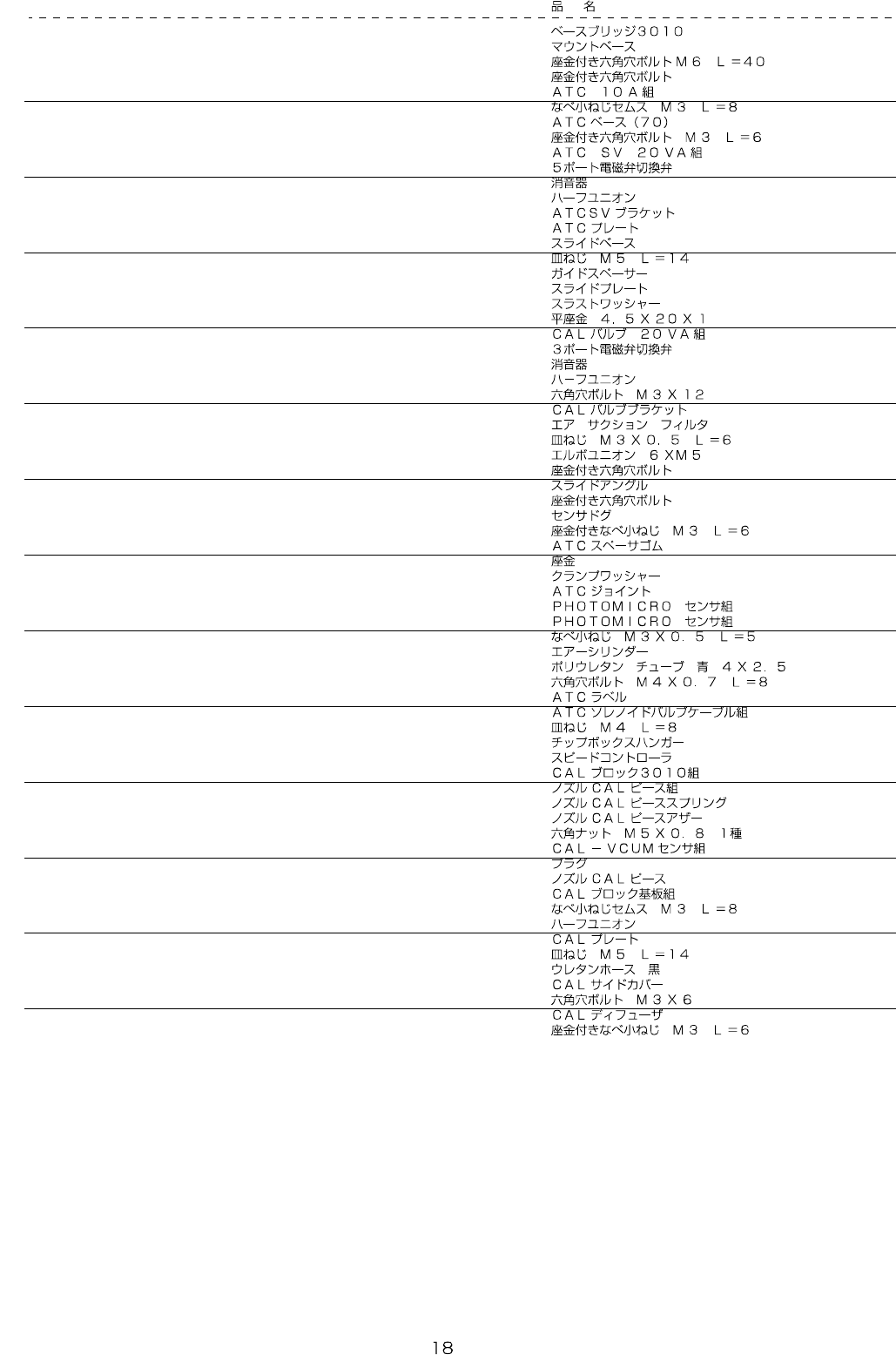

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-08815 BASE BRIDGE 3010 1
2 HX-0070600-0A MOUNT BASE 5
3 SL-6064092-TN SCREW 6
4 SL-6062092-TN SCREW M6 L=20 4
5 401-46940 ATC_10A_ASSY 1
6 SL-4030891-SC SCREW M3X8 (1)
7 400-45971 ATC BASE(70) (1)
8 SL-6030692-TN SCREW M3 L=6 (2)
9 401-46937 ATC_SV_20VA_ASM (1)
10 PV-1505380-00 5-PORT SOLENOID VALVE (1)
11 PX-0505010-00 SILENCER (2)
12 PJ-2100061-00 HALF UNION (1)
13 401-28203 ATC_SV_BRKT (1)
14 400-45973 ATC PLATE (1)
15 400-45974 SLIDE BASE (1)
16 SM-1051452-TN PLATE SCREW M5 L=14 (4)
17 400-45975 GUIDE SPACER (4)
18 400-45976 SLIDE PLATE (1)
19 E3404-700-000 THRUST WASHER (8)
20 WP-0451016-SP WASHER 4.5X20X1 (4)
21 401-46938 CAL_VALVE_20VA_ASM (1)
22 PV-1305410-00 3-PORT SOLENOID VALVE (1)
23 PX-0505010-00 SILENCER (1)
24 PJ-3010405-05 HALF UNION (1)
25 SM-6031202-TN SCREW M3X12 (2)
26 401-46942 CAL_VALVE_BRKT (1)
27 PF-0100030-A0 AIR SUCTION FILTER (1)
28 SM-1030601-SC SCREW M3 L=6 (2)
29 PJ-3040605-02 ELBOW UNION 6XM5 (1)
30 SL-6041092-TN SCREW (4)
31 400-45977 SLIDER ANGLE (1)
32 SL-6041092-TN SCREW (2)
33 400-45978 SENSOR DOG (1)
34 SL-4030691-SC SCREW M3 L=6 (1)
35 400-01286 ATC SPACER RUBBER (1)
36 B2107-816-000 WASHER (1)
37 GLA-02335000 CLAMP WASHER (1)
38 E3528-729-000 ATC JOINT (1)
39 401-29062 PHOTOMICRO SENSOR ASM (1)
40 401-29062 PHOTOMICRO SENSOR ASM (1)
41 SM-4030501-SC SCREW M3X0.5 L=5 (4)
42 400-42709 AIR CYLINDER (1)
43 BT-0400251-EA URETHANE TUBE BLUE 4X2.5 (0.8)
44 SM-6040802-TN SCREW (2)
45 400-45983 ATC LABEL (1)
46 400-92510 ATC SV CABLE ASM (1)
47 SM-1040852-TP DISH SCREW (2)
48 400-45980 CHIP BOX HANGER (1)
49 PC-0105080-00 SPEED CONTROLLER (2)
50 401-32366 CAL_BLOCK_3010_ASM 1
51 401-32365 NOZZLE CAL PIECE ASM (1)
52 L203E-121-000 NOZZLE CAL PIECE OUTER SP (1)
53 L203E-021-000 NOZZLE CAL PIECE OUTER (1)
54 NM-6050001-SC NUT M5X0.8 TYPE1 (1)
55 401-22811 CAL-VCUM SENS ASM (1)
56 PJ-0205000-02 PLUG (1)
57 400-45979 NOZZLE CAL PIECE (1)
58 400-07376 CALBLOCK PCB ASM (1)
59 SL-4030891-SC SCREW M3X8 (2)
60 PJ-3010405-05 HALF UNION (1)
61 400-45994 CAL PLATE (1)
62 SM-1051452-TN PLATE SCREW M5 L=14 (2)
63 BT-0400251-EB URETHANE HOSE, BLACK (0.3)
64 L202E-521-000 CAL SIDE COVER (1)
65 SM-6030602-TN SCREW M3X6 (2)
66 L202E-621-000 CAL DIFFUSER (1)
67 SL-4030691-SC SCREW M3 L=6 (2)
- -

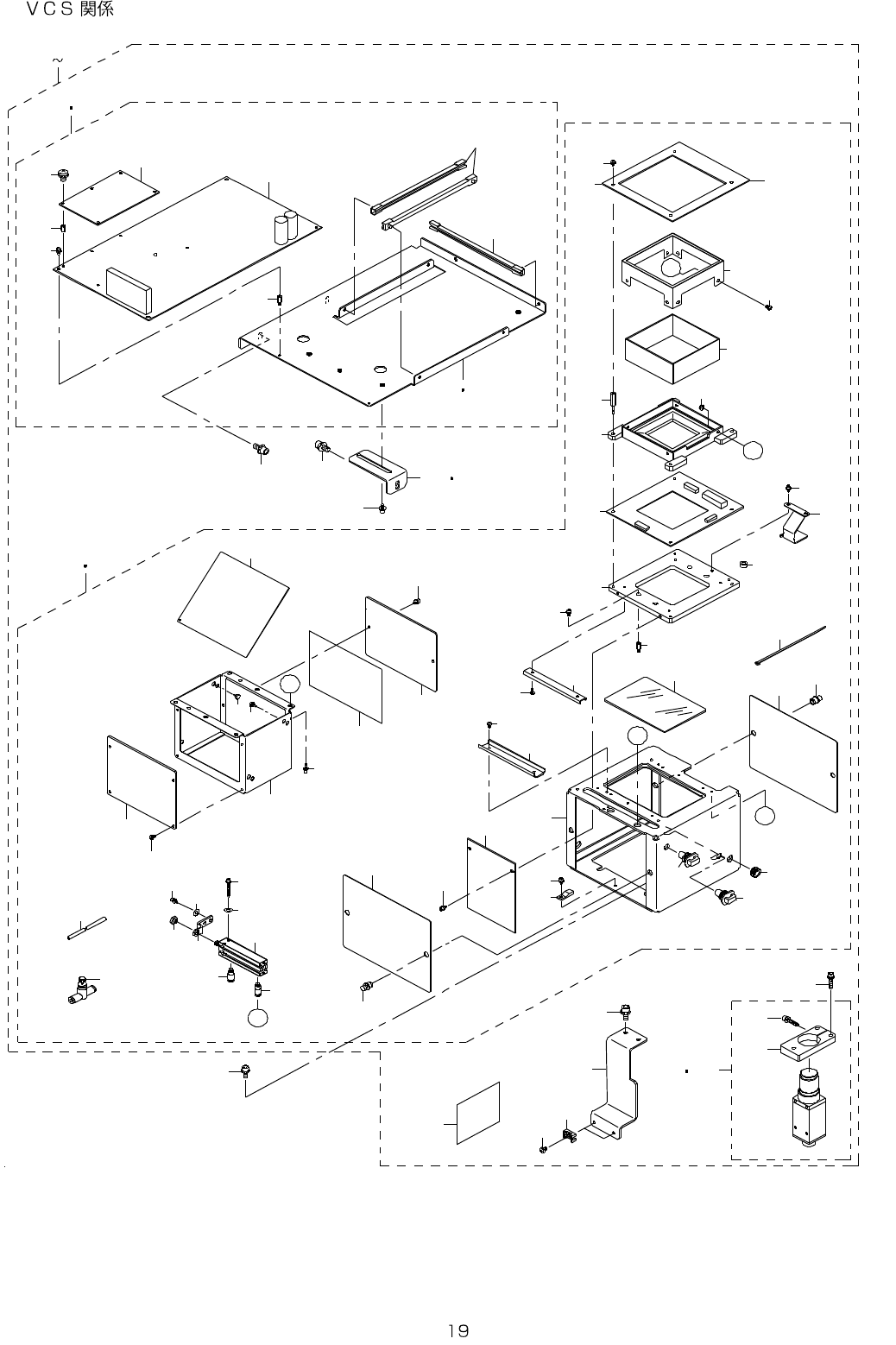

10.VCS COMPONENTS
5 9
5 8
7 8
6 1
6 0
6 2
5 3 5 4
2 4
3 3
5 6
5 5
5 7
3 0
4 0
5 1
1 3
1 2
1 1
8
5 0
4 9
3 6
3 3
3 4
4 8
4 7
4 1
4 2
4 4
4 6
4 5
4 3
3 9
3 8
4 0
3 7
C
C
3 5
3 5
3 6
1 3
4 5
1 3
1 9
6
1 0
B
B
2 8
5 2
2 6
2 7
2 0
2 1
2 5
A
A
2 3
2 2
1 8
1 7
1 5
1 6
1 4
5 1
3 2
3 1
2 9
7
9
9
6 3 6 4
7 0
7 0
6 9
6 7
7 5
7 1
6 8
6 5 6 6
7 6 7 7
7 4
7 4
7 2
7 3
