- - 10.V C S CO M P O N EN TS 5 9 5 8 7 8 6 1 6 0 6 2 5 3 5 4 2 4 3 3 5 6 5 5 5 7 3 0 4 0 5 1 1 3 1 2 1 1 8 5 0 4 9 3 6 3 3 3 4 4 8 4 7 4 1 4 2 4 4 4 6 4 5 4 3 3 9 3 8 4 0 3 7 C C 3 5 3 5 3 6 1 3 4 5 1 3 1 9 6 1 0 B B …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-08815 BASE BRIDGE 3010 1
2 HX-0070600-0A MOUNT BASE 5
3 SL-6064092-TN SCREW 6
4 SL-6062092-TN SCREW M6 L=20 4
5 401-46940 ATC_10A_ASSY 1
6 SL-4030891-SC SCREW M3X8 (1)
7 400-45971 ATC BASE(70) (1)
8 SL-6030692-TN SCREW M3 L=6 (2)
9 401-46937 ATC_SV_20VA_ASM (1)
10 PV-1505380-00 5-PORT SOLENOID VALVE (1)
11 PX-0505010-00 SILENCER (2)
12 PJ-2100061-00 HALF UNION (1)
13 401-28203 ATC_SV_BRKT (1)
14 400-45973 ATC PLATE (1)
15 400-45974 SLIDE BASE (1)
16 SM-1051452-TN PLATE SCREW M5 L=14 (4)
17 400-45975 GUIDE SPACER (4)
18 400-45976 SLIDE PLATE (1)
19 E3404-700-000 THRUST WASHER (8)
20 WP-0451016-SP WASHER 4.5X20X1 (4)
21 401-46938 CAL_VALVE_20VA_ASM (1)
22 PV-1305410-00 3-PORT SOLENOID VALVE (1)
23 PX-0505010-00 SILENCER (1)
24 PJ-3010405-05 HALF UNION (1)
25 SM-6031202-TN SCREW M3X12 (2)
26 401-46942 CAL_VALVE_BRKT (1)
27 PF-0100030-A0 AIR SUCTION FILTER (1)
28 SM-1030601-SC SCREW M3 L=6 (2)
29 PJ-3040605-02 ELBOW UNION 6XM5 (1)
30 SL-6041092-TN SCREW (4)
31 400-45977 SLIDER ANGLE (1)
32 SL-6041092-TN SCREW (2)
33 400-45978 SENSOR DOG (1)
34 SL-4030691-SC SCREW M3 L=6 (1)
35 400-01286 ATC SPACER RUBBER (1)
36 B2107-816-000 WASHER (1)
37 GLA-02335000 CLAMP WASHER (1)
38 E3528-729-000 ATC JOINT (1)
39 401-29062 PHOTOMICRO SENSOR ASM (1)
40 401-29062 PHOTOMICRO SENSOR ASM (1)
41 SM-4030501-SC SCREW M3X0.5 L=5 (4)
42 400-42709 AIR CYLINDER (1)
43 BT-0400251-EA URETHANE TUBE BLUE 4X2.5 (0.8)
44 SM-6040802-TN SCREW (2)
45 400-45983 ATC LABEL (1)
46 400-92510 ATC SV CABLE ASM (1)
47 SM-1040852-TP DISH SCREW (2)
48 400-45980 CHIP BOX HANGER (1)
49 PC-0105080-00 SPEED CONTROLLER (2)
50 401-32366 CAL_BLOCK_3010_ASM 1
51 401-32365 NOZZLE CAL PIECE ASM (1)
52 L203E-121-000 NOZZLE CAL PIECE OUTER SP (1)
53 L203E-021-000 NOZZLE CAL PIECE OUTER (1)
54 NM-6050001-SC NUT M5X0.8 TYPE1 (1)
55 401-22811 CAL-VCUM SENS ASM (1)
56 PJ-0205000-02 PLUG (1)
57 400-45979 NOZZLE CAL PIECE (1)
58 400-07376 CALBLOCK PCB ASM (1)
59 SL-4030891-SC SCREW M3X8 (2)
60 PJ-3010405-05 HALF UNION (1)
61 400-45994 CAL PLATE (1)
62 SM-1051452-TN PLATE SCREW M5 L=14 (2)
63 BT-0400251-EB URETHANE HOSE, BLACK (0.3)
64 L202E-521-000 CAL SIDE COVER (1)
65 SM-6030602-TN SCREW M3X6 (2)
66 L202E-621-000 CAL DIFFUSER (1)
67 SL-4030691-SC SCREW M3 L=6 (2)
- -
10.VCS COMPONENTS
5 9
5 8
7 8
6 1
6 0
6 2
5 3 5 4
2 4
3 3
5 6
5 5
5 7
3 0
4 0
5 1
1 3
1 2
1 1
8
5 0
4 9
3 6
3 3
3 4
4 8
4 7
4 1
4 2
4 4
4 6
4 5
4 3
3 9
3 8
4 0
3 7
C
C
3 5
3 5
3 6
1 3
4 5
1 3
1 9
6
1 0
B
B
2 8
5 2
2 6
2 7
2 0
2 1
2 5
A
A
2 3
2 2
1 8
1 7
1 5
1 6
1 4
5 1
3 2
3 1
2 9
7
9
9
6 3 6 4
7 0
7 0
6 9
6 7
7 5
7 1
6 8
6 5 6 6
7 6 7 7
7 4
7 4
7 2
7 3
- -

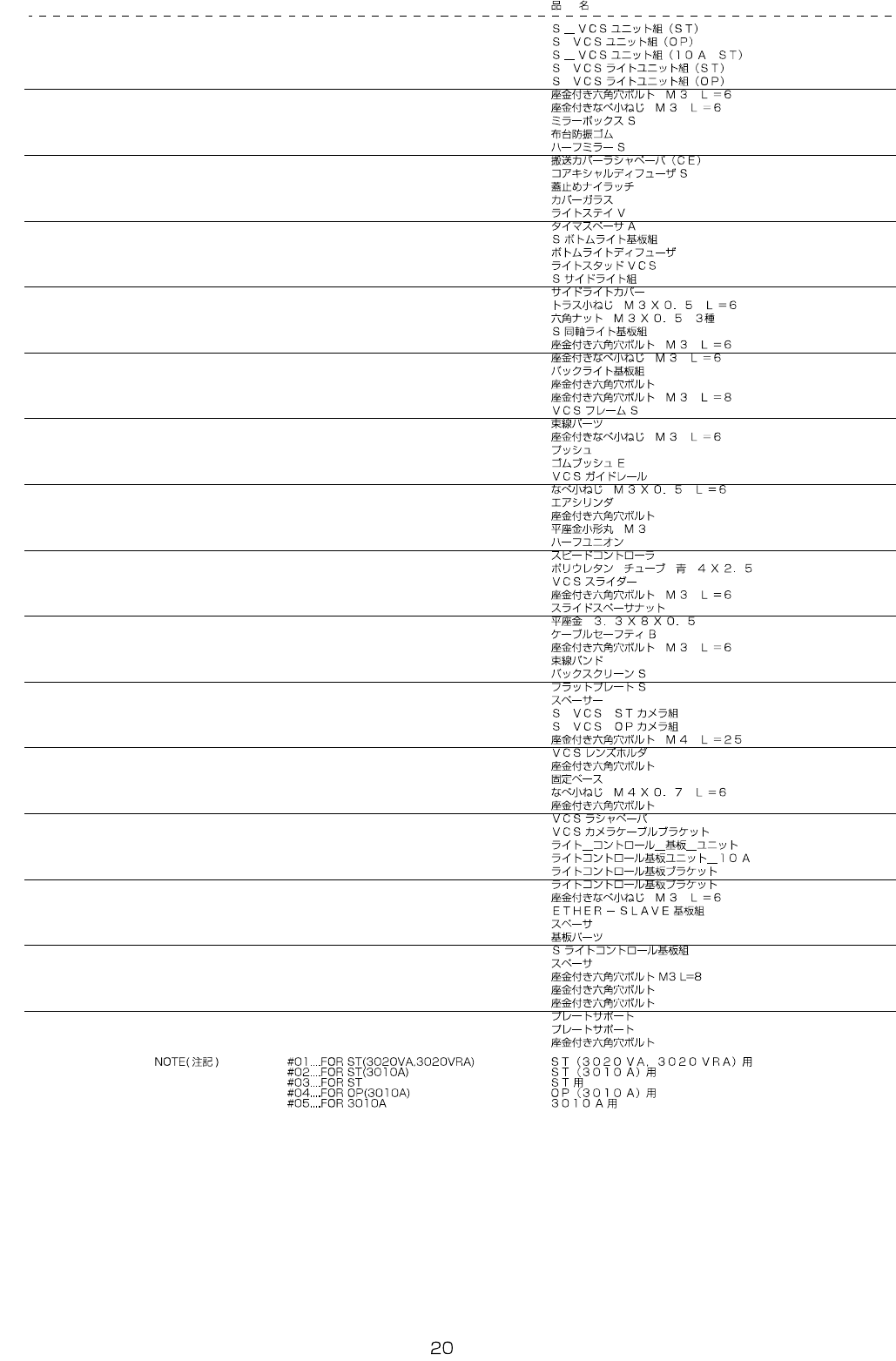

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
401-47631 S_VCS UNIT ASM(ST) 1
2
#04
401-06750 S VCS UNIT ASM(OP) 1
3
#02
401-62636 S_VCS UNIT ASM(10A ST) 1
4
#03
401-06755 S VCS LIGHT UNIT ASM(ST) (1)
5
#04
401-06753 S VCS LIGHT UNIT ASM(OP) (1)
6 SL-6030692-TN SCREW M3 L=6 (2)
7 SL-4030691-SC SCREW M3 L=6 (4)
8 400-93914 MIRROR BOX S (1)
9 118-04606 RUBBER PLUG (8)
10 400-71350 HALF MIRROR S (1)
11 E1143-721-000 WOOLEN CLOTH PAPER (1)
12 400-71349 COAXIAL DIFFUSER S (1)
13 M8808-301-000 NYLATCH (4)
14 400-71351 COVER GLASS (1)
15 400-00612 LIGHT STAY V (1)
16 E2143-715-000 TIMER SPACER A (4)
17 401-08595 S-BOTTOM-LIGHT PCB ASM (1)
18 401-11656 BOTTOM LIGHT DIFFUSER (1)
19 400-23599 LIGHT STUD VCS (8)
20 401-06792 S-SIDE-LIGHT ASM (2)
21 401-11657 SIDE LIGHT COVER (1)
22 SM-0030601-SC SCREW M3X0.5 L=6 (8)
23 NM-6030003-SC NUT M3X0.5 TYPE3 (8)
24 401-08599 S-COAXIAL-LIGHT PCB ASM (1)
25 SL-6030692-TN SCREW M3 L=6 (2)
26 SL-4030691-SC SCREW M3 L=6 (4)
27 400-66577 BACK LIGHT PCB ASM (1)
28 SL-6030642-TN SCREW M3 L=6 (4)
29 SL-6030892-TN SCREW M3 L=8 (4)
30 400-93912 VCS FRAME S (1)
31 HX-0034400-00 HARNESS PARTS (1)
32 SL-4030691-SC SCREW M3 L=6 (1)
33
#04
HX-0036500-00 PUSH (2)
34
#04
HX-0005500-0E RUBBER BUSHING (2)
35
#04
400-00628 VCS GUIDE RAIL (1)
36
#04
SM-4030601-SC SCREW M3 X 6 (8)
37
#04
400-71347 AIR CYLINDER (1)
38
#04
SL-6032542-TN SCREW (2)
39
#04
WP-0320500-SC WASHER M3 (2)
40
#04
PJ-3010405-05 HALF UNION (2)
41
#04
PC-0124070-00 SPEED CONTROLLER (2)
42
#04
BT-0400251-EA URETHANE TUBE BLUE 4X2.5 (0.6)
43
#04
400-00629 VCS SLIDER (1)
44
#04
SL-6030692-TN SCREW M3 L=6 (2)
45
#04
400-00630 SLIDE SPACER NUT (1)
46
#04
WP-0330516-SC WASHER 3.3X8X0.5 (1)
47
#04
400-00631 CABLE SAFETY B (1)
48
#04
SL-6030692-TN SCREW M3 L=6 (2)
49
#04
EA-9500B01-00 CABLE BAND (6)
50 400-71348 BACK SCREEN S (1)
51 400-93913 FLAT PLATE S (2)
52 HX-0035400-0B PCB SUPPORT L=8MM (4)
53
#03
401-06751 S VCS ST CAMERA ASM (1)
54
#04
401-06752 S VCS OP CAMERA ASM (1)
55 SL-6042592-TN SCREW M4 L=25 (1)
56 400-93915 VCS LENS HOLDER (1)
57 SL-6042092-TN SCREW M4 L=20 (3)
58
#01
HX-0029400-00 FIXED BASE (2)
59
#01
SM-4040601-SC SCREW M4X0.7 L=6 (2)
60
#01
SL-6061492-TN BOLT (2)
61
#01
E5233-729-000 VCS AA CLOTHES PAPER (1)
62
#01
401-10224 VCS CAMERA CABLE BR (1)
63
#01
401-47632 LIGHT_CTRL_PCB_UNIT (1)
64
#05
401-62637 LIGHT_CTRL_PCB_UNIT_10A (1)
65 401-47520 LIGHT_CTRL_PCB_BR (1)
66 401-61878 LIGHT_CTRL_PCB_BR (1)
67 SL-4030691-SC SCREW M3 L=6 (22)
68 400-47557 ETHER-SLAVE PCB ASM (1)
69 HX-0041800-0C SPACER (4)
70 HX-0002600-0A BASE PARTS (3)
71 401-08607 S-LIGHT_CTRL PCB ASM (1)
72 HX-0035400-0B PCB SUPPORT L=8MM (2)
73 SL-6030892-TN SCREW M3 L=8 (2)
74 SL-6061492-TN BOLT (4)
75 SL-6040892-TN BOLT (2)
76 401-47523 PLATE_SUPPORT (2)
77
#05
401-62631 PLATE_SUPPORT (4)
78 SL-6051492-TN BOLT 4
