- - RE F .N O NO T E P A R T NO D E S C R I P T I O N Q t y 1 40 0- 715 88 OC C L EFT A SM 1 2 S M - 3 03 05 52- T N S CR E W M3 L = 5 ( 2 ) 3 S M-1 03 050 1- SC S CR E W M3 L= 5 ( 1 ) 4 40 0- 715 89 OC C C AM E R A BR…
- -
26.OCC COMPONENTS
B
1
2 6
1 7
1 5
2 0
3 8
3 6
2 3
2 8
2 9
3 0
3 1
4 1
4 0
3 9
3 7
3 5
3 4
3 3
3 2
2 2
2 4
1 6
2 7
2 1
1 9
A
1 8
2 5
B
4 3
4 2
4 2
4 3
1 4
4
6
6
1 3
9
8
7
2
4 7
4 6
4 4
4 5
4 8
A
5 0
3
1 1
1 2
4 9
5
1 0
1 0
5
- -
RE F.NO NOTE PART NO D E S C R I P T I O N Qty
1 400- 71588 OCC LEFT ASM 1
2 SM-3030552-TN SCREW M3 L=5 (2)
3 SM-1030501- SC SCREW M3 L=5 (1)
4 400- 71589 OCC CAMERA BR L ASM (1)
5 HX -0029400-00 FIXED BASE (2)
6 PH-0400122-C0 PIN ( 2)
7 400- 47573 CAMERA LEN S ASSY ( 1)
8 SM-6020302- UZ SCRE W M2 L=3 (2)
9 400- 71590 CCD BR ( 1)
10 SM-4040801-SC SCREW M4X0.7 L=8 (2)
11 SL-60416 92-TN SCREW M4 L=16 ( 2)
12 400-71311 OC C LENS B R L (1)
13 SM-6030602-TN SCREW M3X6 (2)
14 400-78050 CAM ERA BRACKET ( 1)
15 400-71591 OC C LIGHT AS M ( 1)
16 118-04606 RUBBER PLUG (1 0)
17 400-43895 LIGHT DIFFUS ER ( 1)
18 400-14037 BEAM SPRITTER ( 1)
19 400-13943 PRISM COVER (1)
20 SL-60306 92-TN SCREW M3 L=6 ( 3)
21 400-01225 HOLD RUBBER (1)
22 400-15847 OC C COLLAR ( 1)
23 E1038-87 1-000 PLATEN LOCK CAM SCREW (2)
24 400-13949 LIGHT FILTER U SUPPORT ( 1)
25 L154 E-82 1-000 L IGHT BRACKET (1)
26 400-15962 OC C LAB EL (1)
27 E1143-72 1-000 W OOL EN CLOTH PAPER ( 1)
28 SL-60308 92-TN SCREW M3 L=8 ( 4)
29 400-14043 PRISM BASE (1)
30 400-47508 OC C A LIGHT PCB ASM (1)
31 400-14042 PRISM (1)
32 SL-60308 92-TN SCREW M3 L=8 ( 1)
33 SM-1020301-SN SCREW ( 4)
34 400-43896 LENS FILTER (1)
35 400-13948 GU IDE PLATE (1)
36 400-13944 ROTARY BASE (1)
37 SM-1030501-SC SCREW M3 L=5 (3)
38 400-47512 OC C C LIGHT PCB A SM (1)
39 SL-40306 91-S C SCREW M3 L= 6 (2)
40 400-44028 MIRROR BOX (1)
41 SL-60306 92-TN SCREW M3 L=6 ( 3)
42 HX-0034 400-00 H ARNESS PARTS 4
43 SM-4040801-SC SCREW M4X0.7 L=8 4
44
#01
HX -0035 400-0D BASE PARTS 4
45
#01
400- 14043 PRISM BASE 1
46
#01
HX -0033 500-0G SPACE R 4
47
#01
400- 32433 LOW HEAD SCREW M3 10 4
48 #01 400- 47508 OC C A LIGHT PCB ASM 1
49 SL-60520 92-TN SCREW 4
50 SL-60412 92-TN SCREW 2
- -

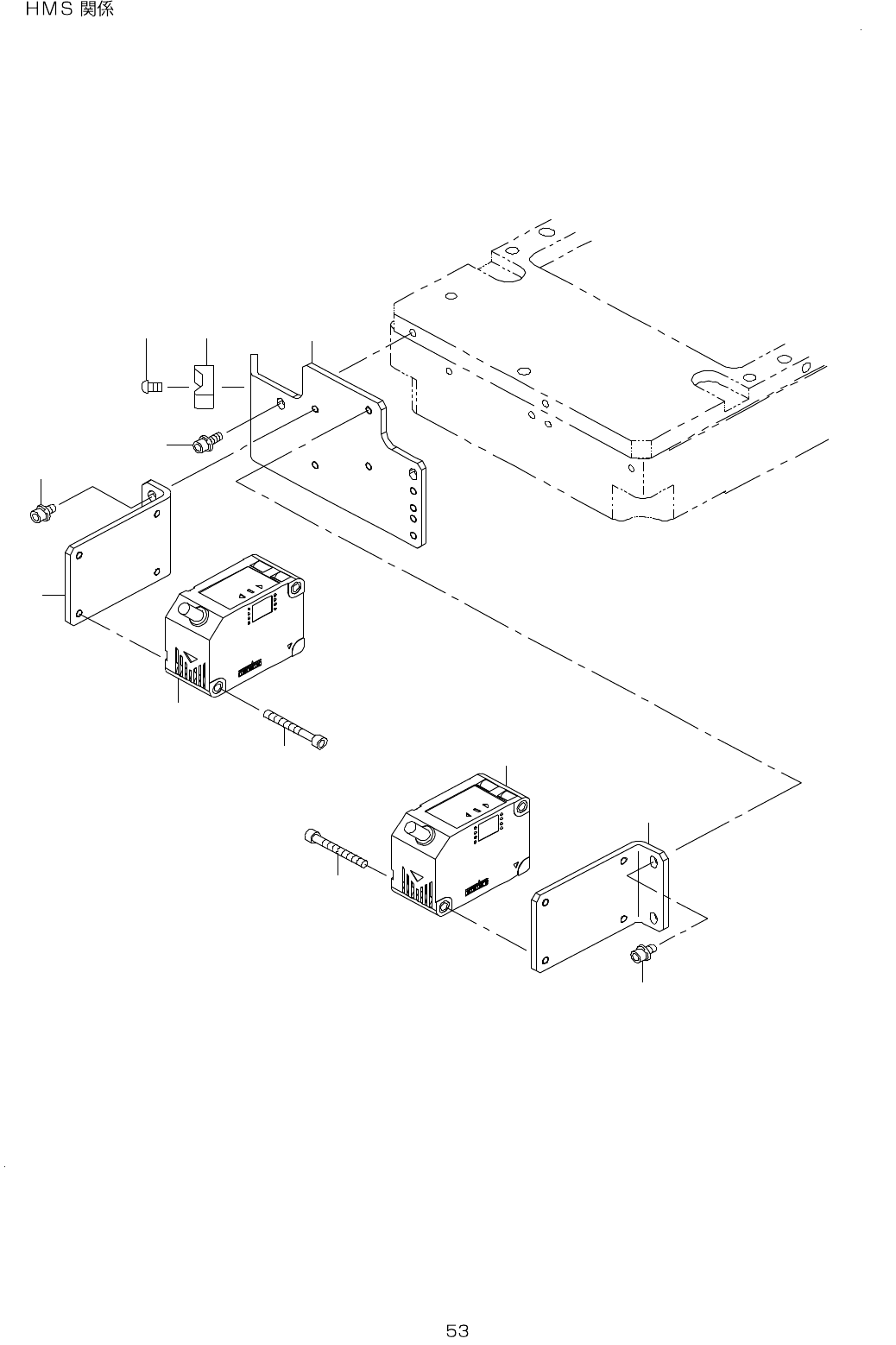

27.HMS COMPONENTS
1
8
5
3
9
5
3
2
8
4
7 6
