- - 30.P WB CON VE YO R COM P O NENT S(3) 5 8 7 8 9 7 9 8 7 6 9 3 4 A 3 7 3 8 5 3 4 5 4 7 4 8 1 2 4 6 4 4 5 9 4 0 4 1 5 4 3 9 4 9 5 3 5 1 5 2 5 0 4 9 3 3 3 2 1 7 3 4 3 1 2 8 3 1 2 9 2 4 1 4 1 5 1 6 1 8 2 2 2 3 2 1 1 0 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 SL-6041492-TN SCREW 2
2 SM-4040855-SC SCREW 2
3
#02
401-14261 RAIL PLATE FL ASM L 1
4
#01
401-46972 RAIL_PLATE_FL_ASM_M 1
5 SL-6031492-TN SCREW M3 L=14 (4)
6 E2012-721-000 ADJUST PLATE (1)
7 SL-6030692-TN SCREW M3 L=6 (2)
8 E2111-715-0A0 CONVEYOR PULLEY ASM. (2)
9 WP-0430800-SC WASHER M4 (2)
10 SM-4040855-SC SCREW (2)
11 E2089-721-0A0 CONVEYOR PULLEY B ASM. (4)
12 E2055-721-000 PULLEY SPACER (4)
13 SM-4042501-SC SCREW M4X0.7 L=25 (4)
14 WP-0430801-SC WASHER M4 (4)
15 WS-0410002-KN SPRING WASHER M4 (4)
16 NM-6040001-SC NUT M4X0.7 TYPE1 (4)
17 400-00828 CONVEYOR RAIL (1)
18 400-01048 RAIL PLATE FL(L) (1)
19 #01 401-47007 CONVEYOR_RAIL_M (1)
20
#01
SM-6040802-TN SCREW M4X0.7 L=8 (1)
21
#01
SL-6030892-TN SCREW M3 L=8 (4)
22
#01
401-47008 PWB_GUIDE_M (1)
23 E2046-725-000 PWB INNER (1)
24
#02
401-14262 RAIL PLATE FR ASM L 1
25
#01
401-46973 RAIL_PLATE_FR_ASM_M 1
26 WP-0430800-SC WASHER M4 (2)
27 SM-4040855-SC SCREW (2)
28 E2089-721-0A0 CONVEYOR PULLEY B ASM. (6)
29 E2055-721-000 PULLEY SPACER (6)
30 SM-4042501-SC SCREW M4X0.7 L=25 (6)
31 WP-0430801-SC WASHER M4 (6)
32 WS-0410002-KN SPRING WASHER M4 (6)
33 NM-6040001-SC NUT M4X0.7 TYPE1 (6)
34 400-00828 CONVEYOR RAIL (1)
35 E2012-721-000 ADJUST PLATE (1)
36 SL-6030692-TN SCREW M3 L=6 (2)
37 E2111-715-0A0 CONVEYOR PULLEY ASM. (2)
38 400-01051 RAIL PLATE FR(L) (1)
39 SL-6031492-TN SCREW M3 L=14 (4)
40
#01
401-47007 CONVEYOR_RAIL_M (1)
41
#01
SM-6040802-TN SCREW M4X0.7 L=8 (1)
42
#01
401-47008 PWB_GUIDE_M (1)
43 #01 SL-6030892-TN SCREW M3 L=8 (4)
44 E2046-725-000 PWB INNER (1)
45 400-00831 PULLEY BRAKET L ASM 1
46 E2016-715-000 IDLER PULLEY (1)
47 E2017-715-000 M LINER BUSH (4)
48 E2018-715-000 PULLEY SLEEVE (2)
49 WP-0531001-SC WASHER M5 (6)
50 WS-0510002-KN SPRING WASHER M5 (2)
51 NM-6050001-SC NUT M5X0.8 TYPE1 (2)
52 SM-6052502-TN SCREW (2)
53 400-00976 PULLEY BRAKET (1)
54 E2157-721-000 PULLEY B (1)
55 400-00832 PULLEY BRAKET R ASM 1
56 E2018-715-000 PULLEY SLEEVE (2)
57 WP-0531001-SC WASHER M5 (6)
58 E2157-721-000 PULLEY B (1)
59 WS-0510002-KN SPRING WASHER M5 (2)
60 NM-6050001-SC NUT M5X0.8 TYPE1 (2)
61 SM-6052502-TN SCREW (2)
62 400-00976 PULLEY BRAKET (1)
63 E2016-715-000 IDLER PULLEY (1)
64 E2017-715-000 M LINER BUSH (4)
65 WP-0430800-SC WASHER M4 2
66 SL-6041492-TN SCREW 2
67 SL-6031492-TN SCREW M3 L=14 4
68 SL-6041092-TN SCREW 4
69 E2111-715-0A0 CONVEYOR PULLEY ASM. 2
70 SL-6031492-TN SCREW M3 L=14 4
- -

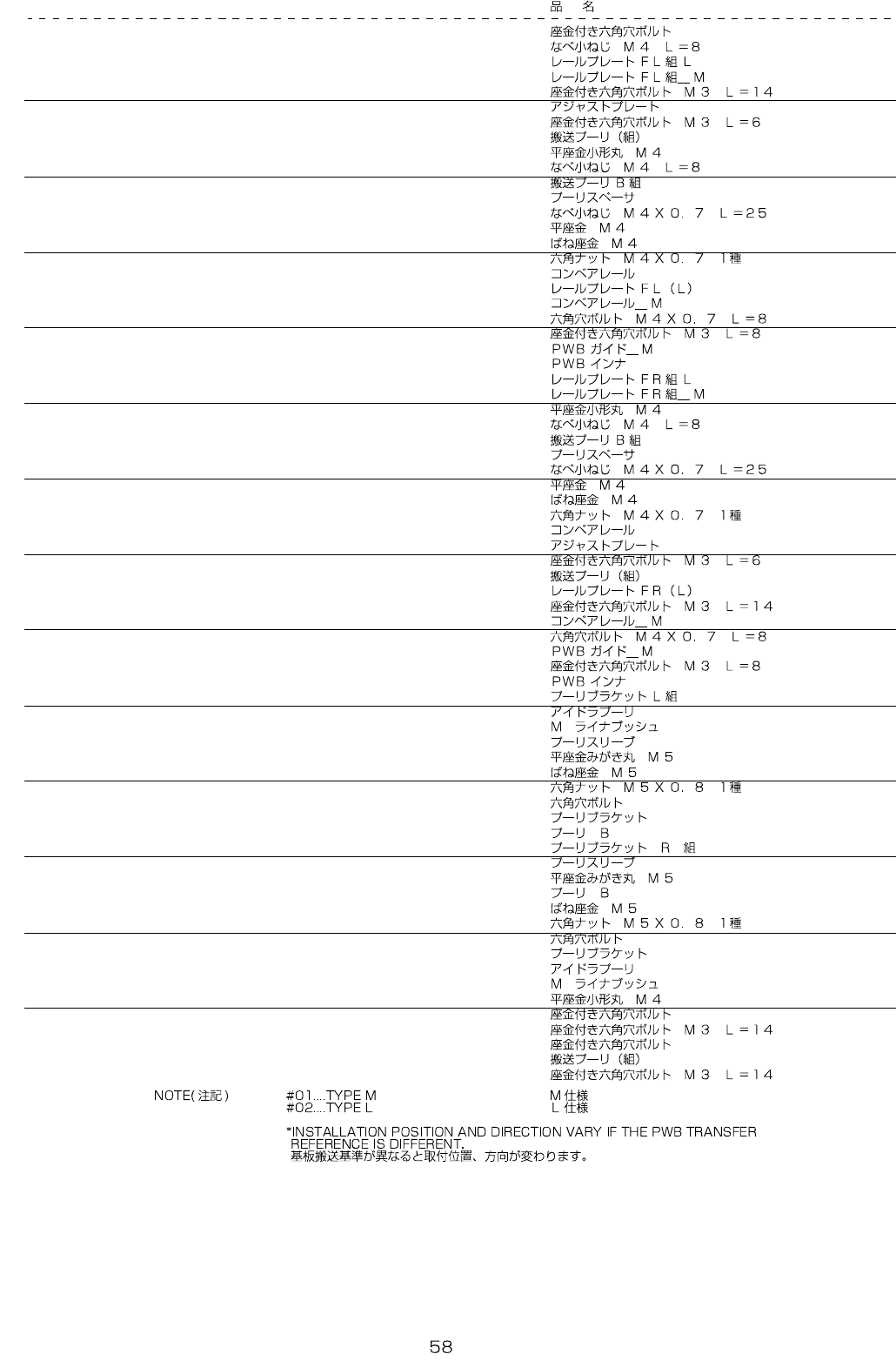

30.PWB CONVEYOR COMPONENTS(3)
5
8
7
8
9
7
9
8
7
6
9
3 4
A
3 7 3 8
5 3
4 5
4 7 4 8
1 2
4 6
4 4
5 9
4 0
4 1
5 4
3 9
4 9
5 3
5 1 5 2
5 0
4 9
3 3
3 2
1 7
3 4
3 1
2 8
3 1
2 9
2 4
1 4
1 5
1 6
1 8
2 2
2 3
2 1
1 0
3 0
1 0
3 0
2 7
2 6
2 5
2 1
2 0
1 9
B
A
1 2
1 3
1 1
3 5
3 4
3 6
3 5
4 3 5 8
5 0
5 5 5 7
B
4 2
5 6
- -

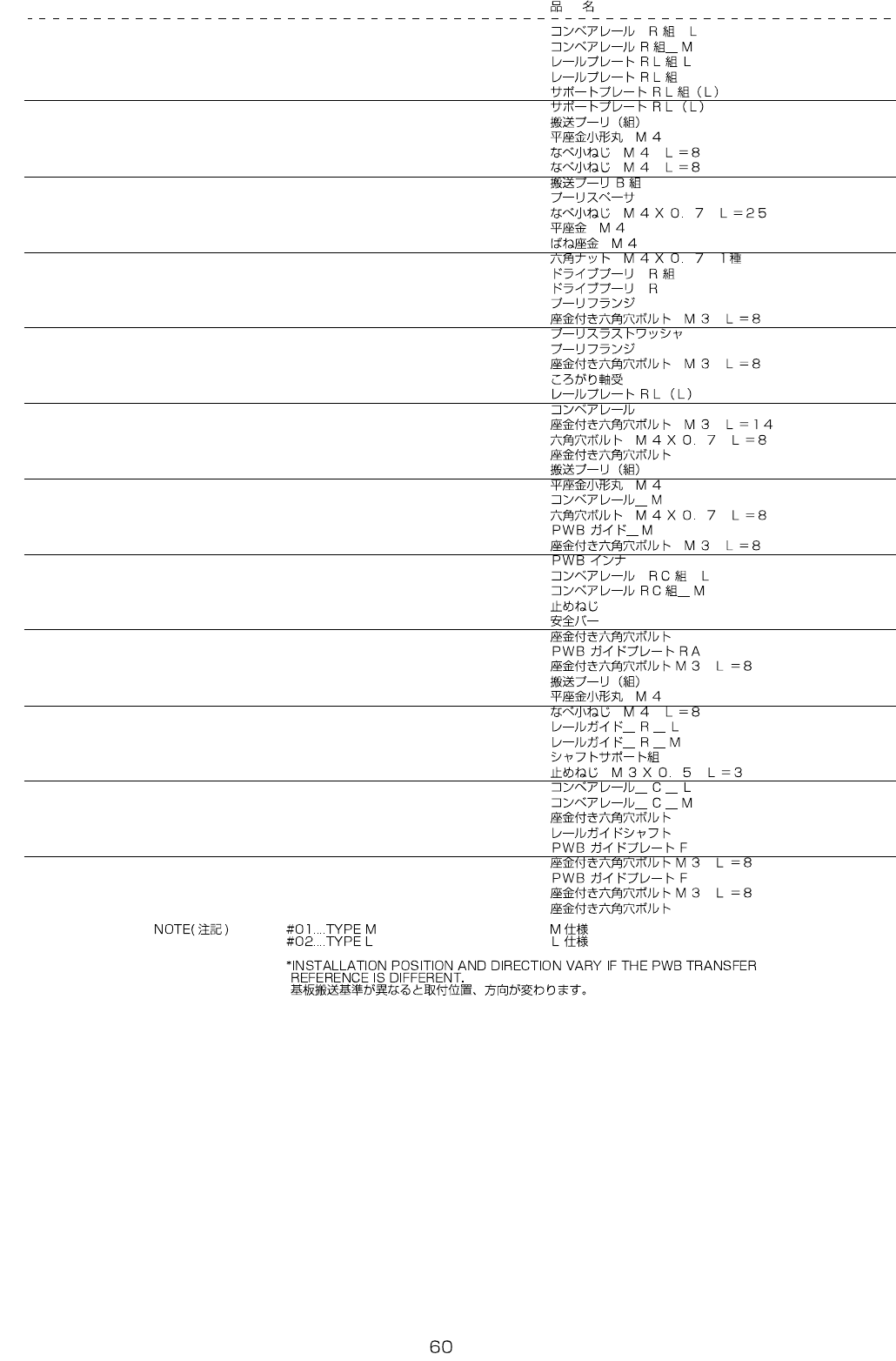

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#02
401-46987 CONVEYOR_RAIL_R_ASM_L 1
2
#01
401-46975 CONVEYOR_RAIL_R_ASM_M 1
3
#02
401-14266 RAIL PLATE RL ASM L (1)
4
#01
401-46977 RAIL_PLATE_RL_ASM (1)
5 400-01059 SUPPORT PLATE RL ASM(L) (1)
6 400-01064 SUPPORT PLATE RL(L) (1)
7 E2111-715-0A0 CONVEYOR PULLEY ASM. (3)
8 WP-0430800-SC WASHER M4 (3)
9 SM-4040855-SC SCREW (3)
10 SM-4040855-SC SCREW (2)
11 E2089-721-0A0 CONVEYOR PULLEY B ASM. (1)
12 E2055-721-000 PULLEY SPACER (1)
13 SM-4042501-SC SCREW M4X0.7 L=25 (1)
14 WP-0430801-SC WASHER M4 (1)
15 WS-0410002-KN SPRING WASHER M4 (1)
16 NM-6040001-SC NUT M4X0.7 TYPE1 (1)
17 400-00839 DRIVE PULLEY R ASM (1)
18 400-00840 DRIVE PULLEY R (1)
19 E2160-721-000 PULLEY FLANGE (1)
20 SL-6030892-TN SCREW M3 L=8 (3)
21 E3931-750-000 PULLEY WASHER (2)
22 E2160-721-000 PULLEY FLANGE (1)
23 SL-6030892-TN SCREW M3 L=8 (3)
24 SB-8160001-00 BEARING (2)
25 400-01063 RAIL PLATE RL(L) (1)
26 400-00828 CONVEYOR RAIL (1)
27 SL-6031492-TN SCREW M3 L=14 (4)
28 SM-6040802-TN SCREW (8)
29 SL-6041092-TN SCREW (2)
30 E2111-715-0A0 CONVEYOR PULLEY ASM. (2)
31 WP-0430800-SC WASHER M4 (2)
32
#01
401-47007 CONVEYOR_RAIL_M (1)
33
#01
SM-6040802-TN SCREW M4X0.7 L=8 (1)
34
#01
401-47008 PWB_GUIDE_M (1)
35
#01
SL-6030892-TN SCREW M3 L=8 (4)
36 E2046-725-000 PWB INNER (1)
37
#02
401-46988 CONVEYOR_RAIL_RC_ASM_L (1)
38
#01
401-46976 CONVEYOR_RAIL_RC_ASM_M (1)
39 SM-8040602-TP SCREW M4X0.7 L=6 (2)
40 401-46999 SAFETY_BAR (1)
41 SL-6040892-TN BOLT (4)
42
#01
E2124-721-000 PWB GUIDE PLATE RA (4)
43 #01 SL-6030892-TN SCREW M3 L=8 (6)
44 E2111-715-0A0 CONVEYOR PULLEY ASM. (4)
45 WP-0430800-SC WASHER M4 (4)
46 SM-4040855-SC SCREW (4)
47
#02
401-46997 RAIL_GUIDE_R_L (1)
48
#01
401-46996 RAIL_GUIDE_R_M (1)
49 E4105-729-0A0 SHAFT SUPPORT B ASM. (2)
50 SM-8030302-TP SCREW M3X0.5 L=3 (2)
51
#02
401-47010 CONVEYOR_RAIL_C_L (1)
52
#01
401-47009 CONVEYOR_RAIL_C_M (1)
53 SL-6041092-TN SCREW (4)
54 400-00812 RAIL GUIDE SHAFT (2)
55
#01
E2123-721-000 PWB GUIDE PLATE F (2)
56 #01 SL-6030892-TN SCREW M3 L=8 (4)
57
#02
E2123-721-000 PWB GUIDE PLATE F (2)
58
#02
SL-6030892-TN SCREW M3 L=8 (12)
59 SL-6041092-TN SCREW (17)
