KE-3010A_KE-3020VA_KE-3020VRA-Rev06 - 第72页
- - 33.P WB CON VE YO R COM P O NENT S(6) 1 8 1 8 1 2 1 4 3 1 2 4 1 2 1 6 1 5 1 7 1 3 2 0 1 9 1 6 1 5 1 4 1 7 1 3 2 0 1 9 6 5 9 7 1 0 1 1 2 1 8 2 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00860 PWB GUIDE ASM 1
2 400-00861 PWB GUIDE U (8)
3 SL-6031092-TN SCREW (16)
4
#01
401-10130 SCREW SHAFT ASM M 1
5
#02
400-01003 SCREW SHAFT ASM(L) 1
6 WP-0330516-SC WASHER 3.3X8X0.5 (4)
7 SM-6030602-TN SCREW M3X6 (4)
8 E2141-721-000 STOPPER COLLAR (2)
9 SM-8040402-TP SCREW M4X0.7 L=4 (4)
10 E2156-721-000 PULLEY A (2)
11 WP-0320500-SF WASHER 3.2X7X0.5 (8)
12 SL-6041692-TN SCREW M4 L=16 (8)
13 E2146-721-000 TIMING BELT (1)
14 SB-1080002-00 SIDE BEARING (4)
15 400-15578 SCREW SHAFT(L) (2)
16
#01
400-15577 SCREW SHAFT (2)
17 SM-8040602-TP SCREW M4X0.7 L=6 (4)
18
#02
400-54803 DRIVE SHAFT ASM L(6) 1
19
#01
401-10194 DRIVE SHAFT ASM M 1
20 400-46033 DRIVE BELT S(6) (2)
21 400-00849 DRIVE PULLEY F ASM (3)
22 SL-6031642-TN SCREW (3)
23 400-00850 DRIVE PULLEY F (1)
24 SM-8040602-TP SCREW M4X0.7 L=6 (2)
25 400-00851 MOTOR PULLEY B (1)
26 SB-1080002-00 SIDE BEARING (6)
27 SM-8040402-TP SCREW M4X0.7 L=4 (6)
28 E2141-721-000 STOPPER COLLAR (3)
29 400-01005 DRIVE BELT C(L) (1)
30 WP-0320500-SF WASHER 3.2X7X0.5 (12)
31 WP-0330516-SC WASHER 3.3X8X0.5 (6)
32 SM-6030602-TN SCREW M3X6 (6)
33
#02
E2152-721-000 DRIVE SHAFT C (3)
34
#01
E2004-725-000 DRIVE SHAFT C (3)
35
#02
400-01068 CONVEYOR BELT ASM(L) 1
36
#01
401-14259 CONVEYOR BELT ASM M 1
37
#02
E2046-725-000 PWB INNER (12)
38 SL-4031091-SC SCREW M3 L=10 (8)
39
#02
SL-6031092-TN SCREW (16)
40
#02
400-00863 CONVEYOR BELT S (4)
41
#01
401-13953 CONVEYOR BELT S M (4)
42
#02
400-01070 CONVEYOR BELT C(L) (2)
43
#01
401-13952 CONVEYOR BELT C M (2)
- -

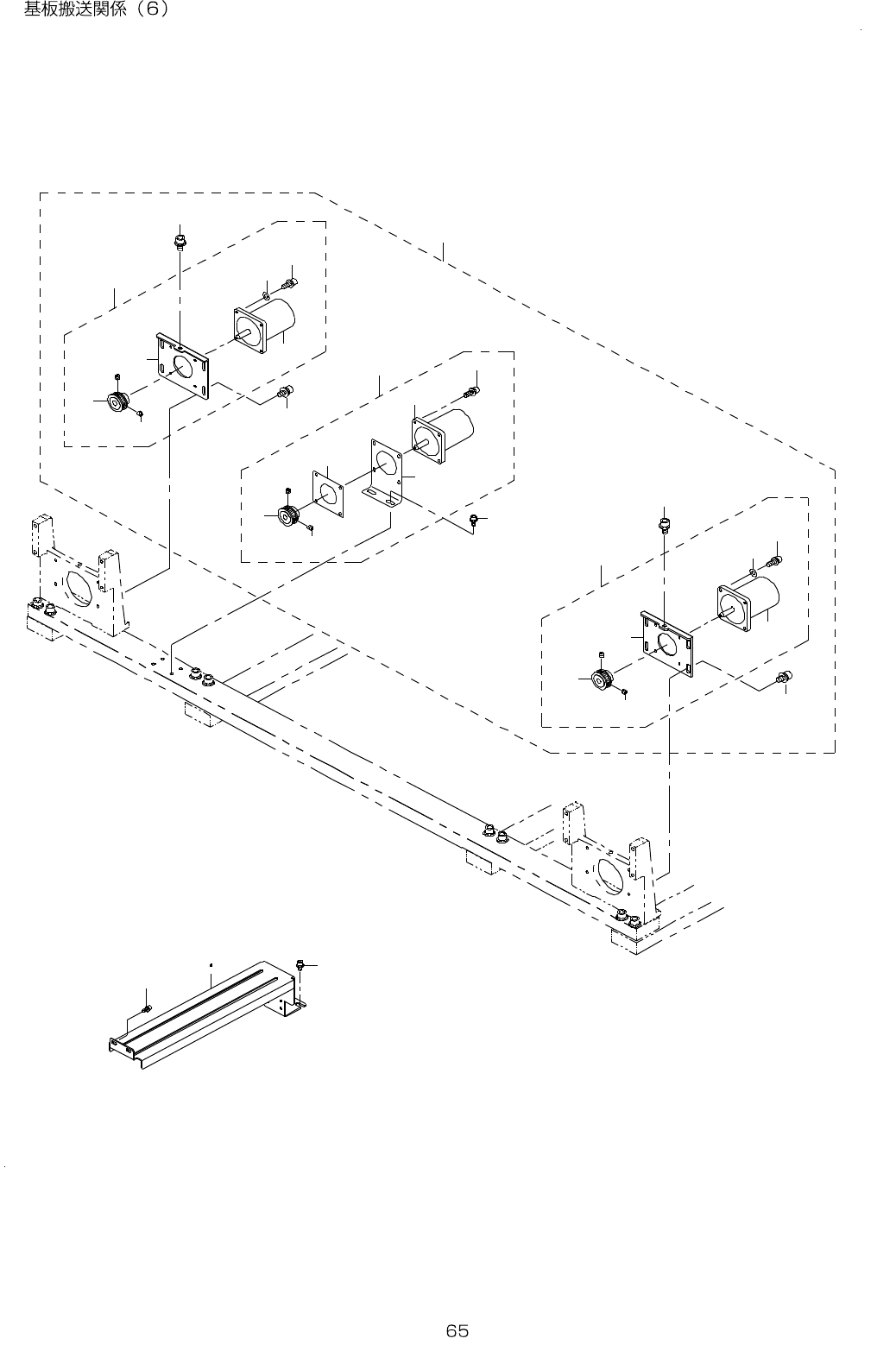

33.PWB CONVEYOR COMPONENTS(6)
1 8
1 8
1 2
1 4
3
1 2
4
1 2
1 6
1 5
1 7
1 3
2 0
1 9
1 6
1 5
1 4
1 7
1 3
2 0
1 9
6
5
9
7
1 0
1 1
2 1
8
2 2
- -

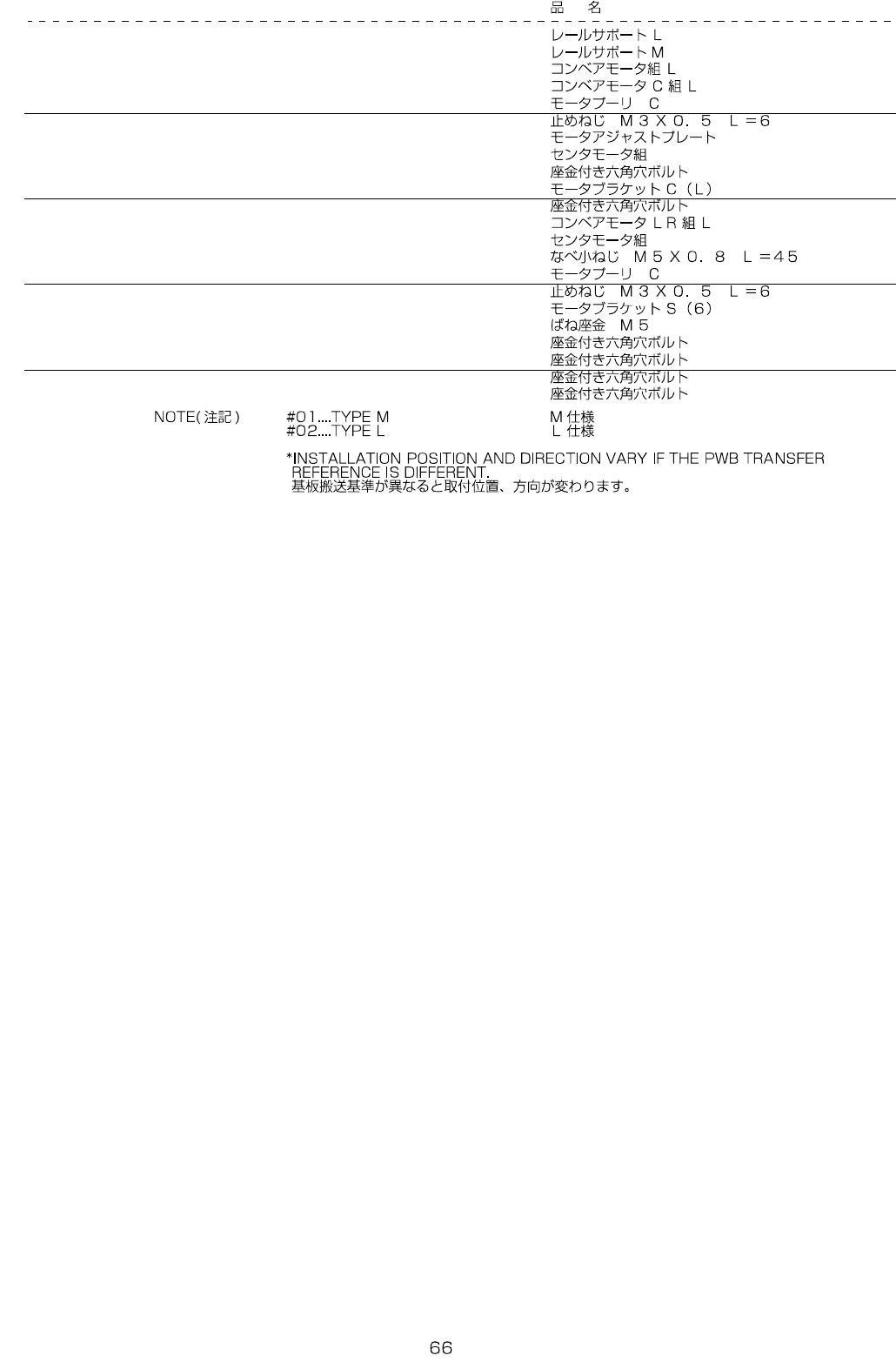

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#02
401-47006 RAIL_SUPPORT_L 1
2
#01
401-47005 RAIL_SUPPORT_M 1
3 400-93940 CONVEYOR MOTOR ASM L 1
4 400-93941 CONVEYOR MOTOR C ASM L (1)
5 400-00870 MOTOR PULLEY C (1)
6 SM-8030602-TP SCREW M3X0.5 L=6 (3)
7 400-00869 MOTOR ADJUST PLATE (1)
8 400-48074 CENTER MOTOR ASM (1)
9 SL-6041242-TN BOLT (4)
10 400-01009 MOTOR BRAKET C(L) (1)
11 SL-6051292-TN BOLT (2)
12 400-93942 CONVEYOR MOTOR LR ASM L (2)
13 400-48074 CENTER MOTOR ASM (2)
14 SM-4054501-SC SCREW M5X0.8 L=45 (4)
15 400-00870 MOTOR PULLEY C (1)
16 SM-8030602-TP SCREW M3X0.5 L=6 (3)
17 400-46034 MOTOR BRACKET S(6) (1)
18 WS-0510002-KN SPRING WASHER M5 (4)
19 SL-6051492-TN BOLT (2)
20 SL-6051092-TN BOLT (8)
21 SL-6041092-TN SCREW 2
22 SL-6051092-TN BOLT 2
