38.PWB CONVEYOR COMPONENTS(11)
7 5
A
6 2 6 3
7 4
7 3
6 4
7 1
6 9 7 0
6 8
6 7
4 7 4 8
5 5 5 6
7 2
6 6
6 5
6 1
3 8
4 1
4 0
3 9
4 4
4 5
4 2
4 3
6 0
5 8 5 9
5 4
5 7
5 2
5 3
6 0
5 8 5 9
4 6
2 0 2 1
1 0
9
6
1 2
2 3
1 6
1 3
8
1 3
7
A
A
5 1
1 9
1 8
2 9
2 8
2 7
3 1
2 2
2 6
2 7
3 4
3 0
3 4
3 1
3 7
3 5
2 4 2 5
3 2 3 3
1 1
1 5
1 4
1 2
5
3 6
7 6
3 4
4 9
5 0
7 7
B
B
1 7
- -

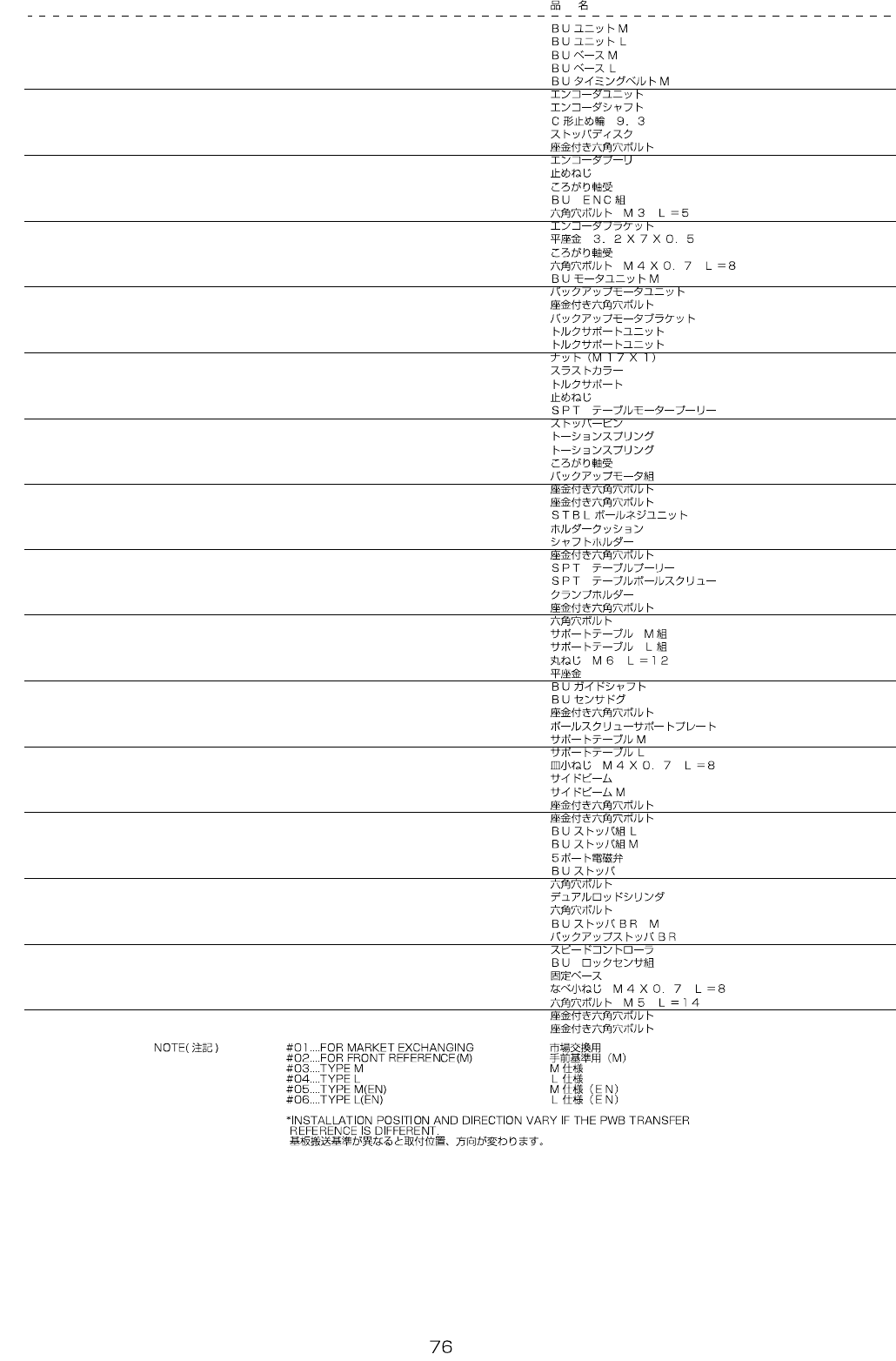

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#03
401-34642 BU_UNIT_M 1
2 #04 401-34644 BU_UNIT_L 1
3
#03
401-06043 BU BASE M (1)
4
#04
401-06045 BU BASE L (1)
5
#03
401-06047 BU TIMING BELT M (1)
6 400-93903 ENCORDER UNIT (1)
7 400-93905 ENCORDER SHAFT (1)
8 RC-0100001-KP SNAP RING M10 (1)
9 400-93906 STOPPER DISC (1)
10 SL-6042092-TN SCREW M4 L=20 (4)
11 400-93612 ENCORDER PULLEY (1)
12 SM-8040602-TP SCREW M4X0.7 L=6 (2)
13 SB-1100005-00 BEARING (2)
14 E9433-729-0A0 BU ENC ASM. (1)
15 SM-6030502-TN SCREW M3 L=5 (2)
16 400-93904 ENCORDER BR (1)
17 WP-0320501-SC WASHER M3 (2)
18 SB-8160001-00 BEARING (3)
19 SM-6040802-TN SCREW M4X0.7 L=8 (12)
20
#03
401-12719 BU MOTOR UNIT M (1)
21
#04
400-93901 BU MOTOR UNIT (1)
22 SL-6051692-TN BOLT (4)
23 400-93902 BU MOTOR BR (1)
24
#03
401-12720 TORQUE SUPPORT UNIT (1)
25
#04
L177E-621-0A0 TORQUE SUPPORT UNIT (1)
26 E4156-729-000 NUT (M17X1) (1)
27 E4144-729-000 THRUST COLLAR (2)
28 L177E-621-000 TORQUE SUPPORT (1)
29 SM-8050402-TP SCREW (2)
30 L177E-721-000 SPT TBL MOTOR PULLEY (1)
31 E4142-729-000 STOPPER PIN (2)
32 #03 E4141-729-000 TORSION SPRING (1)
33
#04
L177E-821-000 TORTION SPRING (1)
34 SB-1170001-00 BEARING (2)
35 400-48076 BACK UP MOTOR ASM (1)
36 SL-6041092-TN SCREW (4)
37 SL-6051292-TN BOLT (4)
38 #01 400-82786 STBL BALL SCREW UNIT (3)
39 L177E-021-000 HOLDER CUSHION (1)
40 E4124-729-000 SHAFT HOLDER (1)
41 SL-6041092-TN SCREW (1)
42 L177E-221-000 SPT TBL PULLEY (1)
43 L176E-821-000 SPT TBL BALL SCREW (1)
44 L176E-921-000 CLAMP HOLDER (1)
45 SL-6041642-TN SCREW (4)
46 SM-6041002-TN BOLT (18)
47
#02
401-46979 SUPPORT_TABLE_M_ASM 1
48 #04 401-46980 SUPPORT_TABLE_L_ASM 1
49 SM-3061252-TN SCREW M6 L=12 (3)
50 WP-0651001-SC WASHER (3)
51 401-22963 BU_GUIDE_SHAFT (3)
52 401-47002 BU_SENSOR_DOG (1)
53 SL-6040892-TN BOLT (1)
54 L177E-121-000 BALL SCREW SUPPORT PLATE (3)
55
#03
401-34595 SUPPORT_TABLE_M (1)
56
#04
401-34596 SUPPORT_TABLE_L (1)
57 SM-1040801-SC SCREW M4X0.7 L=8 (9)
58 #04 L176E-121-000 SIDE BEAM (2)
59
#03
401-10097 SIDE BEAM M (2)
60 SL-6031092-TN SCREW (8)
61 SL-6040892-TN BOLT 9
62
#06
401-14270 BU STOPER ASSY L 1
63 #05 401-14269 BU STOPER ASSY M 1
64 PV-1502090-00 5-PORT SOLENOID VALVE (1)
65 400-00970 BU STOPER (1)
66 SM-6051002-TN SCREW (2)
67 PA-1501011-00 DUAL ROD CYLINDER (1)
68 SM-6042002-TN SCREW (2)
69
#05
401-10099 BU STOPPER BR M (1)
70
#06
400-94746 BU STOPPER BR (1)
71 PC-0105080-00 SPEED CONTROLLER (2)
72 400-92574 BU LOCK SENS ASM (1)
73 HX-0029400-00 FIXED BASE (1)
74 SM-4040801-SC SCREW M4X0.7 L=8 (1)
75 SM-6051402-TN SCREW M5 L=14 2
76 SL-6082092-TN BOLT 4
77 SL-6041092-TN SCREW 3
- -
