- - REF.NO NOTE PART NO D E S C R I P T I O N Qty 1 E2634-72 1-0A0 D RIVER BRACKET SUPPORT A ASM. 1 2 E2634-721 -000 DRIV ER BR ACKET SUPPORT A (2) 3 SL-605209 2-TN SCREW M5 L=20 (4) 4 SL-605359 2-TN SCREW M5 L=35 (4) …
- -
41.FEEDER BANK COMPONENTS(3)(FOR 3010ACL)
5 3
8
1 2
1 3
1 1
1 4
1 0
9
2
3
4
5 0
4 9
6
5
7
1
4 7
5 4
5 4
4 8
4 8
5 1
5 2
1 6
1 7
4 6
4 5
4 2
3 7
3 3
2 4
2 3
2 1
4 0
3 4
3 4
3 9
2 6
2 5
2 7
1 8
4 1
2 9
3 6
3 5
4 1
2 9
3 2
3 1
3 8
3 0
2 2
4 0
4 3
1 9
4 4
4 3
1 9
4 4
2 8
3 4
3 4
2 5
3 9
2 7
2 6
1 5
2 0
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2634-721-0A0 DRIVER BRACKET SUPPORT A ASM. 1
2 E2634-721-000 DRIVER BRACKET SUPPORT A (2)
3 SL-6052092-TN SCREW M5 L=20 (4)
4 SL-6053592-TN SCREW M5 L=35 (4)
5 400-26804 DS CONNECTOR BRACKET 1
6 SM-4861001-SC SCREW M2.6 L=10 4
7 SL-6051092-TN SCREW M5 L=10 2
8 400-93832 DC AIR PARTS 2
9 PJ-3040600-01 REDUCER ELBOW (1)
10 PJ-3080600-03 UNION Y (1)
11 BT-0600400-EC URETHANE TUBE BLUE 6X4 (4)
12 PJ-3080600-03 UNION Y (2)
13 PJ-3010651-06 FEMALE UNION (1)
14 E2904-700-000 SOCKET (1)
15 401-14142 M FIXED BANK UNIT 1
16 WP-0841601-SC WASHER M8 (2)
17 WS-0820002-KN SPRING WASHER M8 (2)
18 E2501-729-AA0 FEEDER BANK ASM (1)
19 WS-0820002-KN SPRING WASHER M8 (2)
20 E2501-729-0B0 FEEDER BANK (30) COMPL. (1)
21 E2502-729-000 PLATE STAND L (1)
22 E2503-729-000 PLATE STAND R (1)
23 E2515-729-000 FIXING PLATE (1)
24 E2516-729-000 NUMBER PLATE (1)
25 E2505-729-0A0 MARK ASM. (2)
26 E2601-725-000 MARK (1)
27 E2505-729-000 MARK BASE (1)
28 E2504-729-000 LOCK SHAFT (1)
29 E2513-729-000 FIXING PLATE B (4)
30 E2608-721-000 PLATE SUPPORT (4)
31 E2609-721-000 BANK LOCATE PIN A (1)
32 E2610-721-000 BANK LOCATE PIN B (1)
33 400-98252 POSITION LABEL (1)
34 SM-8041402-TP SCREW M4X0.7 L=14 (4)
35 SM-6040802-TN SCREW M4X0.7 L=8 (17)
36 SL-6031292-TN SCREW M3 L=12 (12)
37 SL-6041292-TN SCREW M4 L=12 (5)
38 SL-6041692-TN SCREW M4 L=16 (8)
39 SL-6041292-TN SCREW M4 L=12 (4)
40 SL-6052092-TN SCREW M5 L=20 (4)
41 SM-4040655-SN SCREW M4X0.7 L=6 (8)
42 SM-6030552-KS SCREW (9)
43 NM-6080003-SC NUT M8X1.25 TYPE3 (2)
44 WP-0841601-SC WASHER M8 (2)
45 SM-6085002-TN SCREW (2)
46 SL-6084092-TN SCREW M8 L=40 (2)
47 400-93831 DRIVE CYLINDER UNIT 2
48 SL-6052592-TN SCREW M5 L=25 (6)
49 PJ-3080600-03 UNION Y (1)
50 BT-0600400-EC URETHANE TUBE BLUE 6X4 (0.8)
51 400-93843 DRIVER SUPPORT (1)
52 400-00575 DRIVE CYLINDER L (1)
53 400-00576 DRIVE CYLINDER R (1)
54 SL-6051292-TN SCREW M5 L=12 (2)
- -

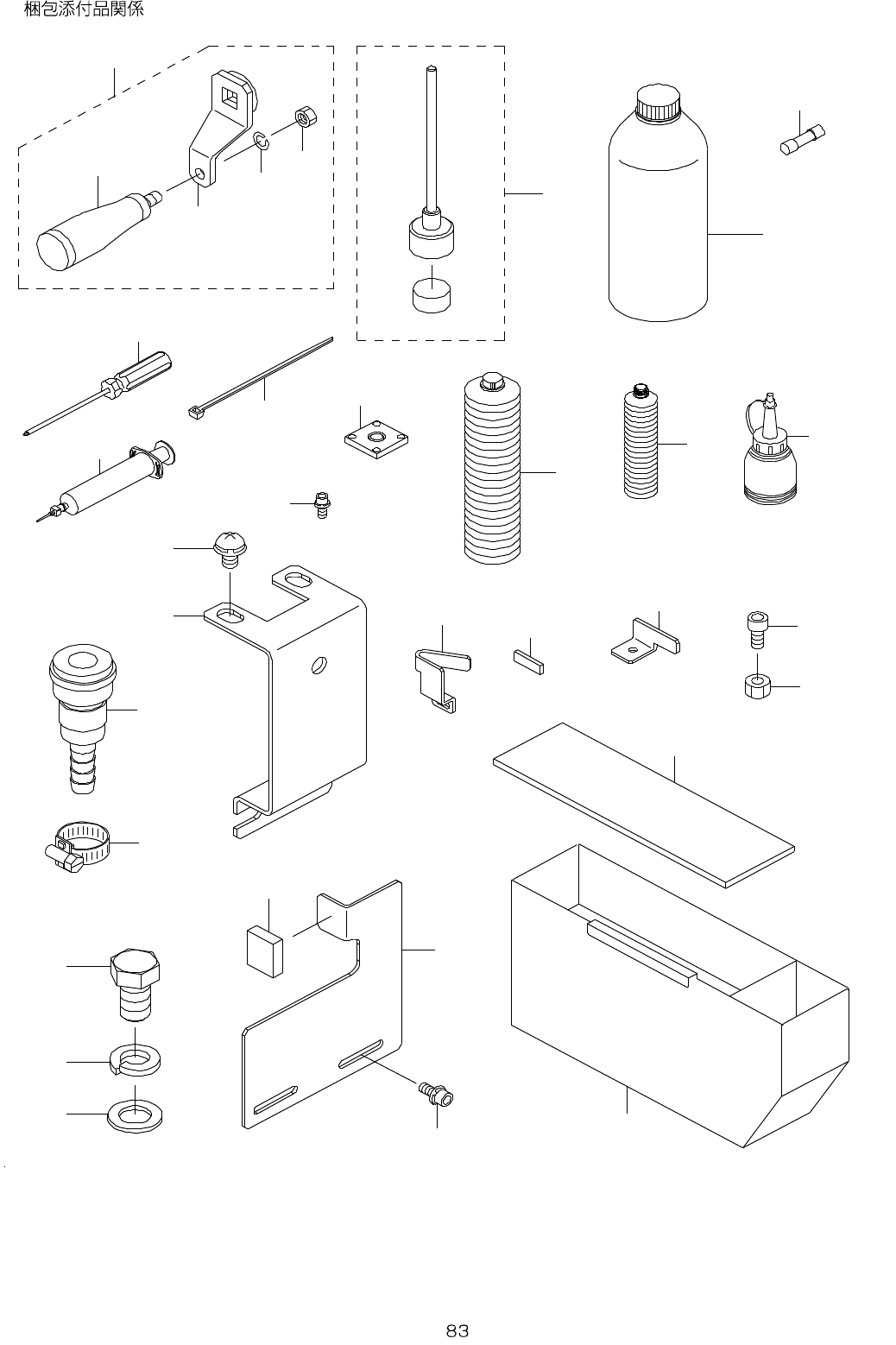

42.ACCESSORIES PART COMPONENTS
1 4
1 7
6
8
3
2
4
5
3 1
2 1
3 3
2 0
1 0
1
2 8
1 5
3 2
3 0
1 1
2 7
2 5
2 4
1 9
1 2
1 3
2 9
9
2 3
2 2
2 6
7
1 8
1 6
