– 103 –

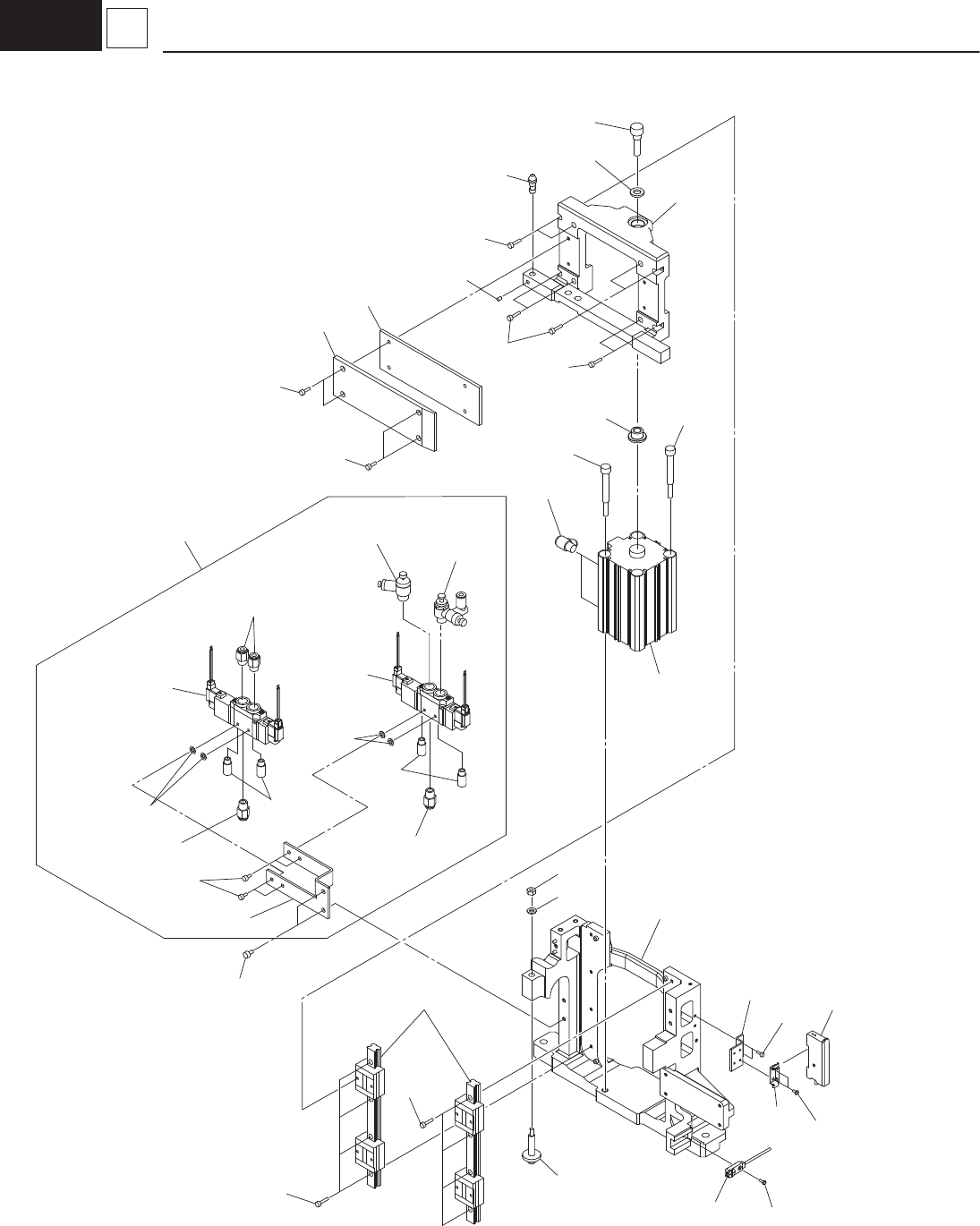

POSITIONING SECTION
No. Part No. Part Name Qty. Detail
201 KYA-M3J04-00 BASE_L 1
202 KYB-M3J1B-00 GUIDE_LINEAR 1
203 91312-04016 BOLT,HEX.SOCKET HEAD 16
204 KYA-M3J06-00 BASE_MOVE_L 1
205 KYY-M3J07-00 ASSY,SENSOR FCT1 1 FCT1
206 98502-03008 SCREW,PAN HEAD 1
207 KYB-M3J1P-00 SHAFT 1
208 95302-06600 NUT,HEXAGON 1
209 92902-06200 WASHER,PLAIN 1
210 KYB-M3J1S-00 PIN_GUIDE 1
211 90990-02J026 SCREW,SET 1
212 KYA-M3J0D-00 ASSY_VALVE-L 1
212-01 KYA-M3J0N-00 BRACKET_VALVE_L 1
212-02 KYA-M3J0B-00 ASSY,VALVE CUT2,3 1 CUT2,3
212-03 $AN10-01 JOINT 2
212-04 KYA-M3J0V-00 PIPE_FITTINGS 2
212-05 KYA-M3J0W-00 PIPE_FITTINGS 1
212-06 91312-04006 BOLT,HEX.SOCKET HEAD 2
213 KYB-M3J1X-00 CYLINDER 1
214 91312-08120 BOLT,HEX.SOCKET HEAD 2
215 KYB-M3J1J-00 PIPE_FITTINGS 2
216 KYA-M3J0X-00 HOLDER 1
217 90112-10J025 BOLT,HEX.SOCKET HEAD 1
218 92902-10200 WASHER,PLAIN 1
219 91312-05008 BOLT,HEX.SOCKET HEAD 2
220 KYB-M3J17-00 PLATE 1
221 KYB-M3J16-00 PLATE 1
222 91312-04012 BOLT,HEX.SOCKET HEAD 4
