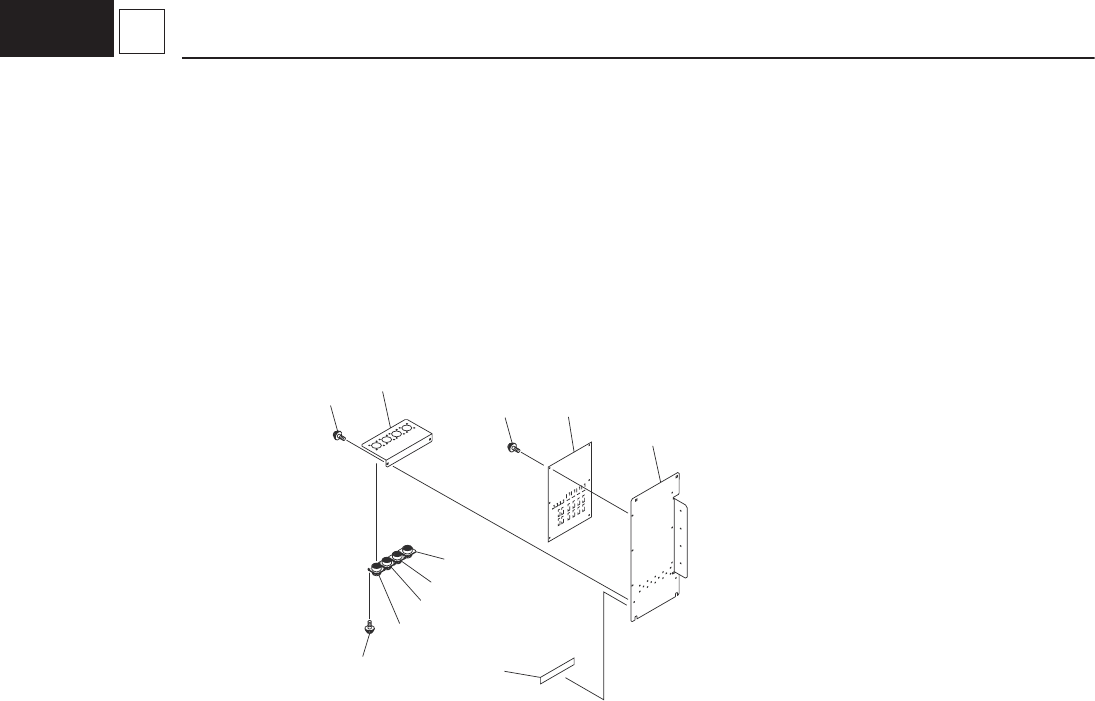

– 1 12 – E5 3 I/F Board 1907-005 203 207 206 205 204 208 21 1 209 210 212 201 202 U27 (UC23)
– 111 –
ELECTRICAL SECTION (Surroundings)
No. Part No. Part Name Qty. Detail
101 KYB-M6511-00 BREAKER 1 Q200
103 KYB-M6582-00 BREAKER TERMINAL CVR 1
104 KYB-M6585-00 HANDLE 1
105 90990-08J034 SCREW,PAN HEAD 2
106 92902-04100 WASHER,SPRING 2
107 92902-04200 WASHER,PLAIN 2
108 KYA-M651C-00 BRACKET 1
111 KYB-M656S-00 NOISE-FILTER 1 Z01, Z02
113 KYA-M651J-00 NF-PLATE 1
114 KYB-M65AP-00 ACCESS-WIRING 1
115 KYB-M65AR-00 ACCESS-WIRING 1
116 KYB-M65AB-00 MOUNTING_BASE 2
117 91312-05006 BOLT,HEX.SOCKET HEAD 8
118 91312-05008 BOLT,HEX.SOCKET HEAD 2
119 98502-05008 SCREW,PAN HEAD 4
120 92902-05100 WASHER,SPRING 4
121 92902-05200 WASHER,PLAIN 4
123 KYB-M65B8-00 CAB_JOINTTERMIN 15
124 KYB-M6591-00 CORD 1
125 KYB-M658A-00 TUBE_WIRING 15
1907-005
– 113 –
ELECTRICAL SECTION (Surroundings)
No. Part No. Part Name Qty. Detail
201 KYA-M651G-00 PANEL 1
202 KYA-M651B-00 PANEL 1
203 KYA-M655J-00 PCB-MOUNT 1 U27(UC23)
204 KYA-M6534-00 HNS,SMEMA-IF-AF 1
205 KYA-M6535-00 HNS,SMEMA-IF-AB 1
206 KYA-M6536-00 HNS,SMEMA-IF-BF 1
207 KYA-M6537-00 HNS,SMEMA-IF-BB 1
208 KYA-M6519-00 ASSY-NAME-PLATE-BA 1
209 90990-11J014 SCREW,PAN HEAD WW 6
210 92902-03600 WASHER,PLAIN 18
211 90990-11J017 SCREW,PAN HEAD WW 16
212 91312-05006 BOLT,HEX.SOCKET HEAD 2
1907-005
