– 115 –

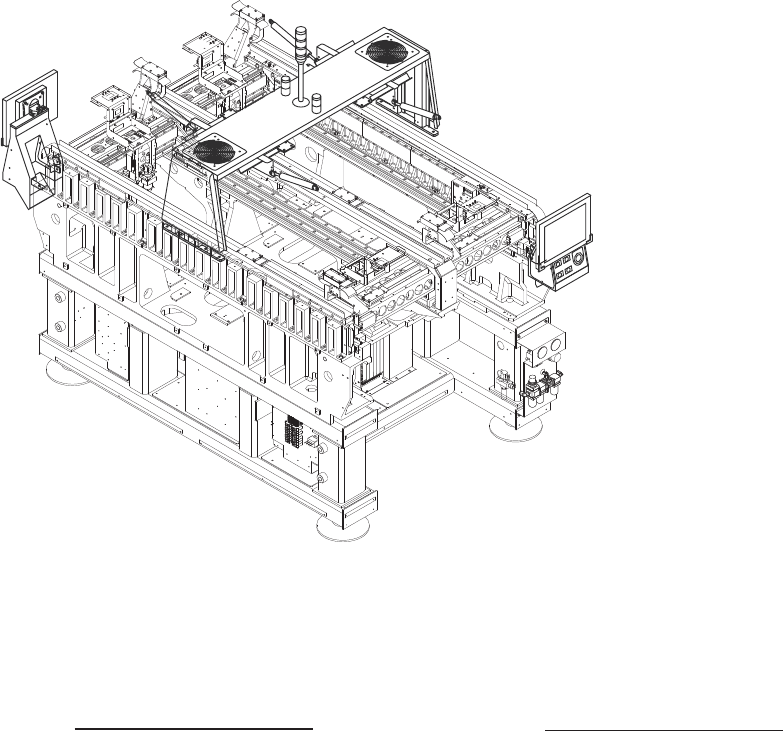

PANEL, CENTER FRAME
CONTENTS
F1 PANEL, FRAME SECTION 116
1 Center Frame / Fan / Lamp 116
2 Panel, Switch 118
– 116 –
F1

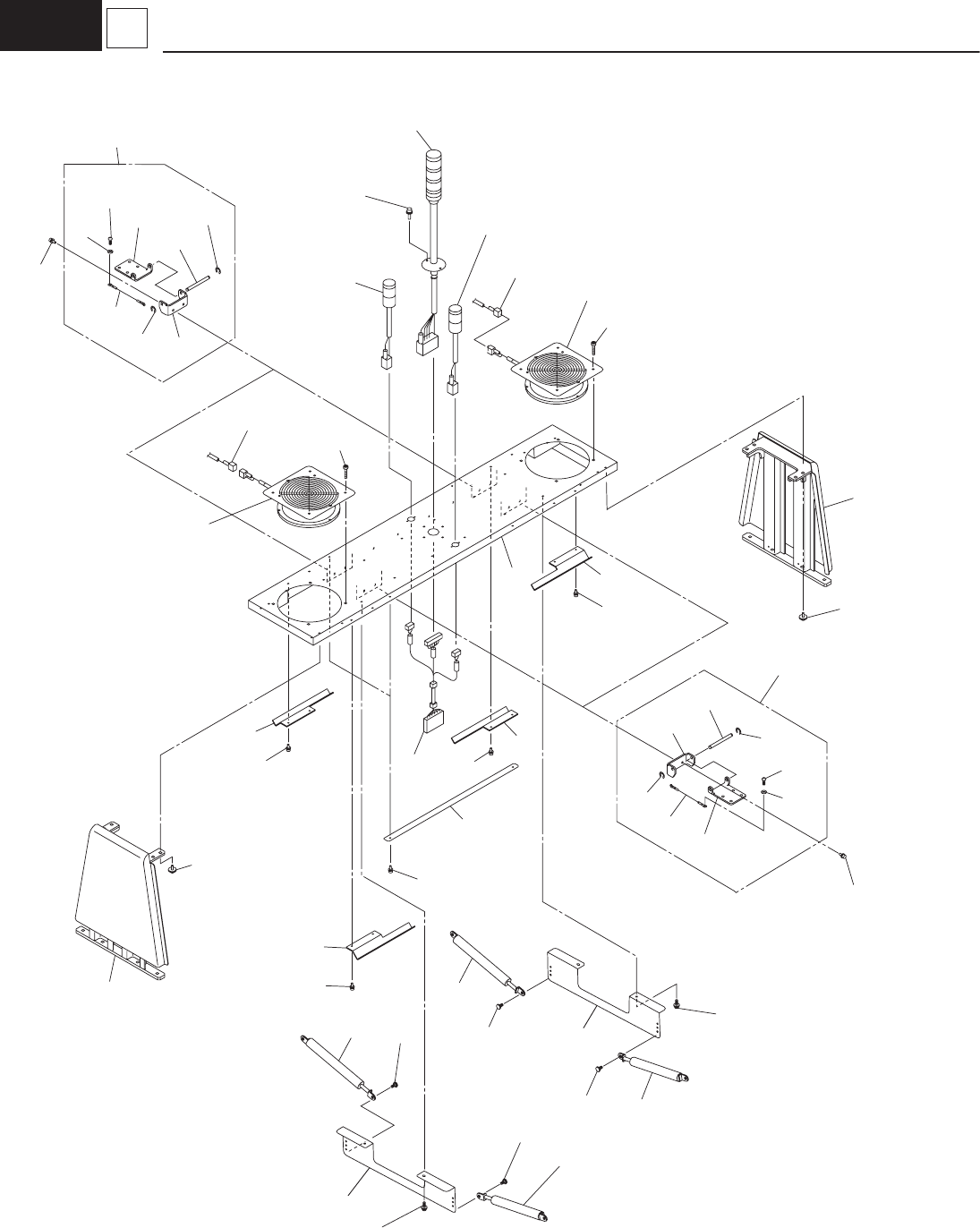

1 Center Frame / Fan / Lamp
1907-005
2
1
2
16
16
15
22
18
22
15
11
3-02
3-06
3-07
3-03
3-01
3-03
3-01
3-04
3-04
3-06
3-07
3-02
8
7
7
8
8
7
4
4
7
8
20
16
20
16
3-04
3-05
3-04
17
21
14
12
14
13
34
34
31
33
32
23
23
23
23
29
29
27
27
3
3
23
28
3-05
F1 PANEL, FRAME SECTION
– 117 –
PANEL, FRAME SECTION
1907-005
No. Part No. Part Name Qty. Detail
1 KYB-M1303-00 FRAME 1
2 KYY-M130D-00 FRAME:Y-SIDE 2
3 KYB-M130P-00 GUL_HINGE_ASSY 4
3-01 KYB-M131K-00 BRACKET 4
3-02 KYB-M131L-00 BRACKET 4
3-03 KYB-M131X-00 PIN_HINGE 4
3-04 90440-01J060 CIRCLIP 8
3-05 KYB-M131G-00 HNS,COVER-FG 4
3-06 98502-05008 SCREW,PAN HEAD 2
3-07 92902-05200 WASHER,PLAIN 2
4 KYA-M131G-00 GAS_SPRING_BRA 2
7 KYB-M131J-00 GAS_SPRING 4
8 KYB-M131H-00 SET_SCREW_2 4
11 KYA-M1318-00 HNS,PILOT-LAMP 1
12 KYA-M1316-00 HNS,UPPER-FAN-L 1
13 KYA-M1317-00 HNS,UPPER-FAN-R 1
14 90990-01J144 BOLT,HEX.S/H WW 8
15 91312-06016 BOLT,HEX.SOCKET HEAD 8
16 91312-06014 BOLT,HEX.SOCKET HEAD 12
17 91312-04008 BOLT,HEX.SOCKET HEAD 4
21 92902-04200 WASHER,PLAIN 4
22 KYB-M132C-00 ROHS_WASHER 8
23 90990-01J139 BOLT,HEX.S/H WW 14
27 KYA-M131H-00 COVER 2
28 KYA-M131E-00 COVER 2
29 KYA-M131J-00 COVER 2
31 KYA-M1312-00 ASSY_FAN_1_A 1
32 KYA-M1313-00 ASSY_FAN_2_A 1
33 KYB-M130U-00 ASSY PILOT-LAMP 1
34 KYB-M130T-00 ASSY-MATERIAL-LIGHT 2
