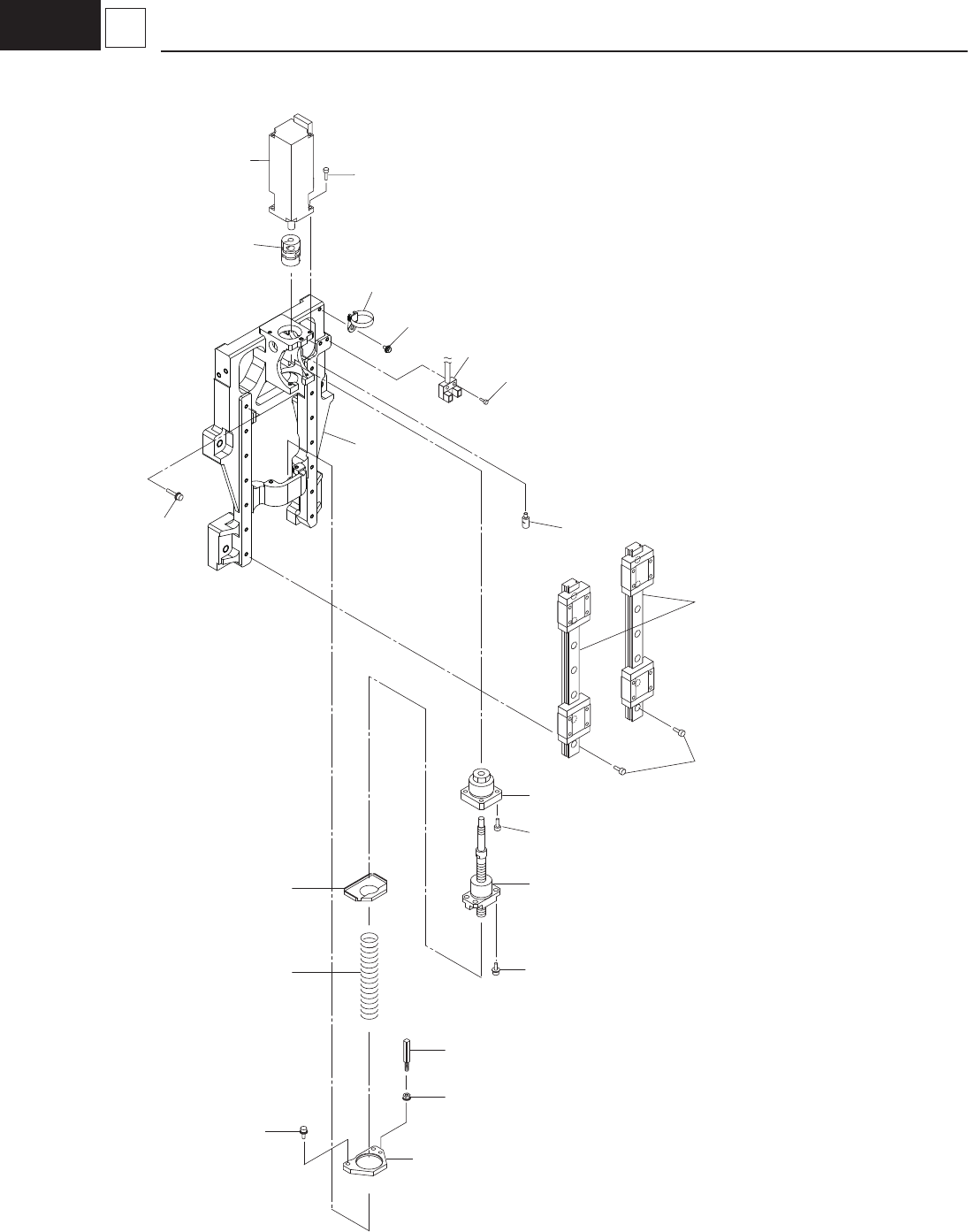

HIGH SPEED HEAD(DDH V11)
No. Part No. Part Name Qty. Detail
201
KYA-M700S-00
MOTOR 1
202 KYB-M702C-00 COUPLING 1
211 KYB-M703T-00 PLATE_HL-SP 1
212 KYB-M703S-00 STOPPER_HL 1
213 95302-03700 NUT_HEX 1
214 92902-03200 WASHER,PLAIN 1
235 KYB-M703U-00 SPRING_COMP 1
236 KYB-M702K-00 PLATE_HL_SPRING 1
239 92902-03200 WASHER,PLAIN 2
242 91312-03010 ROHS;BOLT_HEX-SCT 2
244 90112-2AJ010 BOLT,HEX.SOCKET HEAD 2
258 91312-03008 BOLT,HEX.SOCKET HEAD 6
263 KYB-M656C-00 ACCESS-WIRING 1
265 KYA-M7014-00 ASSY,SENSOR X314C 1
266 KYB-M7045-00 BOLT_HEX-SCT 4
267 92902-06200 WASHER 4
268 KYB-M65AW-00 WIRING 1
269 90990-11J009 MACHINE SCREW 1
271 KYF-M862L-00 BEARING_UNIT 1
272 KYB-M700P-00 HL_BALL_SCREW 1
282 KYB-M704H-00 STOPPER 1
283 KYB-M7018-00 GUIDE_LINEAR_HL 2
284 KYA-M700C-00 BASE_OUTER 1
285 91312-03008 BOLT,HEX.SOCKET HEAD 18
