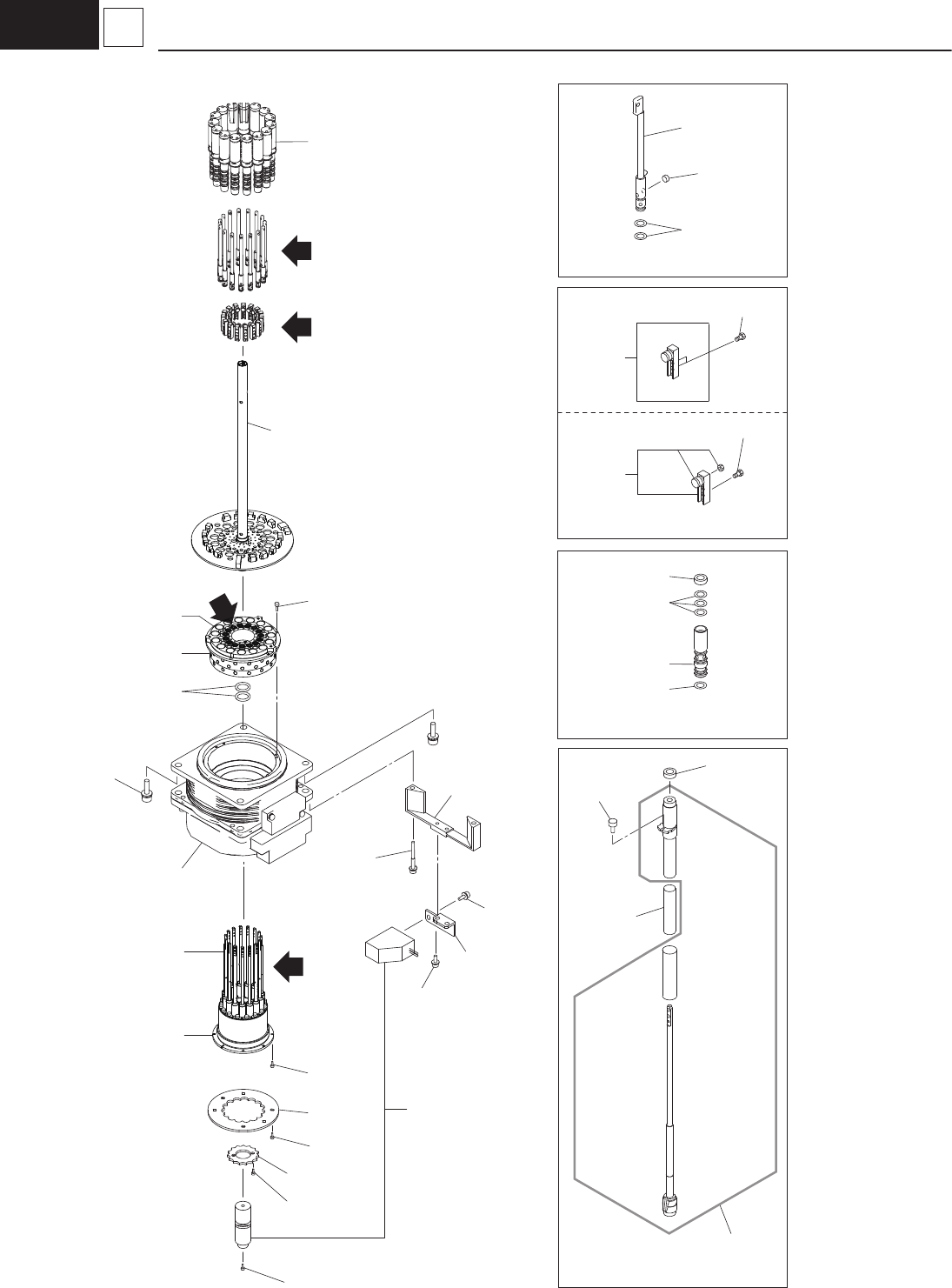

– 152 – G3 5 Nozzle Shaft, V acuum Filter , DD Motor 1907-005 456 455 456 455 426 427 432 413 A 462 462 462 453 422 421 423 404 428 454 411 411 420 B D C DET AIL C DET AIL D 483 481 412 412 418 414 415 481 482 483 484 48…
– 151 –
HIGH SPEED HEAD(DDH V11)
No. Part No. Part Name Qty. Detail
301
KYB-M704C-00
PULLEY_TIMING 1
302 KYB-M7041-00 PLATE 1
303 90112-02J004 ROHS_HEX-SCT 2
311 KYA-M700P-00 MOTOR 1
312 KYB-M704B-00 PULLEY_TIMING 1
313 KYB-M7042-00 BLOCK 1
314 90112-02J010 BOLT,HEX.SOCKET HEAD 1
319 KYB-M7012-00 ASSY_SEN_NL 1
321 KYA-M700R-00 MOTOR 1
322 KYB-M702C-00 COUPLING 1
324 KYB-M705K-00 BELT_TIMING 1
329 KYB-M702J-00 SENSOR_DOG_NL 1
330 KYB-M703P-00 PLATE_HL 1
331 KYA-M700B-00 BASE_INNER 1
333 KYB-M702P-00 SPRING_COMP_NL 1
334 KYB-M702G-00 BLOCK_NL_SPRING 1
337 91312-03006 BOLT,HEX.SOCKET HEAD 2
338 92902-03100 WASHER,SPRING 2
339 92902-03200 WASHER,PLAIN 22
342 91312-03010 ROHS;BOLT_HEX-SCT 3
343 90990-02J019 SCREW,SET 2
344 90112-2AJ010 BOLT,HEX.SOCKET HEAD 3
345 90112-2AJ016 BOLT,HEX.SOCKET HEAD 1
346 90189-02J2A6 NUT,HEXAGON 1
347 90171-02J2A6 WASHER,PLAIN 3
348 91312-05020 BOLT,HEX.SOCKET HEAD 2
349 91312-03012 BOLT,HEX.SOCKET HEAD 4
352 90112-2AJ006 BOLT,HEX.SOCKET HEAD 2
358 91312-03008 BOLT,HEX.SOCKET HEAD 18
360 90990-38J004 WASHER,SPRING 2
362 90990-01J115 BOLT,HEX.SOCKET HEAD 2
370 KYB-M701J-00 PCB-MOUNT 1
371 90990-11J013 SCREW,PAN HEAD WW 2
381 KYB-M700M-00 BALL_SCREW_NL 1
382 KYB-M700R-00 SUPPORT_UNIT_NL 1
383 KYB-M700N-00 BEARING_NL 1
384 91312-03020 BOLT,HEX.SOCKET HEAD 1
385 95302-03600 NUT_HEX 1
391 KYB-M702H-00 BLOCK_NL_BEARING 1
392 91312-03008 BOLT,HEX.SOCKET HEAD 1
393 95302-03600 NUT_HEX 1
1907-005
– 153 –
HIGH SPEED HEAD(DDH V11)
No. Part No. Part Name Qty. Detail
404
KYB-M701U-00
ACCESSORY_SV 15
405
KYB-M703C-00 ASSY_TOP BLOCK 15
KYA-M701U-00 ASSY_BLOCK_TOP 15 MN50176-2016/6/8-OK
411 KYB-M700V-00 ASSY_NOZZLE_SHAFT 15
412 KYB-M704E-00 SEAL 15
413 KYA-M700J-00 ROTOR_LOWER 1
414 KYB-M702R-00 SPRING_COMP_NOZ 15
415 90112-02J004 ROHS_HEX-SCT 15
418 KYA-M700N-00 MOTOR_AC-SERVO 1
420 KYA-M7017-00 SENSOR_PELEC 1
421 KYB-M701R-00 HOLDER 15
422 KYB-M704D-00 AIR_CLEAN_EQPT 30
423 KYB-M702B-00 SEAL 30
426 KYA-M7025-00 BLOCK_LINE_SENS 1
427 KYA-M7024-00 BRACKET_LN_SENS 1
428 KYB-M702A-00 DISK 1
432 KYB-M7029-00 DISK 1
440
90990-01J114 ROHS_HEX-SCT 15
90990-01J114 BOLT,HEX.SOCKET HEAD 30 M1.6L3 MN50176-OK
441 90112-02J004 ROHS_HEX-SCT 3
450 91312-05016 ROHS_HEX-SCT 4
451 92902-05200 WASHER 4
453 90990-01J117 ROHS_HEX-SCT 2
454 91317-03035 BOLT,HEX.SOCKET HEAD 2
455 91317-03008 BOLT,HEX.SOCKET HEAD 4
456 92907-03200 WASHER,PLAIN 4
462 90990-01J115 BOLT,HEX.SOCKET HEAD 8
471 KYA-M700-00 ROTOR_UPPER 1
473 KYB-M704G-00 SEAL 2
481 KYB-M702F-00 HOLDER 15
482 KYB-M7028-00 SEAL 45
483 KYB-M704E-00 SEAL 15
484 KYB-M704F-00 SEAL 15
1907-005
