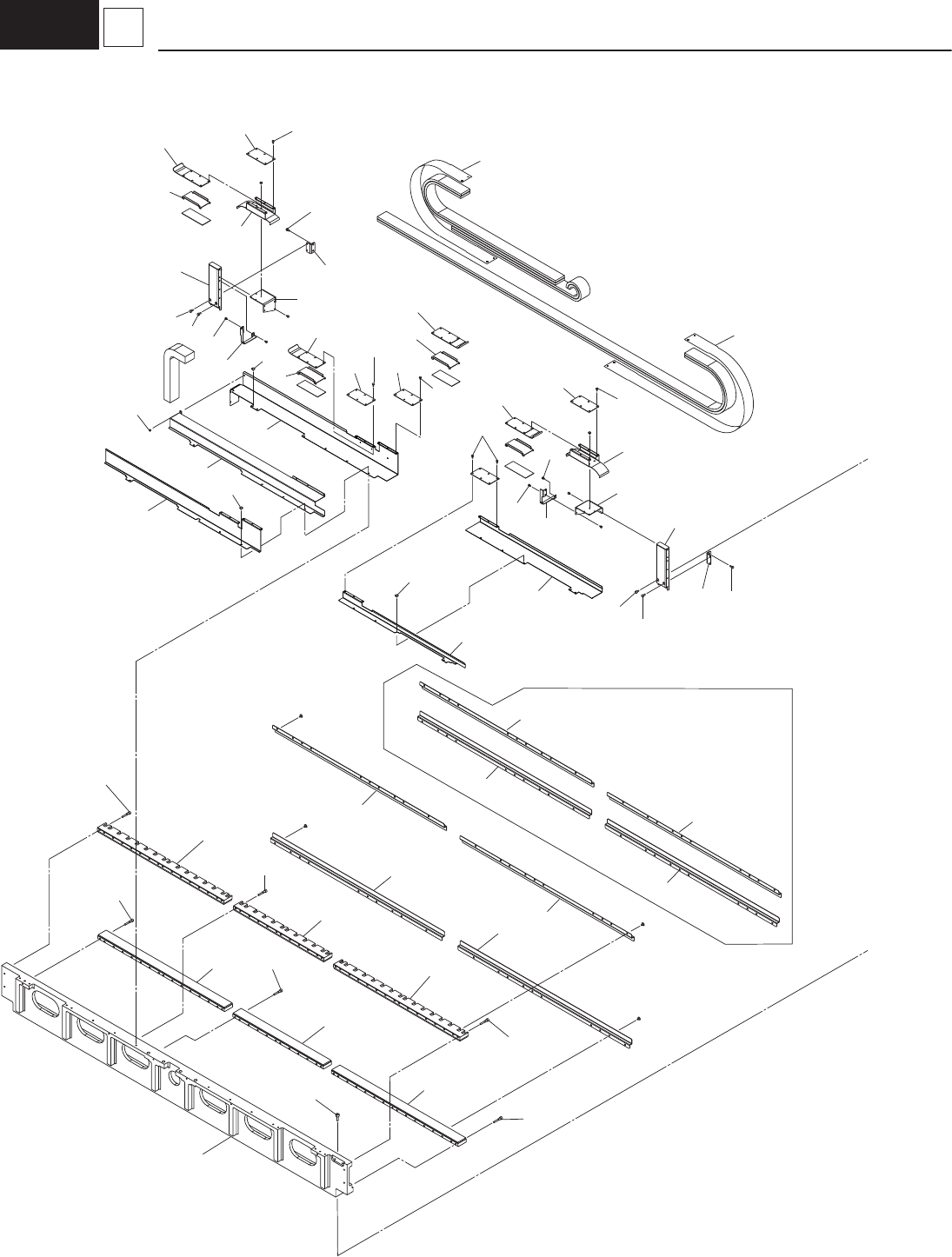

P-327-005_SIGMA-F8S - 第16页
– 10 – A1 2 Beam 1907-005 45 58 63 31 28 44 43 25 117 118 115 115 115 63 57 26 27 44 44 44 43 43 34 35 36 45 45 57 57 29 45 45 58 58 58 58 64 47 48 48 46 47 78 41 41 59 59 18 17 59 18 17 74 86 56 116 42 90 41 78 78 56 59…
– 9 –
UNIT
1907-005
No. Part No. Part Name Qty. Detail
5 KYY-M1319-00 COVER:FRAME TOP 1
6 91312-05008 BOLT,HEX.SOCKET HEAD 8
8 91312-08016 BOLT,HEX.SOCKET HEAD 6
12 KYB-M131F-00 SPRING_CATCHES 4
13 98702-03004 SCREW,FLAT HEAD 8
15 KYY-M11A1-XX NAME_PLATE_F8S 1
-00_JAPAN, -10_EN,
-20_CHAINA
29 91312-05012 BOLT,HEX.SOCKET HEAD 8
31 91312-08020 BOLT,HEX.SOCKET HEAD 66
36 92902-08200 WASHER,PLAIN 64
43 91312-08025 BOLT,HEX.SOCKET HEAD 16
67 92902-05200 WASHER,PLAIN 24
A6 KYA-M130N-00 BRACKET 2
A7 KYA-M130P-00 BRACKET 2
A8 KYA-M1328-00 BRACKET 2
A9 KYA-M132A-00 BRACKET 2
B1 KYY-M131V-00 BRACKET.F-COVER 3L 2
B2 KYY-M131W-00 BRACKET.F-COVER 3R 2
B5 KYY-M1314-00 ASSY-DOOR-SWITCH 2
B8 91312-04012 BOLT,HEX.SOCKET HEAD 4
B9 91312-05008 BOLT,HEX.SOCKET HEAD 28
C0 91312-05010 BOLT,HEX.SOCKET HEAD 8
C1 91312-06012 BOLT,HEX.SOCKET HEAD 4
C5 KYY-M131R-00 BRACKET 2
C6 91312-06014 BOLT,HEX.SOCKET HEAD 4
C7 91312-05014 BOLT,HEX.SOCKET HEAD 6
C8 92902-05100 WASHER,SPRING 16
C9 KYB-M65AA-00 ROHS_WASHER 4
C10 91312-05012 BOLT,HEX.SOCKET HEAD 4
D1 91312-05016 BOLT,HEX.SOCKET HEAD 16
E2 91312-08035 BOLT,HEX.SOCKET HEAD 8
E3 92902-08200 WASHER,PLAIN 8
E7 91312-08020 BOLT,HEX.SOCKET HEAD 8
E8 91312-05012 BOLT,HEX.SOCKET HEAD 6
E9 98502-05008 SCREW,PAN HEAD 1
F1 KYB-M65AA-00 ROHS_WASHER 6
G4 91312-05012 BOLT,HEX.SOCKET HEAD 6
G5 KYB-M65AA-00 ROHS_WASHER 6
