– 165 –

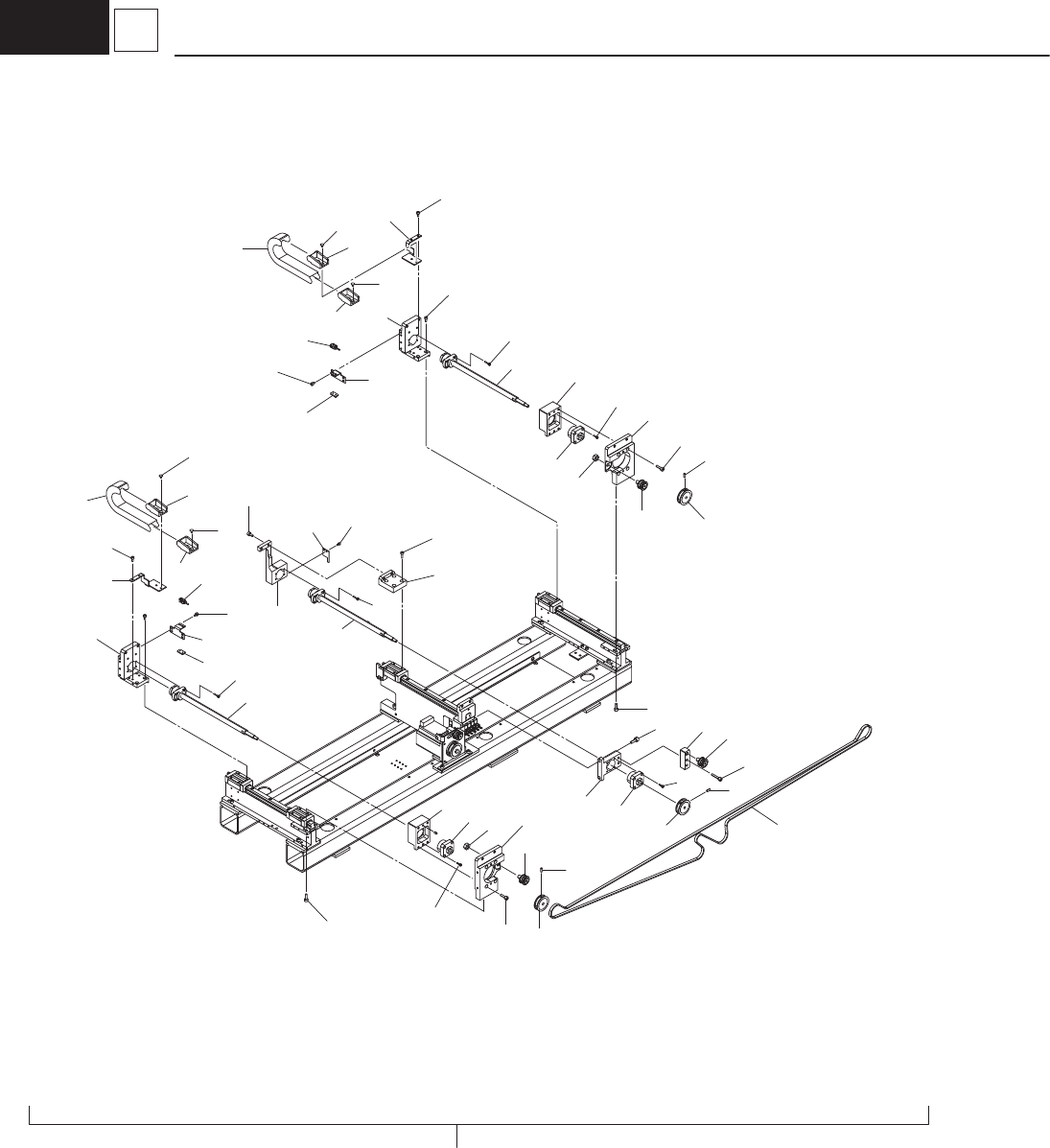

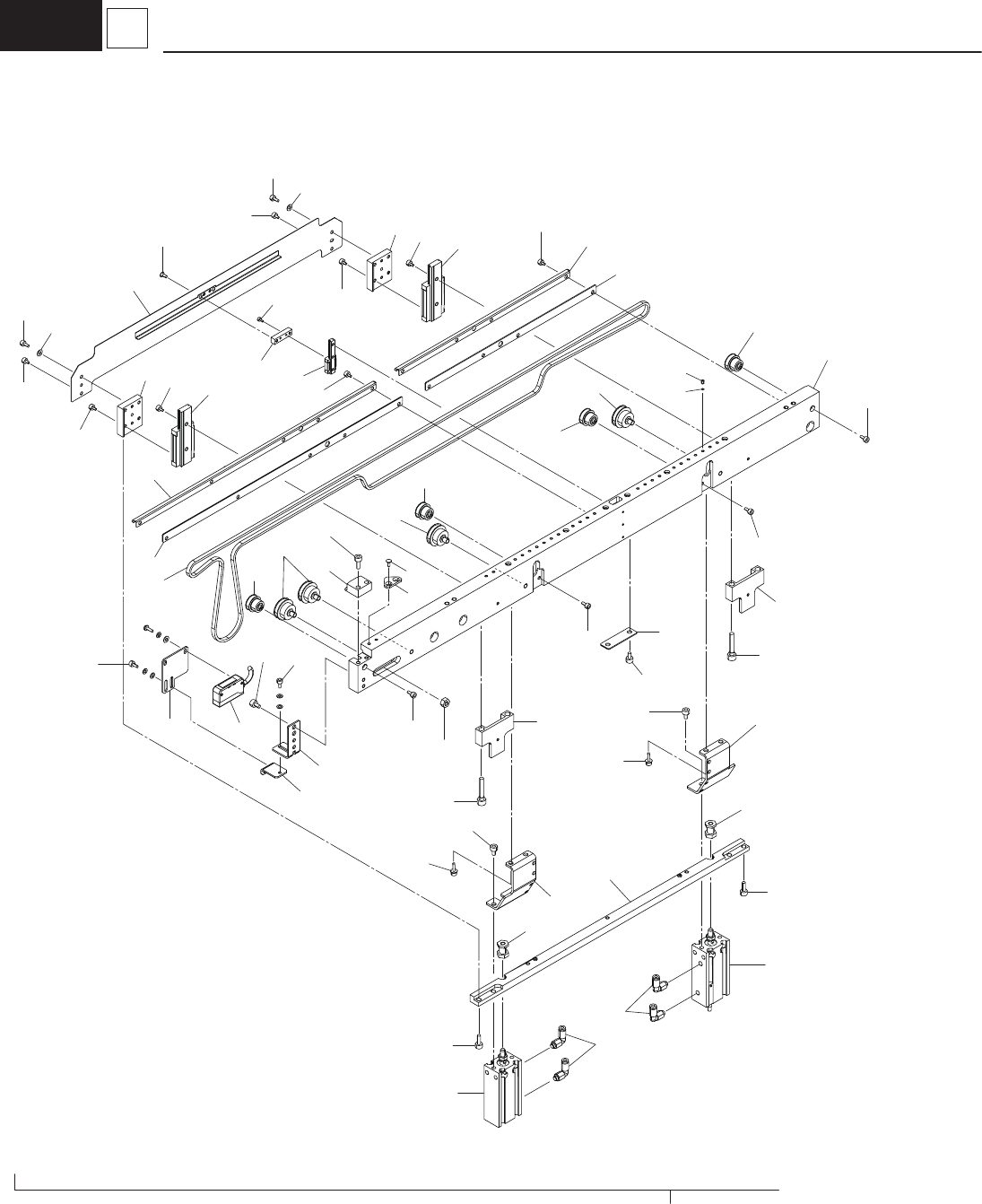

SINGLE CONVEYOR SECTION
1907-005
No. Part No. Part Name Qty. Detail
1 KYY-M914T-00 IDLER ASSY. 3
2 KYY-M9112-00 BLOCK.L 1
3 KYY-M9113-00 BLOCK.R 1
4 KYY-M9133-00 BALL_SCREW 3
5 KYA-M9157-00 SUPPORT_UNIT 3
6 KYA-M915R-00 PULLEY_TIMING 3
7 KYY-M915C-00 BLOCK 1
8 KYY-M9159-00 BLOCK 1
9 KYA-M914W-00 BELT_TIMING 1
10 KYY-M9139-00 BLOCK,HOLDER 2
11 KYY-M9110-00 BLOCK 2
12 KYY-M915D-00 BLOCK 1
13 KYY-M9136-00 BLOCK 1
14 KYY-M915J-00 BRACKET 1
15 KYA-M913J-00 BRACKET 1
16 KYA-M913K-00 BRACKET 1
17 KYA-M912V-00 CABLE_VEYOR 2
18 KYA-M912W-00 CABLE_VEYOR 2
19 KYA-M912X-00 CABLE_VEYOR 2
20 KYA-M9127-00 ASSY-BU-PIN-SENSOR 1
21 KYA-M915F-00 BRACKET_SENSOR 2
22 KYB-M91C8-00 BRACKET 2
23 91312-06016 BOLT,HEX.SOCKET HEAD 2
24 91312-05016 BOLT,HEX.SOCKET HEAD 10
25 91312-05014 BOLT,HEX.SOCKET HEAD 4
26 91312-05010 BOLT,HEX.SOCKET HEAD 2
27 91312-04008 BOLT,HEX.SOCKET HEAD 8
28 91312-04006 BOLT,HEX.SOCKET HEAD 4
29 91312-03010 BOLT,HEX.SOCKET HEAD 12
30 91312-03006 BOLT,HEX.SOCKET HEAD 2
31 98702-04006 SCREW,FLAT HEAD 8
32 95302-08600 NUT,HEXAGON 2
33 90990-02J027 SCREW,SET 6
34 90171-02J026 WASHER,PLAIN 4
35 91312-04012 BOLT,HEX.SOCKET HEAD 8
36 91312-03014 BOLT,HEX.SOCKET HEAD 12
37 KYY-M9102-00 DRIVE ASSY. 1
