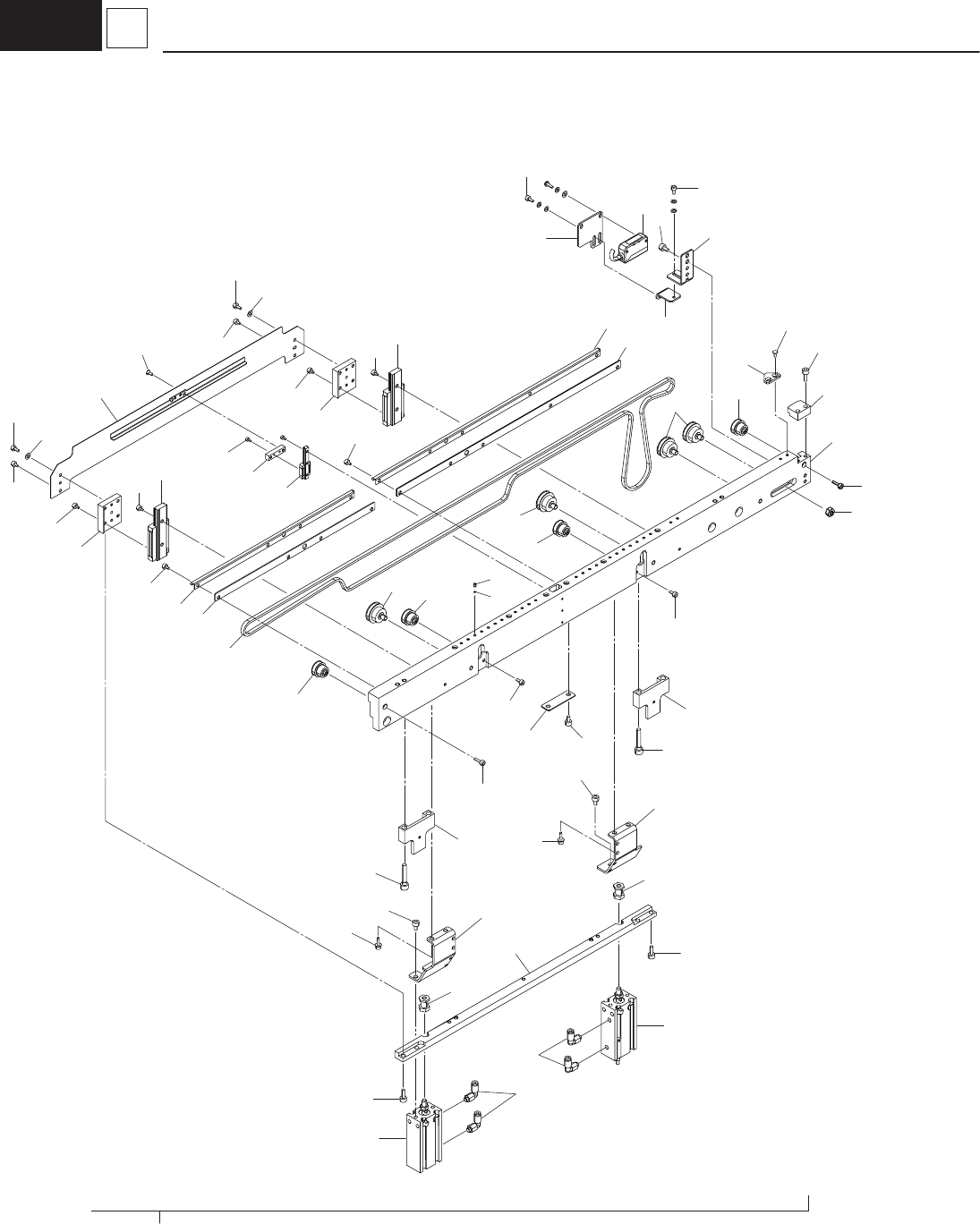

– 168 – H1 4 Fixed Chute 1907-005 305 305 305 305 338 348 343 345 306 306 306 312 325 346 338 315 316 327 347 317 302 334 334 334 334 333 324 323 330 303 310 336 313 335 346 335 337 333 337 319 332 333 333 320 332 335 30…
– 167 –
SINGLE CONVEYOR SECTION
1907-005
No. Part No. Part Name Qty. Detail
300 KYY-M9101-00 ASSY_CHUTE_FX 1
301 KYY-M910E-20 CHUTE_FX_L 1
302 KYY-M910F-20 CHUTE_FX_R 1
303 KYA-M912Y-00 GUIDE_LINEAR 4
304 KYA-M9130-00 GUIDE_LINEAR 2
305 KYB-M91AL-00 PULLEY_TIMING 8
306 KYY-M914U-A0 PULLEY_FLAT 8
307 KYA-M9122-00 ASSY-SENSOR-S1 1 B140
308 KYA-M9123-00 ASSY-SENSOR-S2 1 B141
309 KYA-M9124-00 ASSY-BOARD-SENSOR1 1 B301
310 KYA-M9125-00 ASSY-BOARD-SENSOR2 1 B304
311 KYA-M9137-00 BLOCK_Z_FX 2
312 KYA-M915S-00 BLOCK_FIXED-GUIDE 4
313 KYA-M915Y-00 BLOCK_GUIDE 2
314 KYY-M9152-20 BELT_TIMING 2
315 KYY-M915M-20 BRACKET_SENSOR 2
316 KYY-M915K-20 BRACKET 2
317 KYY-M915N-20 BRACKET_SENSOR 2
318 KYA-M912P-00 CYLINDER 2
319 KYA-M913H-00 BRACKET 2
320 KYA-M913N-00 BRACKET 2
321 KYA-M915U-00 NUT 4
322 KYA-M914N-00 PIPE FITTINGS 8
323 KYA-M915P-00 BLOCK_UNDER-CHUTE 4
324 KYA-M915V-00 BRACKET_UNDER-GUIDE 2
325 KYY-M913C-20 BRACKET, BELT 1
326 KYY-M913D-20 BRACKET, BELT 1
327 KYY-M9114-20 BRACKET, BELT 1
328 KYY-M9115-20 BRACKET, BELT 1
329 KYA-M9146-00 PLATE_Z_CLAMP 2
330 91312-05025 BOLT,HEX.SOCKET HEAD 8
331 91312-04010 BOLT,HEX.SOCKET HEAD 8
332 91312-04008 BOLT,HEX.SOCKET HEAD 8
333 91312-04006 BOLT,HEX.SOCKET HEAD 16
334 91312-03006 BOLT,HEX.SOCKET HEAD 16
335 91312-03004 BOLT,HEX.SOCKET HEAD 42
336 90112-02J004 BOLT,HEX.SOCKET HEAD 4
337 90990-01J136 BOLT,HEX.S/H WW 6
338 98702-03006 SCREW,FLAT HEAD 8
339 95302-05600 NUT,HEXAGON 2
340 90990-02J019 SCREW,SET 4
341 KYB-M91C4-00 SPACER 4
342 92902-03200 WASHER,PLAIN 4
343 KYY-M918W-20 BLOCK,CHUTE GUIDE 1 1
344 KYY-M918X-20 BLOCK,CHUTE GUIDE 2 1
345 KYF-M9135-01 PLATE,EDGE 2 2
346 KYY-M9194-00 BRACKET 2
347 KYY-M9195-00 BRACKET 2
348 91312-04016 BOLT,HEX.SOCKET HEAD 4
– 169 –
SINGLE CONVEYOR SECTION
1907-005
No. Part No. Part Name Qty. Detail
300 KYY-M9101-00 ASSY_CHUTE_FX 1
301 KYY-M910E-20 CHUTE_FX_L 1
302 KYY-M910F-20 CHUTE_FX_R 1
303 KYA-M912Y-00 GUIDE_LINEAR 4
304 KYA-M9130-00 GUIDE_LINEAR 2
305 KYB-M91AL-00 PULLEY_TIMING 8
306 KYY-M914U-A0 PULLEY_FLAT 8
307 KYA-M9122-00 ASSY-SENSOR-S1 1 B140
308 KYA-M9123-00 ASSY-SENSOR-S2 1 B141
309 KYA-M9124-00 ASSY-BOARD-SENSOR1 1 B301
310 KYA-M9125-00 ASSY-BOARD-SENSOR2 1 B304
311 KYA-M9137-00 BLOCK_Z_FX 2
312 KYA-M915S-00 BLOCK_FIXED-GUIDE 4
313 KYA-M915Y-00 BLOCK_GUIDE 2
314 KYY-M9152-20 BELT_TIMING 2
315 KYY-M915M-20 BRACKET_SENSOR 2
316 KYY-M915K-20 BRACKET 2
317 KYY-M915N-20 BRACKET_SENSOR 2
318 KYA-M912P-00 CYLINDER 2
319 KYA-M913H-00 BRACKET 2
320 KYA-M913N-00 BRACKET 2
321 KYA-M915U-00 NUT 4
322 KYA-M914N-00 PIPE FITTINGS 8
323 KYA-M915P-00 BLOCK_UNDER-CHUTE 4
324 KYA-M915V-00 BRACKET_UNDER-GUIDE 2
325 KYY-M913C-20 BRACKET, BELT 1
326 KYY-M913D-20 BRACKET, BELT 1
327 KYY-M9114-20 BRACKET, BELT 1
328 KYY-M9115-20 BRACKET, BELT 1
329 KYA-M9146-00 PLATE_Z_CLAMP 2
330 91312-05025 BOLT,HEX.SOCKET HEAD 8
331 91312-04010 BOLT,HEX.SOCKET HEAD 8
332 91312-04008 BOLT,HEX.SOCKET HEAD 8
333 91312-04006 BOLT,HEX.SOCKET HEAD 16
334 91312-03006 BOLT,HEX.SOCKET HEAD 16
335 91312-03004 BOLT,HEX.SOCKET HEAD 42
336 90112-02J004 BOLT,HEX.SOCKET HEAD 4
337 90990-01J136 BOLT,HEX.S/H WW 6
338 98702-03006 SCREW,FLAT HEAD 8
339 95302-05600 NUT,HEXAGON 2
340 90990-02J019 SCREW,SET 4
341 KYB-M91C4-00 SPACER 4
342 92902-03200 WASHER,PLAIN 4
343 KYY-M918W-20 BLOCK,CHUTE GUIDE 1 1
344 KYY-M918X-20 BLOCK,CHUTE GUIDE 2 1
345 KYF-M9135-01 PLATE,EDGE 2 2
346 KYY-M9194-00 BRACKET 2
347 KYY-M9195-00 BRACKET 2
348 91312-04016 BOLT,HEX.SOCKET HEAD 4
