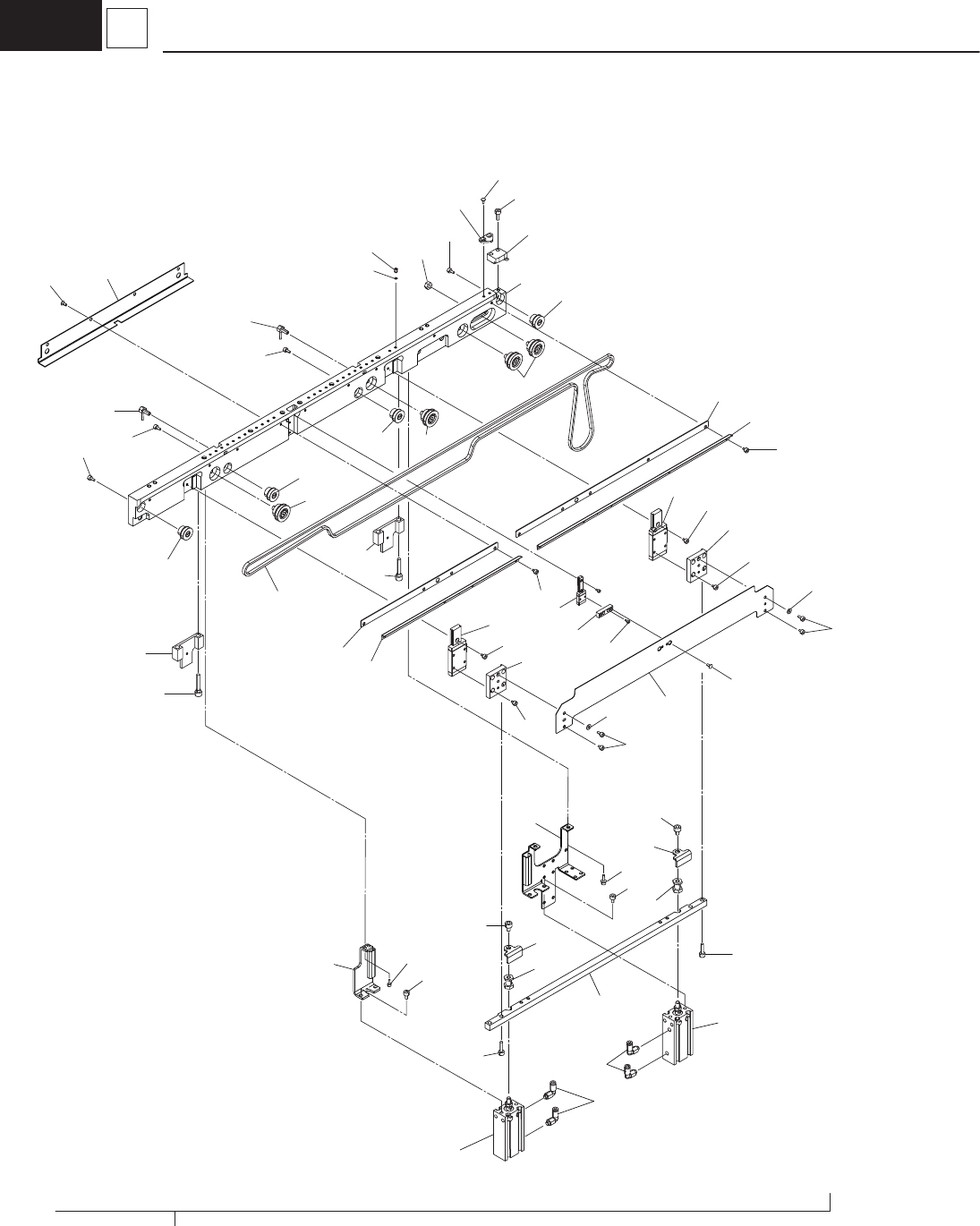

SINGLE CONVEYOR SECTION
1907-005
No. Part No. Part Name Qty. Detail
400 KYY-M9105-20 ASSY_CHUTE_MV 1
401 KYY-M910G-20 CHUTE_MV_L 1
402 KYY-M910H-20 CHUTE_MV_R 1
403 KYA-M912Y-00 GUIDE_LINEAR 4
404 KYA-M9130-00 GUIDE_LINEAR 2
405 KYB-M91AL-00 PULLEY_TIMING 8
406 KYY-M914U-A0 PULLEY_FLAT 4
407 KYA-M9134-00 BLOCK 2
408 KYA-M915T-00 BLOCK_MOVED-GUIDE 4
409 KYA-M915Y-00 BLOCK_GUIDE 2
410 KYY-M912R-00 SENSOR_FIBER 4
411 KYY-M9152-20 TIMING BELT 2
412 KYA-M913P-00 BRACKET 1
413 KYA-M913T-00 BRACKET 1
414 KYA-M913U-00 BRACKET 1
415 KYA-M913R-00 BRACKET_CYLINDER 1
416 KYA-M912P-00 CYLINDER 4
417 KYA-M915U-00 NUT 4
418 KYA-M914N-00 PIPE FITTINGS 8
419 KYA-M915P-00 BLOCK_UNDER-CHUTE 4
420 KYY-M9191-20 COVER 2
421 KYY-M913C-20 BRACKET, BELT 1
422 KYY-M913D-20 BRACKET, BELT 1
423 KYY-M9114-20 BRACKET, BELT 1
424 KYY-M9115-20 BRACKET, BELT 1
425 KYA-M9146-00 PLATE_Z_CLAMP 2
426 KYA-M9160-00 LOCK-NUT_CYLINDER 4
427 KYY-M918W-20 BLOCK,CHUTE GUIDE 1 1
428 KYY-M918X-20 BLOCK,CHUTE GUIDE 2 1
429 KYF-M9135-01 PLATE,EDGE 2 2
430 KYY-M9194-00 BRACKET 2
431 KYY-M9195-00 BRACKET 2
432 91312-05025 BOLT,HEX.SOCKET HEAD 8
433 91312-04014 BOLT,HEX.SOCKET HEAD 8
434 91312-04008 BOLT,HEX.SOCKET HEAD 8
435 91312-04006 BOLT,HEX.SOCKET HEAD 4
436 91312-03006 BOLT,HEX.SOCKET HEAD 20
437 91312-03004 BOLT,HEX.SOCKET HEAD 42
438 90112-02J004 BOLT,HEX.SOCKET HEAD 4
439 98702-03006 SCREW,FLAT HEAD 16
440 95302-05600 NUT,HEXAGON 2
441 90990-02J019 SCREW,SET 4
442 KYB-M91C4-00 SPACER 4
443 92902-03200 WASHER,PLAIN 4
444 91312-05006 BOLT,HEX.SOCKET HEAD 4
445 91312-04016 BOLT,HEX.SOCKET HEAD 4
