– 174 – H1 6 Drive Chute 1907-005 5 1-1 1-2 1 19 18 16 17 15 14 20 22 7 6 2-3 2-1 2 3-3 3-2 13 6 15 6 12 15 3-2 3-1 3-3 3 7 15 10 2-3 2-1 2-2 20 21 2 22 6 14 17 1 1-1 1-2 1-3 5 4 19 19 16 15 18 3-4 20 20 21 21 15 11 3-1 …

100%1 / 230
– 173 –
SINGLE CONVEYOR SECTION
1907-005
No. Part No. Part Name Qty. Detail
400 KYY-M9105-20 ASSY_CHUTE_MV 1
401 KYY-M910G-20 CHUTE_MV_L 1
402 KYY-M910H-20 CHUTE_MV_R 1
403 KYA-M912Y-00 GUIDE_LINEAR 4
404 KYA-M9130-00 GUIDE_LINEAR 2
405 KYB-M91AL-00 PULLEY_TIMING 8
406 KYY-M914U-A0 PULLEY_FLAT 4
407 KYA-M9134-00 BLOCK 2
408 KYA-M915T-00 BLOCK_MOVED-GUIDE 4
409 KYA-M915Y-00 BLOCK_GUIDE 2
410 KYY-M912R-00 SENSOR_FIBER 4
411 KYY-M9152-20 TIMING BELT 2
412 KYA-M913P-00 BRACKET 1
413 KYA-M913T-00 BRACKET 1
414 KYA-M913U-00 BRACKET 1
415 KYA-M913R-00 BRACKET_CYLINDER 1
416 KYA-M912P-00 CYLINDER 4
417 KYA-M915U-00 NUT 4
418 KYA-M914N-00 PIPE FITTINGS 8
419 KYA-M915P-00 BLOCK_UNDER-CHUTE 4
420 KYY-M9191-20 COVER 2
421 KYY-M913C-20 BRACKET, BELT 1
422 KYY-M913D-20 BRACKET, BELT 1
423 KYY-M9114-20 BRACKET, BELT 1
424 KYY-M9115-20 BRACKET, BELT 1
425 KYA-M9146-00 PLATE_Z_CLAMP 2
426 KYA-M9160-00 LOCK-NUT_CYLINDER 4
427 KYY-M918W-20 BLOCK,CHUTE GUIDE 1 1
428 KYY-M918X-20 BLOCK,CHUTE GUIDE 2 1
429 KYF-M9135-01 PLATE,EDGE 2 2
430 KYY-M9194-00 BRACKET 2
431 KYY-M9195-00 BRACKET 2
432 91312-05025 BOLT,HEX.SOCKET HEAD 8
433 91312-04014 BOLT,HEX.SOCKET HEAD 8
434 91312-04008 BOLT,HEX.SOCKET HEAD 8
435 91312-04006 BOLT,HEX.SOCKET HEAD 4
436 91312-03006 BOLT,HEX.SOCKET HEAD 20
437 91312-03004 BOLT,HEX.SOCKET HEAD 42
438 90112-02J004 BOLT,HEX.SOCKET HEAD 4
439 98702-03006 SCREW,FLAT HEAD 16
440 95302-05600 NUT,HEXAGON 2
441 90990-02J019 SCREW,SET 4
442 KYB-M91C4-00 SPACER 4
443 92902-03200 WASHER,PLAIN 4
444 91312-05006 BOLT,HEX.SOCKET HEAD 4
445 91312-04016 BOLT,HEX.SOCKET HEAD 4
– 174 –

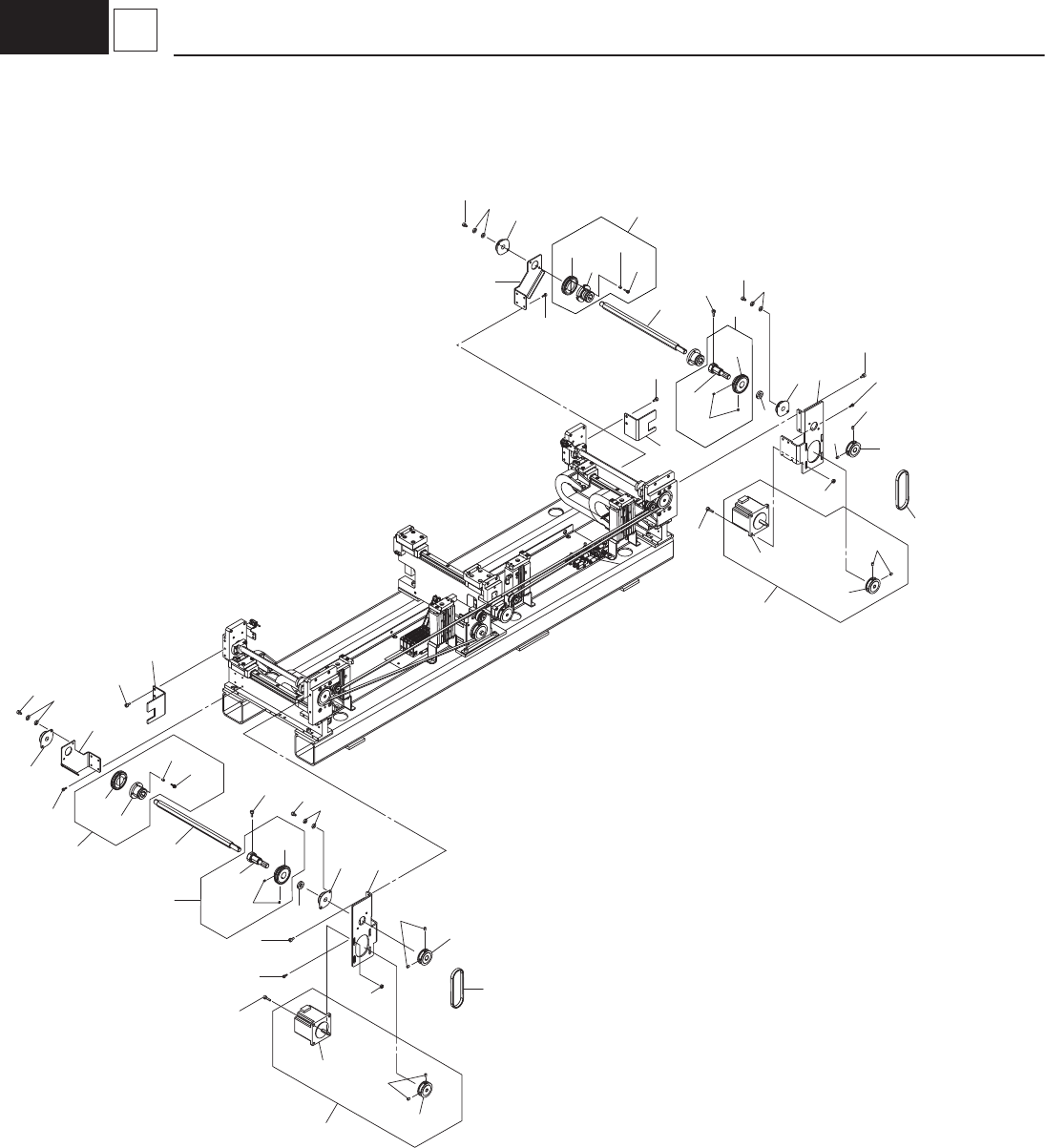

H1
6 Drive Chute
1907-005
5
1-1
1-2
1
19
18
16
17
15
14
20
22
7
6
2-3
2-1
2
3-3
3-2
13
6
15
6
12
15
3-2
3-1
3-3
3
7
15
10
2-3
2-1
2-2
20
21
2
22
6
14
17
1
1-1
1-2
1-3
5
4
19
19
16
15
18
3-4
20
20
21
21
15
11
3-1
3-4
3
2-2
4
1-3
26
9
21
8
– 175 –
SINGLE CONVEYOR SECTION
1907-005
No. Part No. Part Name Qty. Detail
1 KYY-M919T-00 MOTOR ASSY. 2
1-01 KYB-M917X-00 MOTOR_STEPPING 1
1-02 KYB-M91BP-00 PULLEY_TIMING 1
1-03 90990-02J026 SCREW,SET 2
2 KYY-M919U-00 PULLEY FIX ASSY. 2
2-01 KYB-M91AY-00 PULLEY_TIMING 1
2-02 KYY-M91E2-00 SHAFT,SPLINE 1
2-03 90990-02J024 SCREW,SET 2
3 KYY-M919V-00 PULLEY MOVE ASSY. 2
3-01 KYY-M91AX-00 PULLEY_TIMING 1
3-02 KLW-M9108-01 COLLAR,CONVEYOR 1
3-03 90990-41J176 COLLAR 4
3-04 91312-03010 BOLT,HEX.SOCKET HEAD 4
4 KYB-M91AU-00 PULLEY_TIMING 2
5 KYB-M91BA-00 BELT_TIMING 2
6 KH2-M9121-000 BEARING 4
7 KYY-M91E3-00 SPLINE 2
8 KYY-M91E1-20 BRACKET,MOTOR-R 1
9 KYY-M91E1-30 BRACKET,MOTOR-L 1
10 KYY-M91E5-20 BRKT,.SPLINE-R 1
11 KYY-M91E5-30 BRKT,.SPLINE-L 1
12 KYY-M91E6-20 BRACKET,FIX-R 1
13 KYY-M91E6-30 BRACKET,FIX-L 1
14 90990-41J006 COLLAR 2
15 91312-04008 BOLT,HEX.SOCKET HEAD 8
16 91312-03008 BOLT,HEX.SOCKET HEAD 16
17 91312-04014 BOLT,HEX.SOCKET HEAD 4
18 95302-04600 NUT,HEXAGON 4
19 90990-02J026 SCREW,SET 4
20 91312-04006 BOLT,HEX.SOCKET HEAD 8
21 92902-04600 WASHER,PLAIN 16
22 91312-04010 BOLT,HEX.SOCKET HEAD 2
