– 183 – DU AL CONVEY OR SE CT ION 1907-005 No. Part No. Part Name Qty . Detail 1 KYY -M9105-00 CHUTE MOVE ASSY . 2 2 KYY -M9101-00 CHUTE FIX ASSY . 2 3 KY A-M910S-00 ASSY_BACKUP 2 4 KY A-M913E-00 PLA TE_BACK_UP 4 5 KY A-…

100%1 / 230
– 182 –
H2
1 Back-up Base, Fixed Screw
1907-005

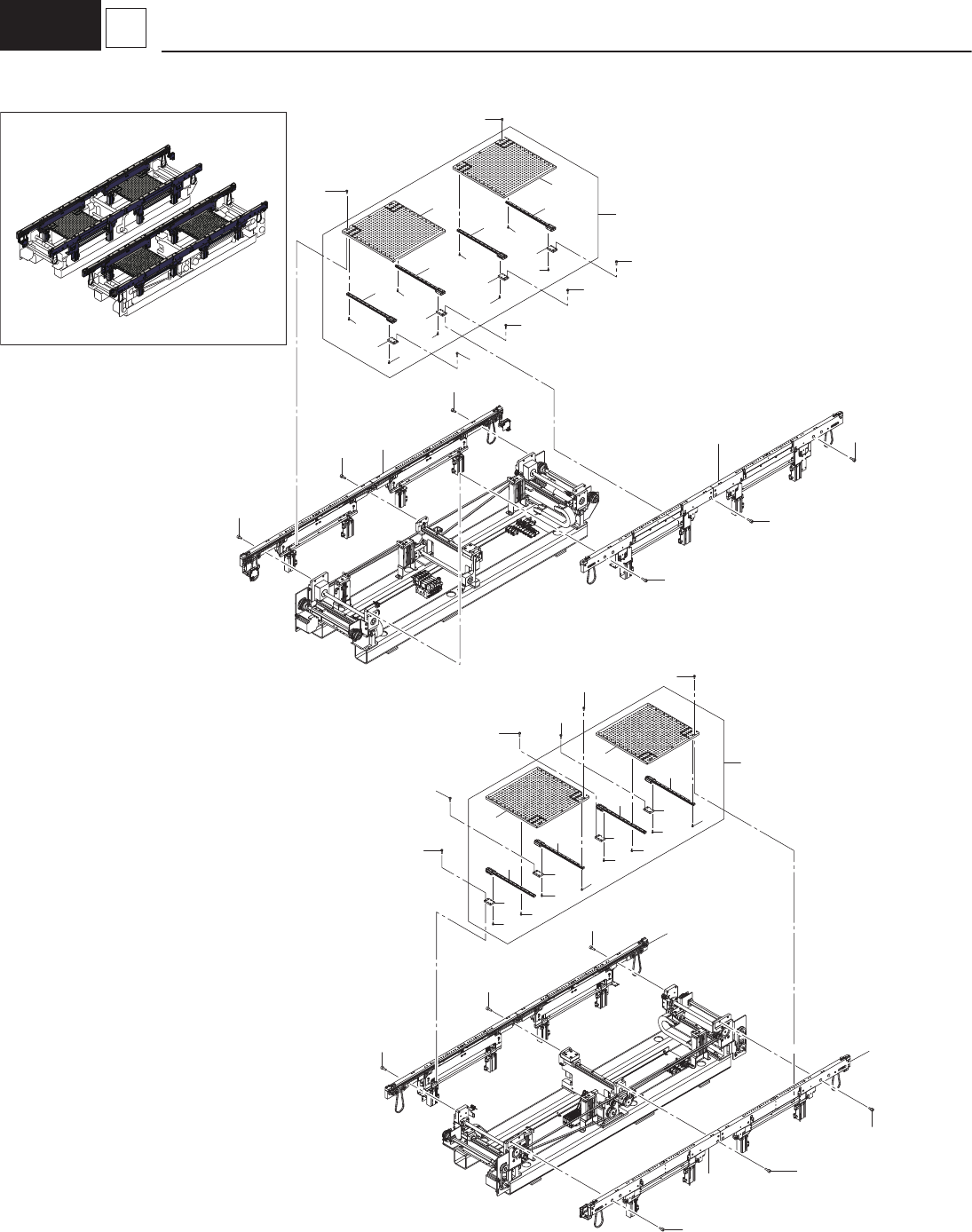

H2 DUAL CONVEYOR SECTION
10
10
10
10
4
4
4
4
5
8
8
8
9
8
6
6
6
6
6
7
7
7
7
7
6
6
6
9
9
9
11
11
11
11
11
11
11
11
3
3
9
9
9
8
9
5
5
5
5
5
5
5
8
8
8
1
1
2
2
7
7
7
7
7
7
7
A LANE
B LANE
A LANE
B LANE
– 183 –
DUAL CONVEYOR SECTION
1907-005
No. Part No. Part Name Qty. Detail
1 KYY-M9105-00 CHUTE MOVE ASSY. 2
2 KYY-M9101-00 CHUTE FIX ASSY. 2
3 KYA-M910S-00 ASSY_BACKUP 2
4 KYA-M913E-00 PLATE_BACK_UP 4
5 KYA-M913A-00 GUIDE_LINEAR 8
6 KYA-M9158-00 BLOCK 8
7 91312-06010 BOLT,HEX.SOCKET HEAD 24
8 91317-03008 BOLT HEX.SOCKET HEAD 96
9 91312-03008 BOLT,HEX.SOCKET HEAD 36
10 91317-04008 BOLT HEX.SOCKET HEAD 12
11 91312-04012 BOLT,HEX.SOCKET HEAD 16
– 184 –
H2
2 Base
1907-005
131
113
131
131
134
134
134
134
131
131
131
134
110
110
118
118
126
126
126
127
122
126
115
119
115
114
114
125
125
125
125
126
127
119
138
132
132
132
106
106
106
106
103
106
104
104
129
129
129
107
101
106
129
105
139
128
108
117
119
119
108
120
121
118
118
117
117
117
109
138
139
128
109
120
121
134
134
112
112
112
112
123
129
100
100
134
116
136
130
124
137
138
130
113
113
124
137
116
133
135
135
133
111
111
113
113
113
123
129
129
129
105
105
102
101
102
107
107
104
129
Different parts
129
129
A LANE
B LANE
A LANE
B LANE
103
