– 187 – DU AL CONVEY OR SE CT ION 1907-005 No. Part No. Part Name Qty . Detail 1 KYY -M914T -00 IDLER ASSY . 4 2 90990-01J128 BOL T ,HEX.SOCKET HEAD 4 3 90933-03J698 BEARING_RADIAL 8 4 KYY -M914Y -00 COLLAR 4 5 KYY -M913…

100%1 / 230
– 186 –
H2
3 Width Drive Both Side
1907-005
28
6
9
5
8
32
2
28
6
9
5
32
29
29
13
13
14
14
12
12
11
18
24
26
31
7
23
20
21
22
30
24
10
18
31
23
26
24
30
21
27
28
6
9
5
32
28
6
9
5
32
29
29
13
14
12
29
29
13
14
12
24
10
30
27
24
30
24
27
21
26
26
20
22
23
22
21
31
7
7
8
4
3
2
4
3
2
1
1
17
19
17
16
16
18
11
15
15
18
31
23
25
25
7
15
15
25
25
22
16
16
17
17
3
4
1
1
2
3
4
24
27
24
19
A LANE
B LANE
A LANE
B LANE
– 187 –

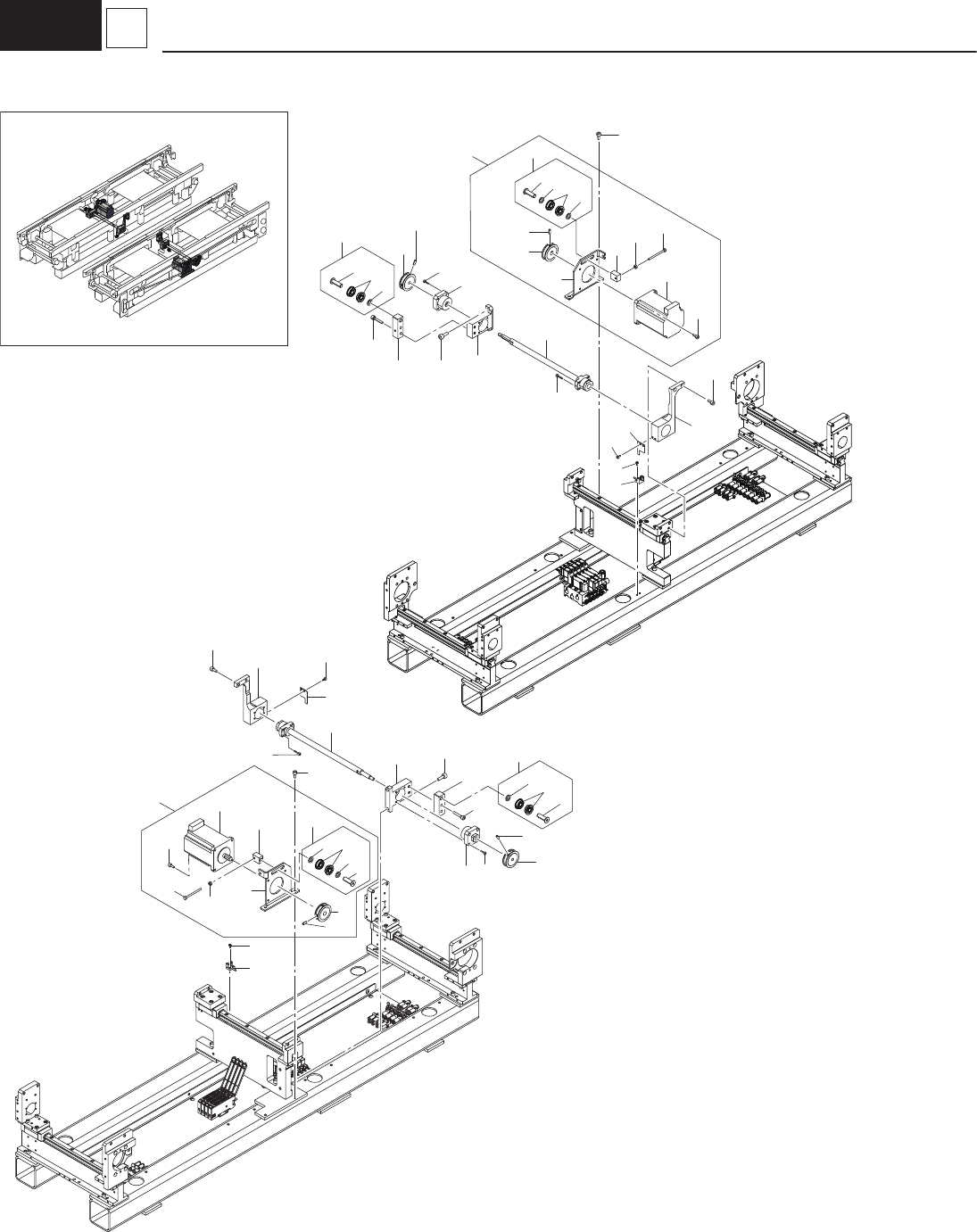

DUAL CONVEYOR SECTION
1907-005
No. Part No. Part Name Qty. Detail
1 KYY-M914T-00 IDLER ASSY. 4
2 90990-01J128 BOLT,HEX.SOCKET HEAD 4
3 90933-03J698 BEARING_RADIAL 8
4 KYY-M914Y-00 COLLAR 4
5 KYY-M9133-00 BALL SCREW 4
6 KYA-M9157-00 SUPPORT_UNIT 4
7 KYA-M915R-00 PULLEY_TIMING 4
8 KYA-M914W-00 BELT_TIMING 2
9 KYY-M9139-00 BLOCK,HOLDER 4
10 KYY-M913J-00 BRACKET 2
11 KYA-M913K-00 BRACKET 2
12 KYA-M912V-00 CABLE_VEYOR 4
13 KYA-M912W-00 CABLE_VEYOR 4
14 KYA-M912X-00 CABLE_VEYOR 4
15 KYA-M9127-00 ASSY-BU-PIN-SENSOR 4
16 KYA-M915F-00 BRACKET_SENSOR 4
17 KYB-M91C8-00 BRACKET 4
18 KYY-M911R-00 BRACKET 2
19 KYY-M9112-00 BLOCK,L 2
20 KYY-M9113-00 BLOCK,R 2
21 KYY-M9110-00 BLOCK 4
22 91312-05014 BOLT,HEX.SOCKET HEAD 8
23 91312-05016 BOLT,HEX.SOCKET HEAD 16
24 91312-04008 BOLT,HEX.SOCKET HEAD 16
25 91312-04006 BOLT,HEX.SOCKET HEAD 8
26 91312-04010 BOLT,HEX.SOCKET HEAD 4
27 91312-04012 BOLT,HEX.SOCKET HEAD 8
28 91312-03010 BOLT HEX,SOCKET HEAD 16
29 98702-04006 SCREW,FLAT HEAD 16
30 95302-08600 NUT, HEXAGON 4
31 90990-02J027 SCREW,SET 8
32 91312-03014 BOLT,HEX.SOCKET HEAD 8
– 188 –
H2
4 Width Drive Center
1907-005
2
3
4
5
1
3
4
5
1
5
21
11
24
12
6
9
19
10
20
7
23
8
28
25
26
4
3
2
5
14
22
13
27
29
15
18
30
16
28
17
4
3
26
27
29
14
15
16
28
8
28
23
10
20
19
9
6
25
21
11
12
24
30
18
22
17
5
7
5
13
A LANE
B LANE
A LANE
B LANE
