– 191 –

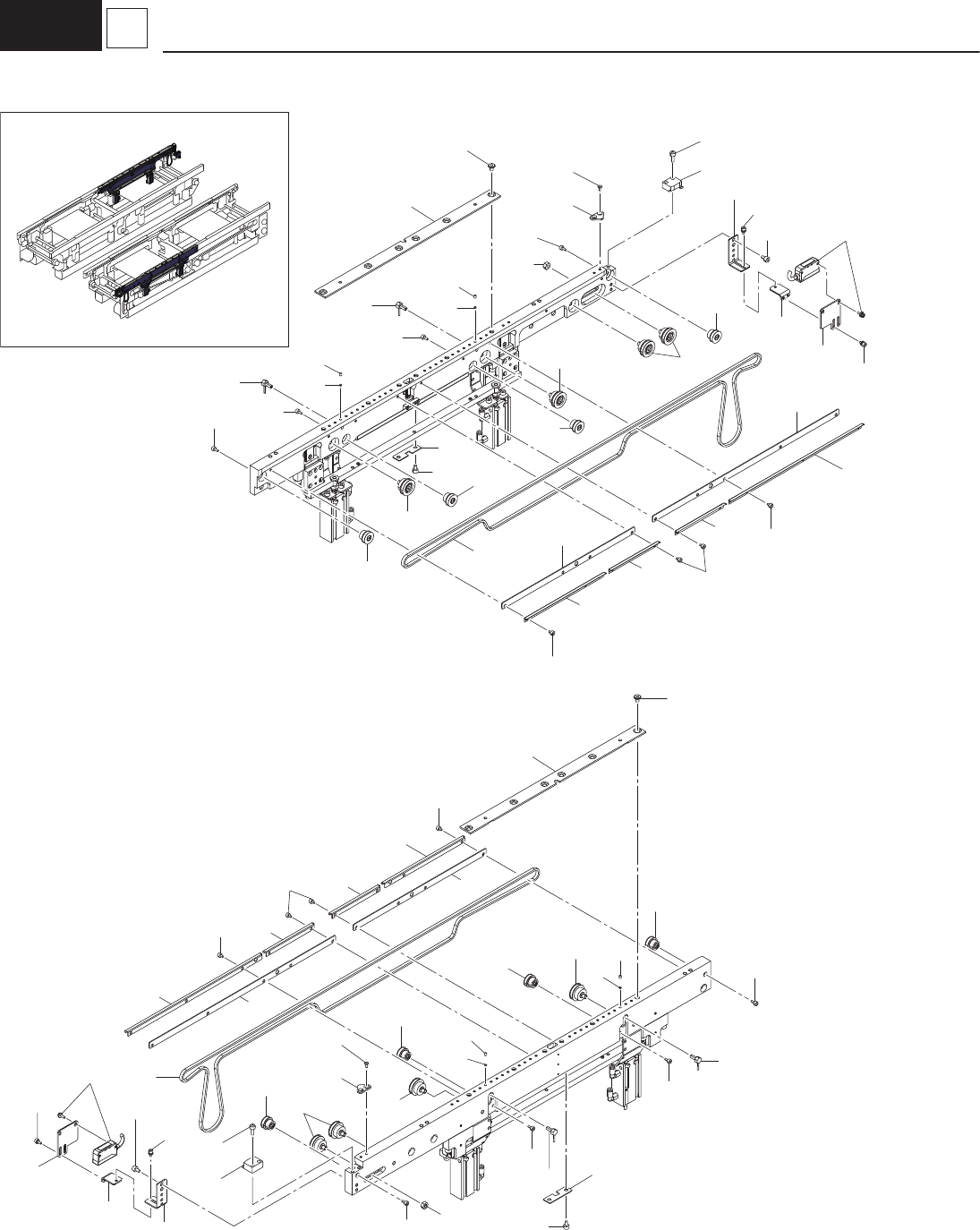

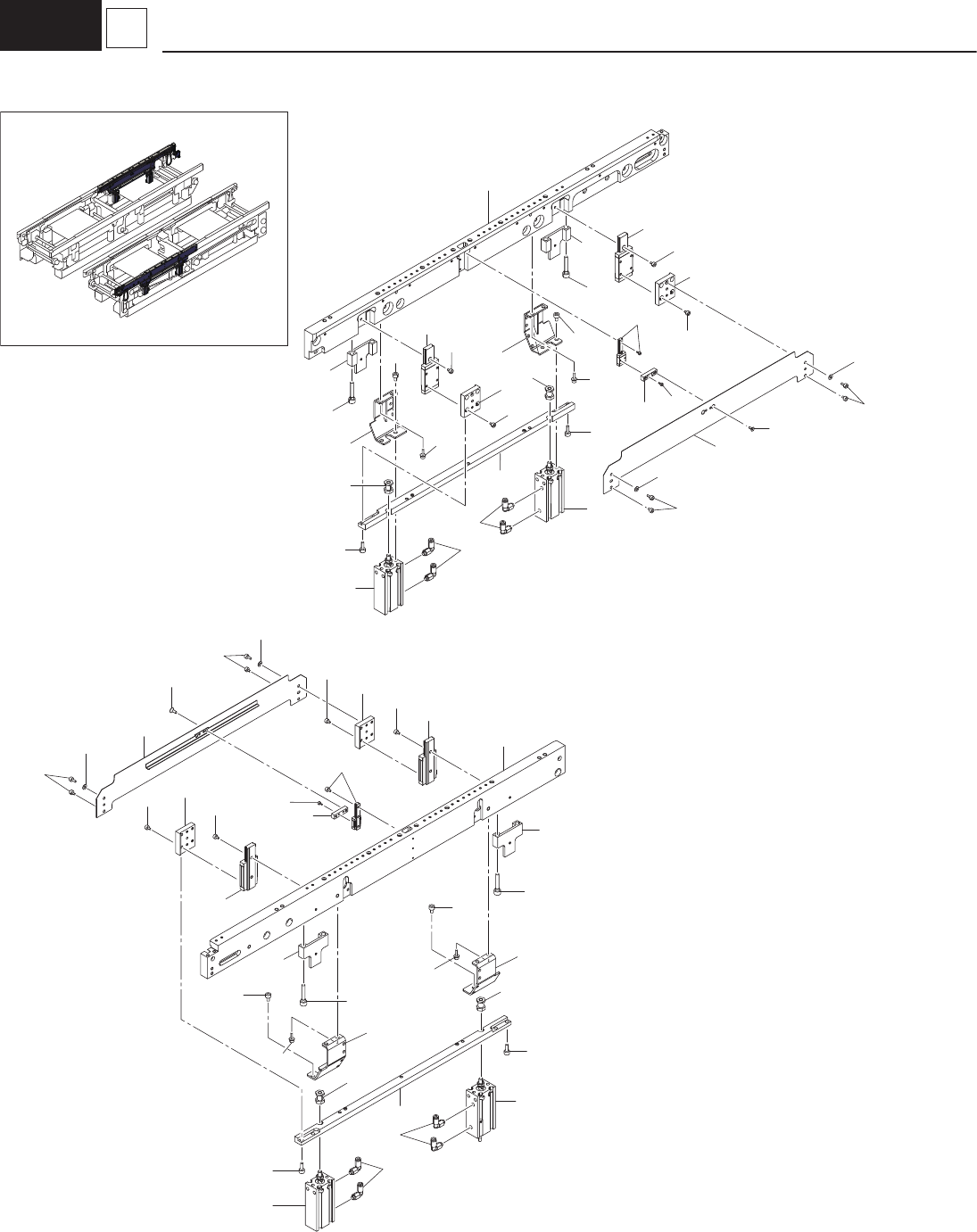

DUAL CONVEYOR SECTION
1907-005
No. Part No. Part Name Qty. Detail
300 KYB-M91AL-00 PULLEY_TIMING 8
301 KYY-M914U-A0 PULLEY_FLAT 8
302 KYY-M9152-20 TIMING BELT 2
303 KYY-M9115-40 BRACKET,BELT 2
304 KYY-M913D-40 BRACKET,BELT 2
305 KYY-M913B-00 BRACKET,BELT 4
306 KYY-M915V-20 BRKT.,GUIDE UNDER 1 2
307 KYB-M91C4-00 SPACER 4
308 KYY-M918X-20 BLOCK,CHUTE GUIDE 2 1
309 KLF-M9135-01 PLATE,EDGE 2 2
310 KYY-M9194-00 BRACKET 2
311 KYY-M9195-00 BRACKET 2
312 KYY-M912R-00 SENSOR,FIBER 4
313 KYA-M9124-00 ASSY-BOARD-SENSOR1 1 with SCREW.
314 KYY-M915M-20 BRACKET,SENSOR 2
315 KYY-M915K-20 BRACKET 2
316 KYY-M915N-20 BRACKET,SENSOR 2 2
317 KYY-M9138-20 PLATE 2
318 90990-01J127 BOLT,HEX.SOCKET HEAD 12
319 91312-03006 BOLT,HEX.SOCKET HEAD 8
320 91312-03004 BOLT,HEX.SOCKET HEAD 18
321 91312-04006 BOLT,HEX.SOCKET HEAD 8
322 91312-04016 BOLT,HEX.SOCKET HEAD 4
323 90990-01J136 BOLT,HEX.S/H WW 6
324 98702-03006 SCREW, FLAT HEAD 8
325 95302-05600 NUT, HEXAGON 2
326 90990-02J019 SCREW,SET 4
