– 193 – DU AL CONVEY OR SE CT ION 1907-005 No. Part No. Part Name Qty . Detail 326 KYY -M910E-20 CHUTE,FX-L 1 327 KY A-M912Y -00 GUIDE_LINEAR 4 328 KY A-M9130-00 GUIDE_LINEAR 2 329 KY A-M9122-00 ASSY -SENSOR-S1 1 330 KY …
– 193 –
DUAL CONVEYOR SECTION
1907-005
No. Part No. Part Name Qty. Detail
326 KYY-M910E-20 CHUTE,FX-L 1
327 KYA-M912Y-00 GUIDE_LINEAR 4
328 KYA-M9130-00 GUIDE_LINEAR 2
329 KYA-M9122-00 ASSY-SENSOR-S1 1
330 KYA-M9137-00 BLOCK_Z_FX 2
331 KYA-M915S-00 BLOCK_FIXED-GUIDE 4
332 KYA-M915Y-00 BLOCK_GUIDE 2
333 KYA-M912P-00 CYLINDER 2
334 KYA-M913H-00 BRACKET 2
335 KYA-M913N-00 BRACKET 2
336 KYA-M915U-00 NUT 4
337 KYA-M914N-00 PIPE FITTINGS 8
338 KYA-M915P-00 BLOCK_UNDER-CHUTE 4
339 KYA-M9146-00 PLATE_Z_CLAMP 2
340 91312-05025 BOLT,HEX.SOCKET HEAD 8
341 91312-04010 BOLT HEX,SOCKET HEAD 8
342 91312-04008 BOLT,HEX.SOCKET HEAD 4
343 91312-04006 BOLT,HEX.SOCKET HEAD 4
344 91312-03004 BOLT,HEX.SOCKET HEAD 24
345 91312-03006 BOLT,HEX.SOCKET HEAD 8
346 98702-03006 SCREW, FLAT HEAD 4
347 90112-02J004 BOLT,HEX.SOCKET HEAD 4
348 92902-03200 WASHER, PLAIN 4
– 194 –
H2

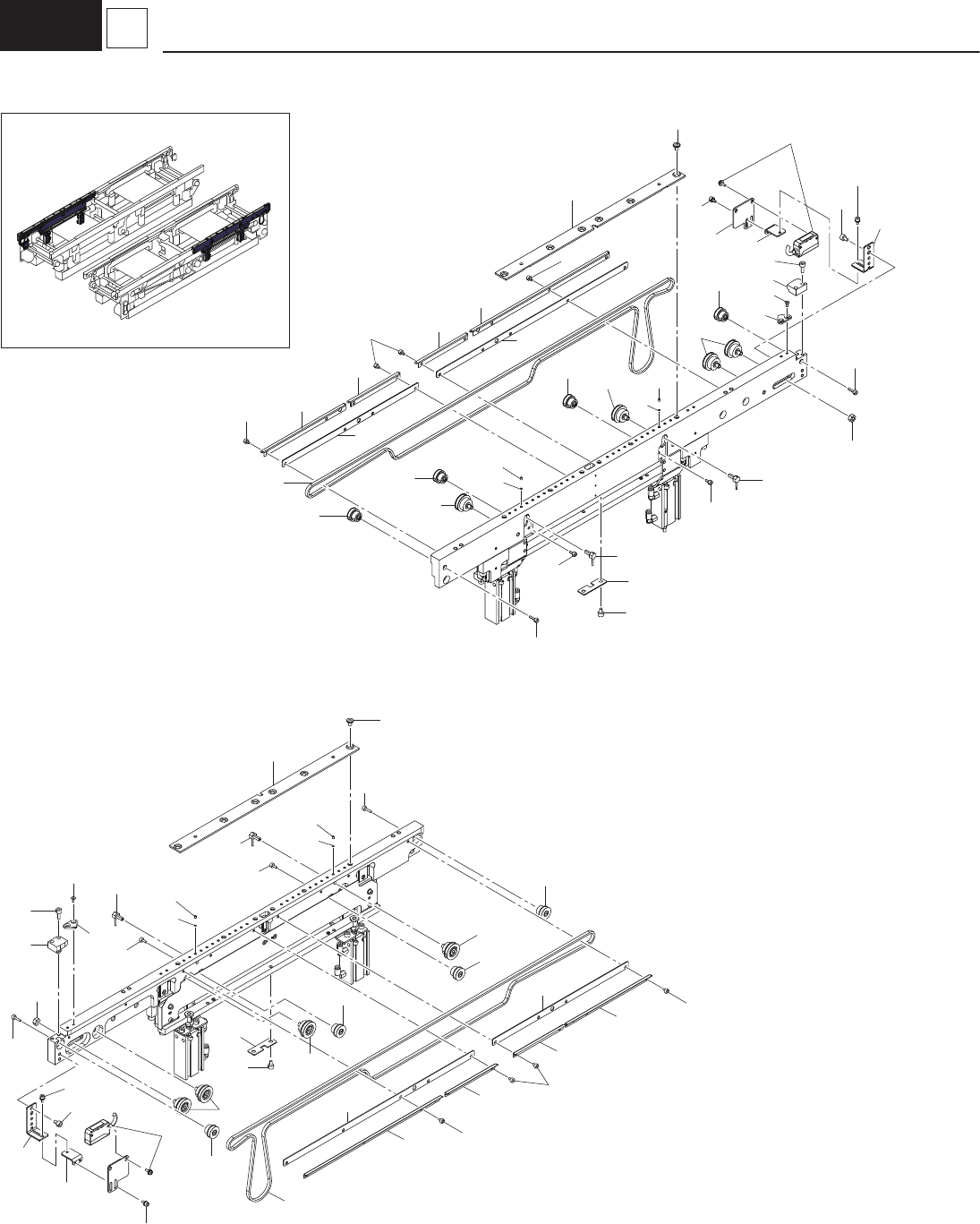

7 Fixed Chute R Transport
1907-005
317
318
320
320
320
312
320
304
322
319
302
319
305
300
300
301
313
308
309
303
314
321
321
301
307
322
325
311
323
324
316
316
326
300
301
300
315
326
315
310
310
321
300
300
300
308
313
314
321
321
321
309
318
317
302
305
323
311
324
312
320
320
322
307
325
316
316
320
320
319
322
304
306
319
300
301
301
326
326
315
315
301
303
310
310
A LANE
B LANE
A LANE
B LANE
