– 195 –

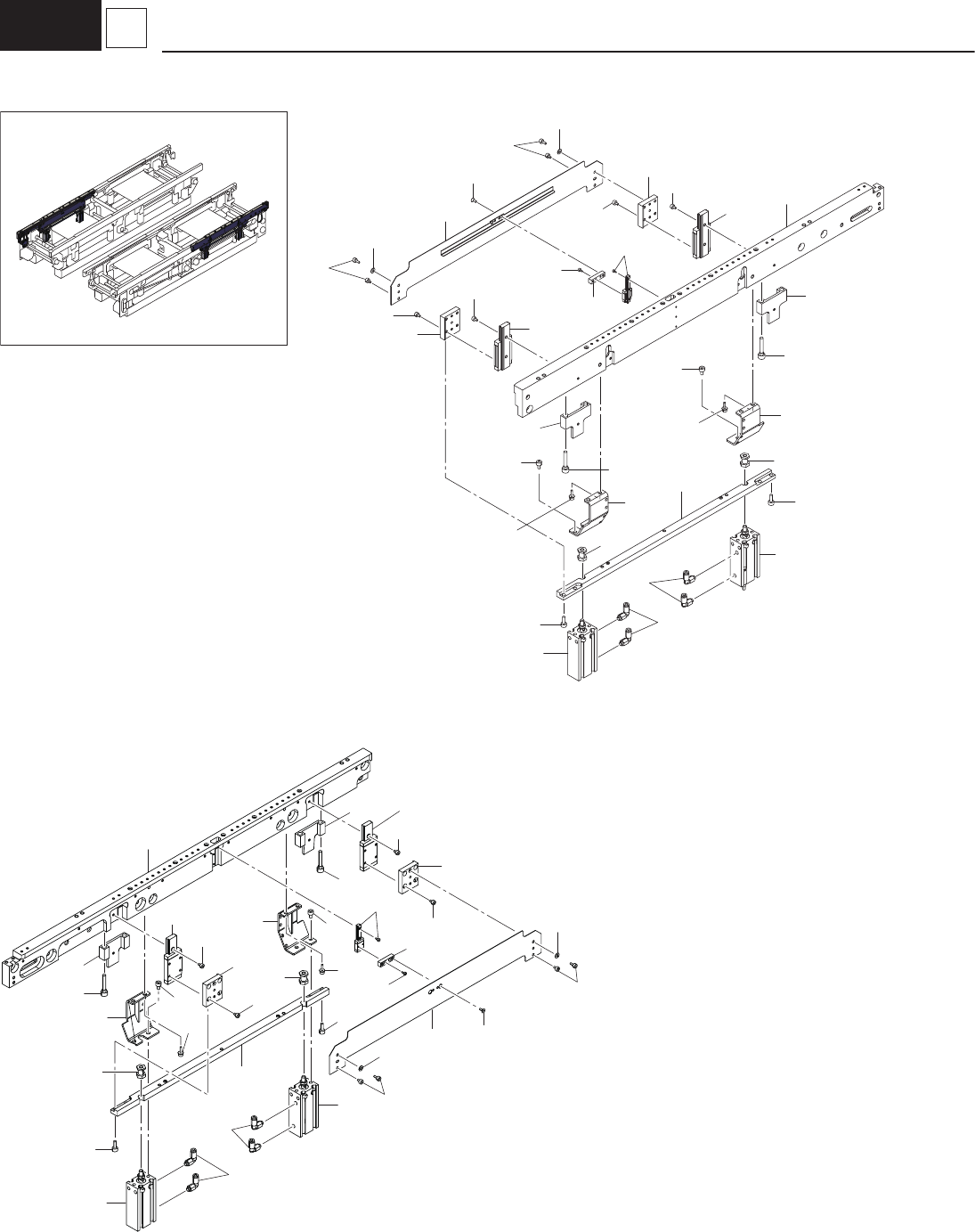

DUAL CONVEYOR SECTION
1907-005
No. Part No. Part Name Qty. Detail
300 KYB-M91AL-00 PULLEY_TIMING 8
301 KYY-M914U-A0 PULLEY_FLAT 8
302 KYA-M9125-00 ASSY-BOARD-SENSOR2 2 with SCREW.
303 KYY-M9152-20 TIMING BELT 2
304 KYY-M915M-20 BRACKET,SENSOR 2
305 KYY-M915K-20 BRACKET 2
306 KYY-M915N-20 BRACKET,SENSOR 2 2
307 KYY-M915V-20 BRKT.,GUIDE UNDER 1 2
308 KYY-M913D-40 BRACKET,BELT 2
309 KYY-M9115-40 BRACKET,BELT 2
310 KYY-M913B-00 BRACKET,BELT 4
311 KYY-M918W-20 BLOCK,CHUTE GUIDE 1 2
312 KLF-M9135-01 PLATE,EDGE 2 2
313 KYY-M9194-00 BRACKET 2
314 KYY-M9195-00 BRACKET 2
315 KYB-M91C4-00 SPACER 4
316 KYY-M912R-00 SENSOR,FIBER 4
317 KYY-M9138-20 PLATE 2
318 90990-01J127 BOLT,HEX.SOCKET HEAD 12
319 90990-01J136 BOLT,HEX.S/H WW 8
320 91312-03006 BOLT,HEX.SOCKET HEAD 8
321 91312-03004 BOLT,HEX.SOCKET HEAD 20
322 91312-04006 BOLT,HEX.SOCKET HEAD 4
323 91312-04016 BOLT,HEX.SOCKET HEAD 4
324 98702-03006 SCREW, FLAT HEAD 4
325 95302-05600 NUT, HEXAGON 2
326 90990-02J019 SCREW,SET 4
