– 21 1 – DU AL CONVEY OR SE CT ION 1907-005 No. Part No. Part Name Qty . Detail 501 KY A-M915W -00 TUBE_D4 1 502 KY A-M915X-00 TUBE_D32 1 503 KYB-M919J-00 TUBE_D6 1
– 210 –
H2

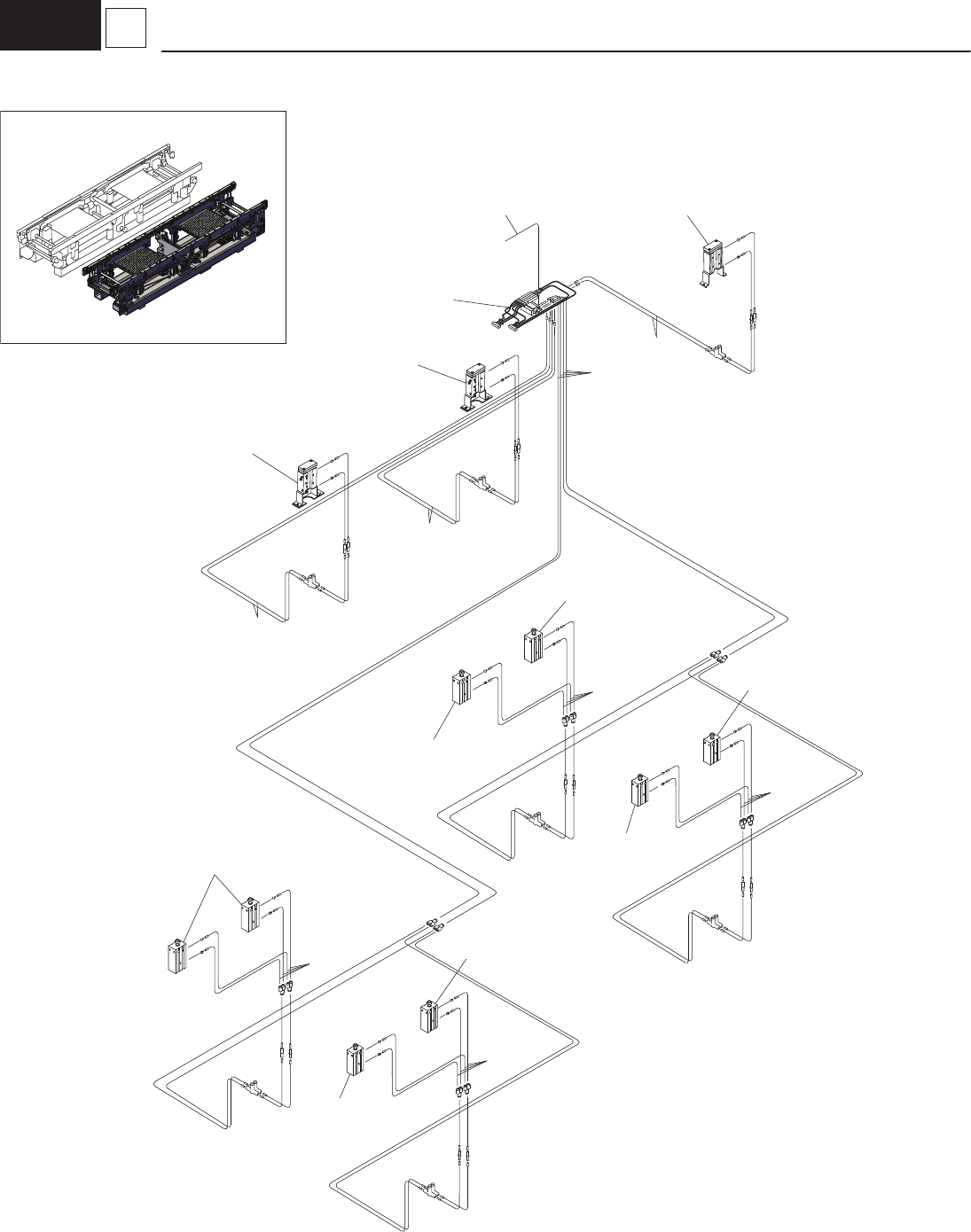

15 Air Piping B LANE
1907-005
501
From Main Body
PCB Stoper (RR)
See Fig. H2-2
Key No.108
501
PCB Stoper (LR)
PCB Stoper (LL)
Z Clump (ML)
Z Clump (FL)
502
Z Clump (MR)
Z Clump (FR)
See Fig. H2-2
Key No.103
See Fig. H2-2
Key No.102
See Fig. H2-2
Key No.101
See Fig. H2-12
Key No.428
See Fig. H2-12
Key No.428
See Fig. H2-10
Key No.428
See Fig. H2-6
Key No.333
See Fig. H2-6
Key No.329
See Fig. H2-8
Key No.333
See Fig. H2-8
Key No.329
503
501
501
502
502
502
A LANE
B LANE
– 211 –
DUAL CONVEYOR SECTION
1907-005
No. Part No. Part Name Qty. Detail
501 KYA-M915W-00 TUBE_D4 1
502 KYA-M915X-00 TUBE_D32 1
503 KYB-M919J-00 TUBE_D6 1
– 212 –
H2

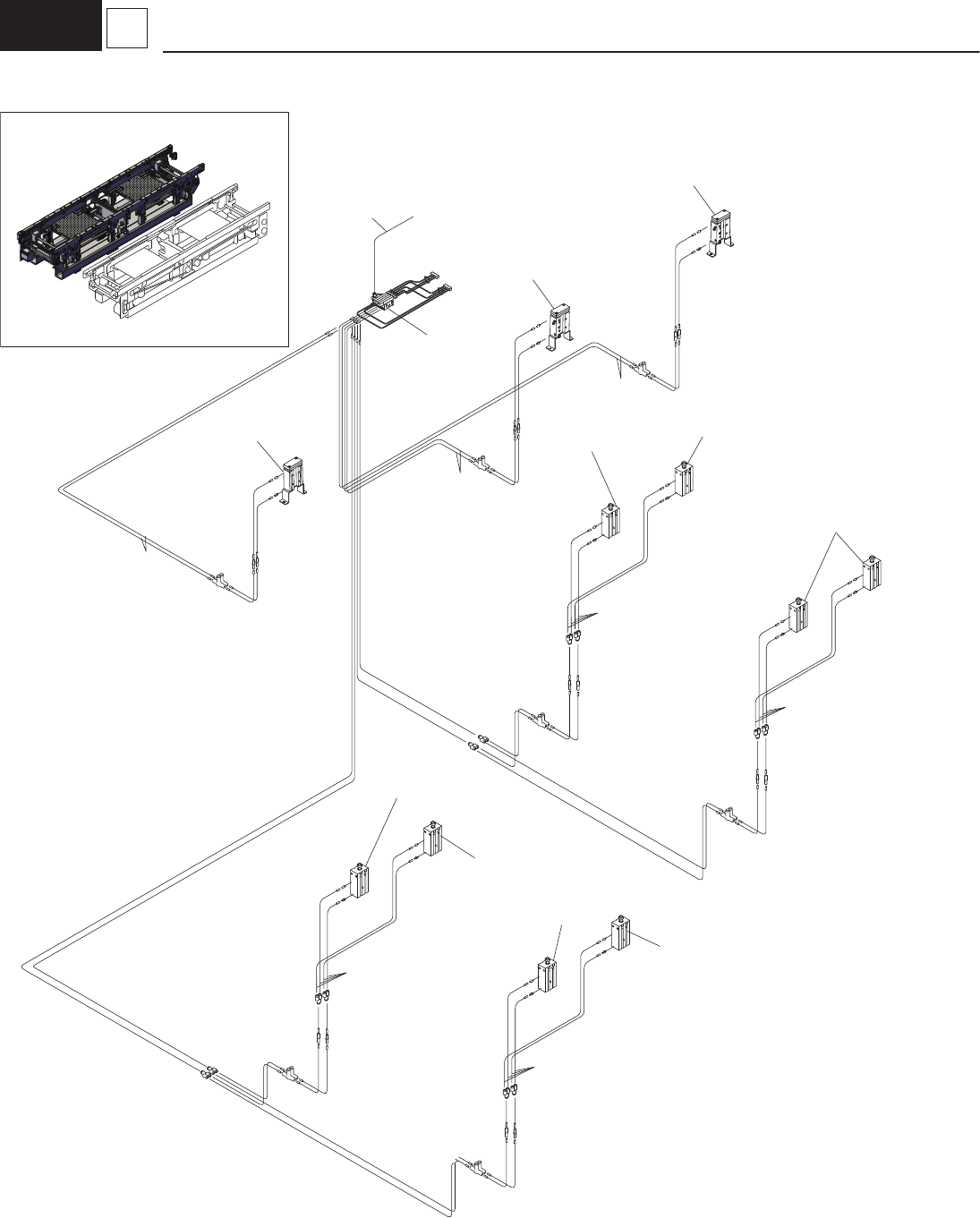

16 Air Piping A LANE
1907-005
501
From Main Body
PCB Stoper (RR)
See Fig. H2-2
Key No.108
501
PCB Stoper (LR)
PCB Stoper (LL)
Z Clump (ML)
Z Clump (FL)
502
Z Clump (MR)
Z Clump (FR)
See Fig. H2-2
Key No.101
See Fig. H2-2
Key No.102
See Fig. H2-2
Key No.103
See Fig. H2-12
Key No.428
See Fig. H2-12
Key No.428
See Fig. H2-10
Key No.428
See Fig. H2-6
Key No.333
See Fig. H2-6
Key No.329
See Fig. H2-8
Key No.333
See Fig. H2-8
Key No.329
503
501
502
502
502
A LANE
