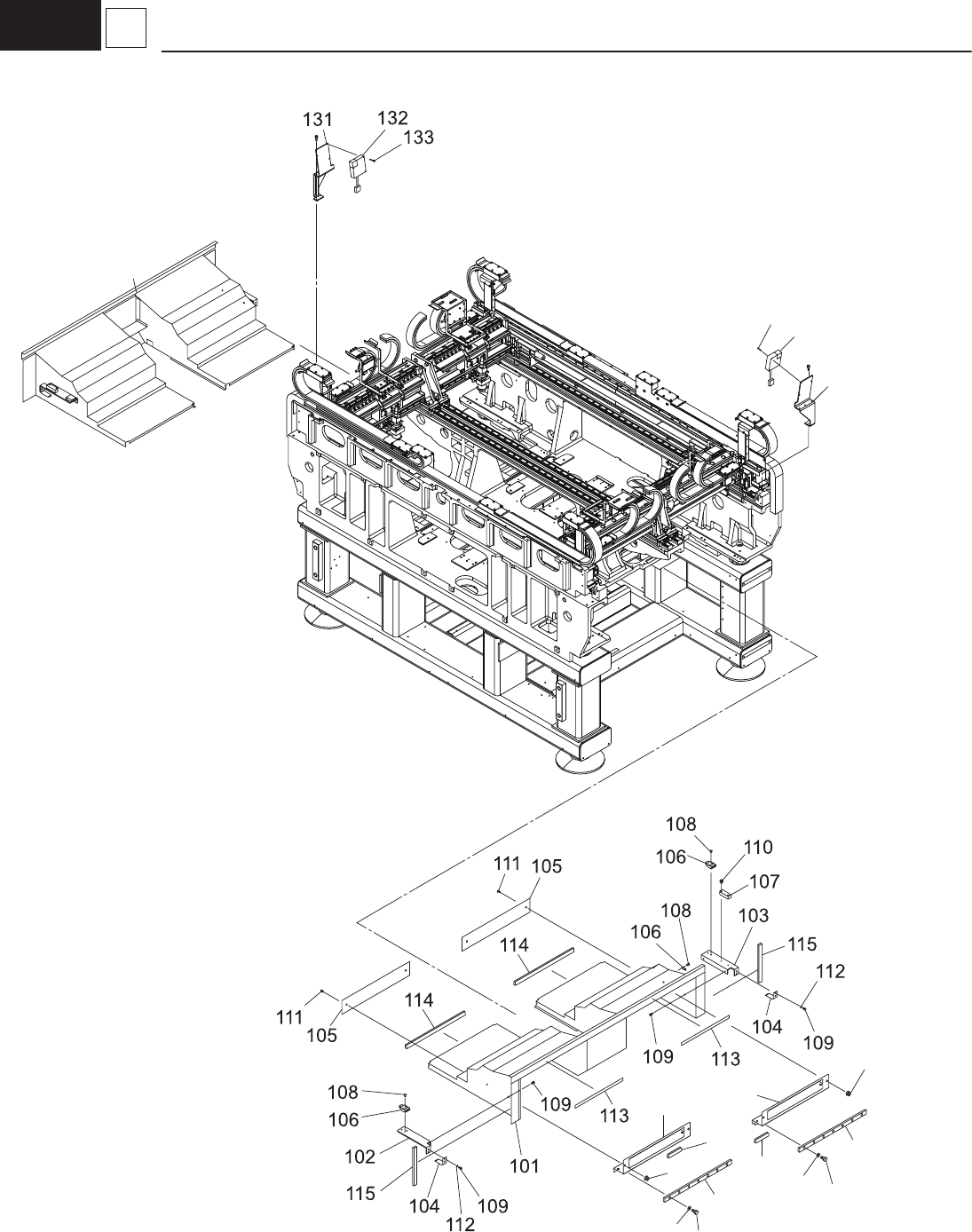

COVER SECTION
1907-005
No. Part No. Part Name Qty. Detail
100 KYA-M1303-00 F_COVER_ASSY 2
101 KYA-M130F-00 COVER 1
102 KYB-M131M-00 BRACKET 1
103 KYB-M131N-00 BRACKET 1
104 KYB-M131P-00 PLATE 2
105 KYA-M1329-00 COVER 2
106 KYB-M131F-00 SPRING_CATCHES 2
107 KYB-M130N-00 DOORSW_ACTUATOR 1
108 98702-03004 SCREW,FLAT HEAD 8
109 91312-04006 BOLT,HEX.SOCKET HEAD 8
110 91312-04008 BOLT,HEX.SOCKET HEAD 2
111 90990-66J014 SCREW,TRUSS HEAD 4
112 92902-04200 WASHER,PLAIN 4
113 KYA-M1302-00 ASSY_LABEL 1
114 KYA-M132N-00 EDGE_PARTS 2
115 KYA-M132R-00 EDGE_PARTS 2
116 KYA-M1322-00 COVER_L 1
117 KYA-M1323-00 COVER_R 1
118 KYA-M1321-00 PLATE 2
119 KYA-M132W-00 EDGE_PARTS 2
120 90990-06J004 BOLT,HEX-SCT 14
121 92902-03200 WASHER,PLAIN 14
122 95302-04600 NUT,HEXAGON 4
131 KYY-M130C-10 BRACKET_GUL_LOCK SW 1
132 KYA-M130X-00 ASSY-SAFETY-SWITCH 1
133 91312-04035 BOLT,HEX.SOCKET HEAD 3
141 KYY-M130C-10 BRACKET_GUL_LOCK SW 1
142 KYA-M130X-00 ASSY-SAFETY-SWITCH 1
143 91312-04035 BOLT,HEX.SOCKET HEAD 3
