– 31 –
FEEDER CART SECTION
1907-005
No. Part No. Part Name Qty. Detail
3 KYA-M3703-00 ASSY_LABEL 1
4 KYA-M3700-00 CORD_FEED_BUNDLE 1
5 KYB-M370P-00 ASSY-EXT-FEEDER-PWR 1
6 KYB-M658H-00 ACCESS-WIRING 1
7 KYB-M371W-00 ACCE-WIRING 1
8 KYA-M881P-00 CART LOCK ASSY. 1
9 KYA-M370T-10 PLATE, FEEDER BAR-1 2
10 KYA-M370U-00 BRACKET 4
11 91312-05060 BOLT,HEX.SOCKET HEAD 8
12 91312-03010 BOLT,HEX.SOCKET HEAD 8
13 KYA-M370W-00 BLOCK 2
14 90990-01J144 BOLT,HEX.S/H WW 4
15 KYB-M370Y-00 BASE_COVER(R) 1
16 KYB-M3710-00 BASE_COVER(L) 1
17 90990-66J017 SCREW,TRUSS HEAD 4
19 KYA-M370X-00 COVER 1
20 90990-66J012 SCREW,TRUSS HEAD 3
21 KYA-M3709-00 ASSY_LABEL 1
24 KYA-M373V-00 PLATE, FEEDER BAR-2R 1
25 KYA-M373V-10 PLATE, FEEDER BAR-2L 1
26 KYA-M373Y-00 COVER, SL-FEEDER R 1
27 KYA-M373U-00 COVER, SL-FEEDER L 1
28 KYA-M373W-00 BRACKET, SL-FEEDER R 1
29 KYA-M373X-00 BRACKET, SL-FEEDER L 1
30 90990-66J006 BOLT,HEX.S/H WW 6

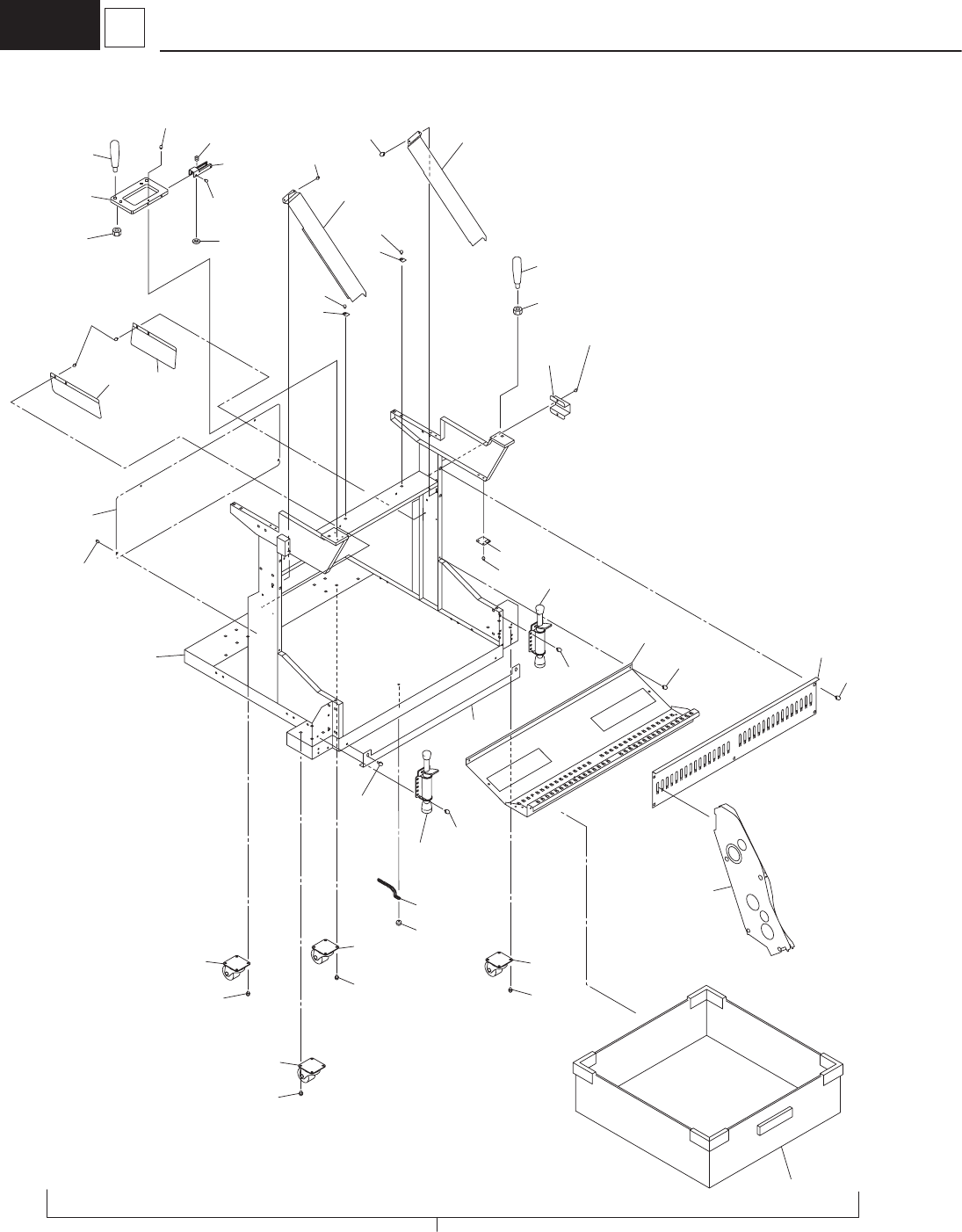

– 32 –
C1
2 Frame Section
1907-005
106
107
120
121
122
123
138
11
11
11
150
9
103
102
114
11
116
113
135
137
135
137
135
137
135
137
136
136
128
130
136
133
117
136
130
127
136
130
129
132
127
127
113
113
113
11
106
115
140
126
105
133
134
101
118
125
124
104
4
0
2
5
– 33 –
FEEDER CART SECTION
1907-005
No. Part No. Part Name Qty. Detail
101 KYB-M370B-00 CART_FRAME 1
102 KYA-M3706-00 PLATE 1
103 KYA-M370D-00 PLATE 1
104 KYB-M3701-00 REEL_HOLDER 20
105 KYB-M370S-00 COVER 1
106 KYB-M370T-00 COVER 1
107 KYB-M370U-00 COVER 1
110 KYB-M371A-00 PLATE 1
112 KYB-M371S-00 GUIDE 1
113 KYB-M3733-00 CASTER 4
114 KYB-M3734-00 CASTER 2
115 KYB-M3729-00 GRIP 2
116 KYB-M3732-00 CHAIN 1
117 90990-01J126 BOLT,HEX.SOCKET HEAD 4
118 KYB-M3728-00 BALL_PLUNGER 1
119 KYB-M370X-00 BOX 1
120 KYB-M370V-00 PLATE 1
121 KYB-M370W-00 PLATE 1
122 KYB-M372A-00 BRACKET 1
123 KYB-M372B-00 PLATE 1
124 KYB-M65AB-00 MOUNTING_BASE 2
125 KYB-M65AW-00 WIRING 4
126 90189-02J107 NUT,HEXAGON 2
127 90990-11J017 SCREW,PAN HEAD WW 8
128 91312-04006 BOLT,HEX.SOCKET HEAD 4
129 91312-04010 BOLT,HEX.SOCKET HEAD 1
130 90990-66J012 SCREW,TRUSS HEAD 27
132 KYB-M65A9-00 ROHS_WASHER 1
133 91312-05008 BOLT,HEX.SOCKET HEAD 4
134 92902-05200 WASHER,PLAIN 2
135 91312-06008 BOLT,HEX.SOCKET HEAD 16
136 91312-06010 BOLT,HEX.SOCKET HEAD 4
137 92902-06200 WASHER,PLAIN 16
138 KYA-M370S-00 COVER 1
139 90990-01J144 BOLT,HEX.S/H WW 4
140 95302-06700 NUT,HEXAGON 1
150 KYA-M3702-00 ASSY_CART 1 ALL PARTS
