UNDER FRAME
CONTENTS
D1 ELECTRICAL SECTION 1 44
1 Fixed Screw 44
2 Cable 46
D2 CPU BOX SECTION 48
1 CPU 1 Box 48
2 CPU 2 Box 50
D3 ELECTRICAL SECTION 2 52
1 Fixed Screw 52
2 AC Terminal 56
3 DC Terminal 58
4 Panel 60
5 XY Servo 62
6 PCB 1 64
7 PCB 2 68
D4 DC POWER SUPPLY SECTION 70
1 CPU 1 Box 70
2 ATX Power 72
3 Fan 74
D5 AIR SUPPLY SECTION 76
1 Frame Section 76
2 Air Combination Unit, Vaccum Pump 80
3 Solenoid Valve, Manifold 82
– 44 –
D1

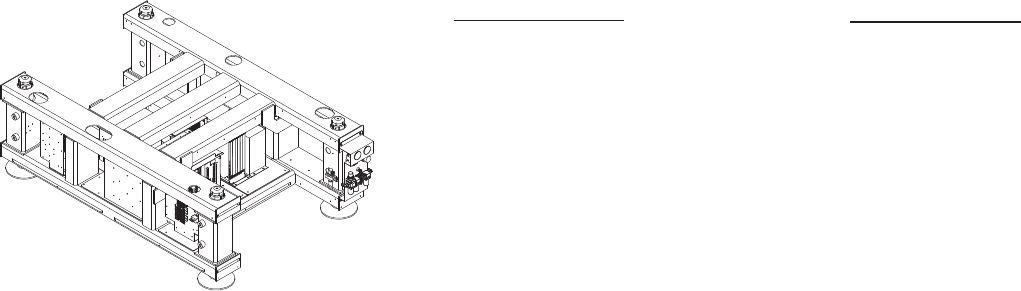

D1 ELECTRICAL SECTION 1
1 Fixed Screw
1907-005
See Fig. D5
See Fig. D3
See Fig. D4
See Fig. D4
See Fig. D2
See Fig. D2
16
17
18
16
17
18
19
16
17
18
16
17
18
16
17
18
15
17
17
See Fig. D4
8
8
11
10
8
13
12
8
16
17
18
15
17
18
15
17
18
15
17
18
11
11
15
– 45 –
ELECTRICAL SECTION 1
No. Part No. Part Name Qty. Detail
8 KYA-M6519-00 ASSY-NAME-PLATE-BA 1
10 KYA-M650F-00 PLATE 1
11 KYA-M655G-00 SUPPORT 3
12 KYA-M655T-00 BRACKET 1
13 KYA-M655P-00 BRACKET 3
15 91312-05006 BOLT,HEX.SOCKET HEAD 15
16 91312-05012 BOLT,HEX.SOCKET HEAD 13
17 92902-05200 WASHER,PLAIN 28
18 KYB-M65AA-00 ROHS_WASHER 26
19 90990-66J015 SCREW,TRUSS HEAD 2
1907-005
