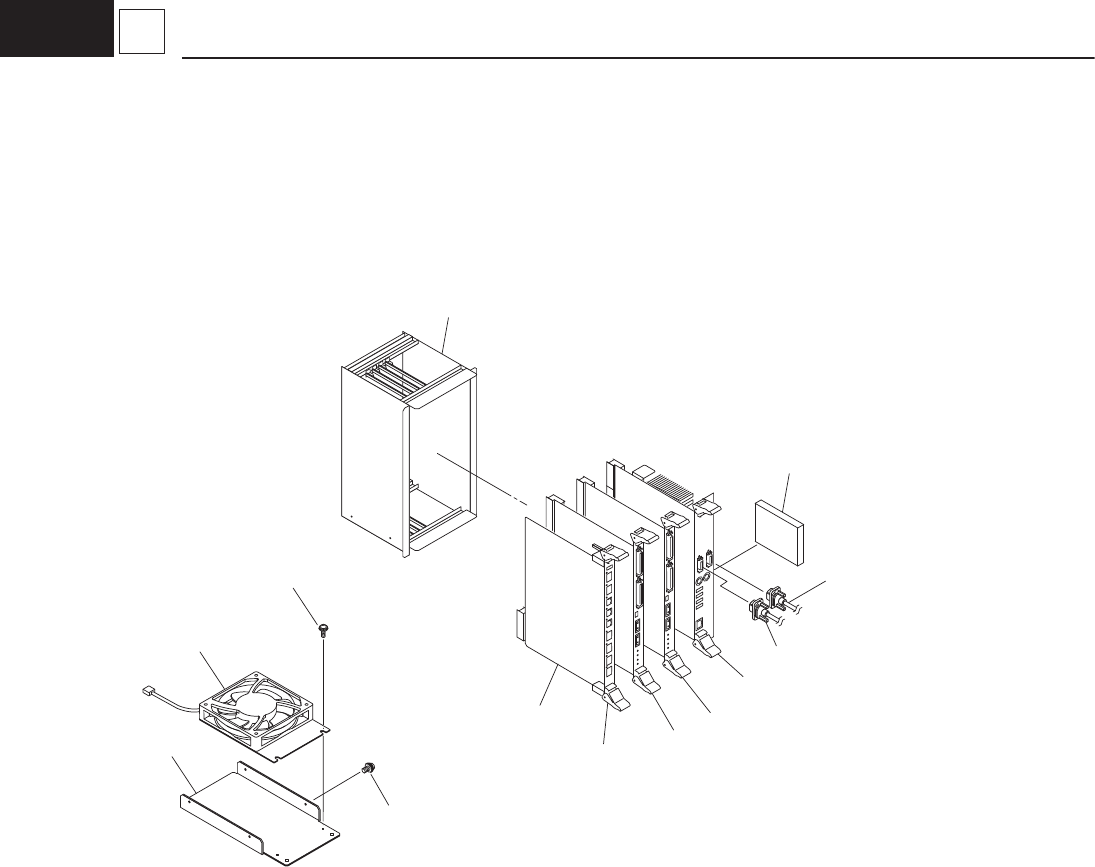

– 50 – D2 2 CPU 2 Box 1907-005 105 101 123 122 102 103 103 104 107 11 5 11 5 108 11 7 U85 (UC16) M177 U83 U82 U81 U180 D81
– 49 –
CPU BOX SECTION
No. Part No. Part Name Qty. Detail
1 KYB-M410H-00 CPU-BOX 1
2 KYB-M4105-00 MOTHER BOARD 1 U91
3 KYB-M4104-00 FRAME GRABBER BOARD 1 U92
4 KYB-M730G-00 FG BOARD 2 U93, U94
5 KYB-M410Y-00 ACCESS-WIRING 1
6 KYA-M4106-00 HNS,PIO-IN-CPUBOX 1
7 KYA-M4104-00 SSD-COPY 1 D89
8 KYB-M4106-00 CABLE(SATA) 1
9 KYB-M4107-00 CABLE(SATA-P) 1
10 90990-11J009 SCREW,PAN HEAD WW 16
12 KYB-M410L-00 COIL-TUBE 1
13 KYB-M4114-00 CONVEX BASES 1
14 KYB-M410T-00 USB-BRACKET 1
15 KYB-M410R-00 CORD-ATX-MAIN 1
16 KYB-M4103-00 CORD-ATX-HD 1
17 KYB-M410S-00 CORD-ATX12V 1
1907-005
– 51 –
CPU BOX SECTION
No. Part No. Part Name Qty. Detail
101 KYA-M4105-00 C-PCI RACK 1 U180
102 KYB-M410U-00 ASSY_CPU2-BOARD 1 U81
103 KYB-M4110-00 PCB-MOUNT 2 U82, U83
104 KYA-M4109-00 PCB-MOUNT 1 U85(UC16)
105 KYB-M410C-00 FLASH DISK, COPY 1 D81
107 KYA-M4102-00 ASSY-FAN 1 M177
108 KYA-M651R-00 BRACKET 1
115 90990-11J016 SCREW,PAN HEAD WW 6
117 KYB-M410N-00 PANEL 1
122 KYB-M6573-00 CORD-RS232C-4M 1
123 KYB-M6572-00 CORD-RS232C-2M 1
1907-005
