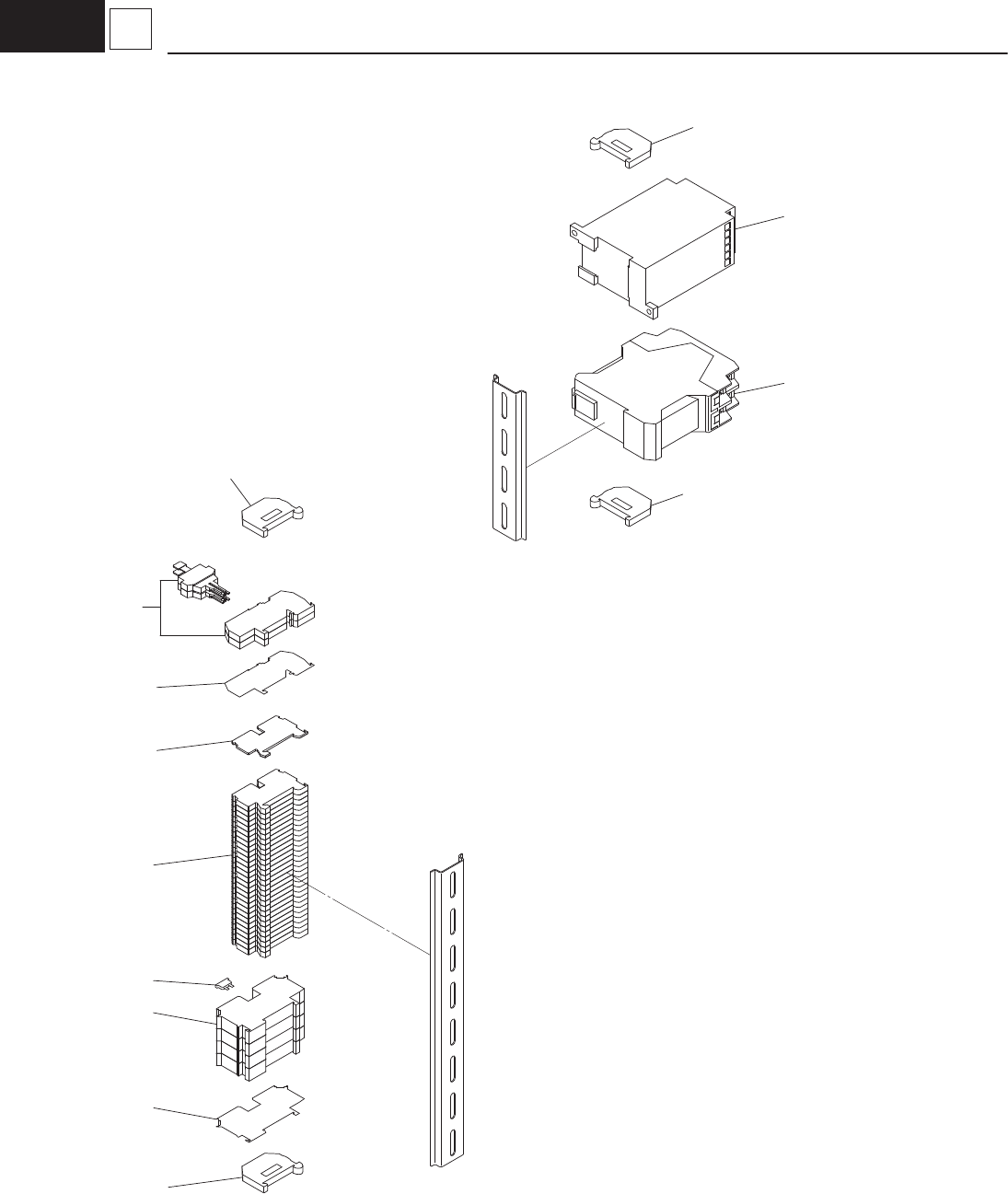

– 58 – D3 3 DC T erminal 1907-005 272 275 277 278 279 280 284 276 285 281 282 286 292 294 294 291 283 273 283 K4 F002 F007 K3 274
– 57 –
ELECTRICAL SECTION 2
1907-005
No. Part No. Part Name Qty. Detail
102 KYA-M6566-00 TERMINAL 6
103 KYA-M655V-00 TERMINAL 2
104 KYA-M6564-00 ACCESSORY-WIRING 1
105 KYA-M6565-00 ACCESSORY-WIRING 3
106 KYB-M65BC-00 TERMINAL 8
107 KYB-M941P-00 ACCESS-WIRING 3
108 KYB-M65BD-00 TERMINAL 2
109 KYB-M6587-00 TERMINAL 2
110 KYB-MD726-00 NAME PLATE 1
– 59 –
ELECTRICAL SECTION 2
1907-005
No. Part No. Part Name Qty. Detail
272 KYA-M6566-00 TERMINAL 4
273 KYA-M6564-00 ACCESSORY-WIRING 1
274 KYA-M6565-00 ACCESSORY-WIRING 2
275 KYB-M65BC-00 TERMINAL 29
276 KYB-M65BD-00 TERMINAL 1
277 KYB-M941P-00 ACCESS-WIRING 6
278 KYA-M6561-00 ACCESSORY 2
279 KYA-M6562-00 ACCESSORY 2
280 KYA-M6563-00 ACCESSORY 1
281 KYB-MD723-00 FUSE HOLDER 2
282 KYB-M65BN-00 FUSE-250V-6.3A 2 F002, 007
283 KYB-M6587-00 TERMINAL 2
284 KYB-MD726-00 NAME PLATE 1
285 KYB-MD72N-00 END PLATE 1
286 KYB-MD72M-00 TERMINAL 2
291 KYB-M65BK-00 RELAY 1 K3
292 KYB-M6562-00 SWITCH-CONTROLLER 1 K4
294 KYB-M6587-00 TERMINAL 2
