– 78 – D5 1 Frame Section 1907-005 34 46 46 33 42 42 42 44 35 43 36 38 43 43 35 36 42 42 31 31 36 37 34 36 Cutter 22 Positioning Unit 2 Cutter 11 Positioning Unit 1 Connecter 1 Connecter 2 HEAD21 HEAD21 HEAD11 HEAD12 HEA…
– 77 –
AIR SUPPLY SECTION
1907-005
No. Part No. Part Name Qty. Detail
10 KYY-M132C-A0 BOLT,HEX.SOCKET HEAD 4
11 KYA-M850A-00 RUBBER_PAD 4
21 91312-04008 BOLT,HEX.SOCKET HEAD 8
22 91312-04025 BOLT,HEX.SOCKET HEAD 4
23 91312-05008 BOLT,HEX.SOCKET HEAD 4
24 91312-05012 BOLT,HEX.SOCKET HEAD 2
25 92902-05600 WASHER,PLAIN 6
26 KYB-M65AA-00 ROHS_WASHER 8
31 KYB-M850T-00 PIPE_FITTINGS 6
32 KYB-M850X-00 PIPE_FITTINGS 4
33 KYB-M8514-00 PIPE_FITTINGS 1
34 KYB-M8515-00 PIPE_FITTINGS 6
35 KYB-M8517-00 PIPE_FITTINGS 3
36 KYB-M8516-00 PIPE_FITTINGS 5
37 KYA-M850L-00 PIPE_FITTINGS 2
38 KYB-M852A-00 PIPE_FITTINGS 1
41 KYA-M850P-00 TUBE_D6 1
42 KYA-M850T-00 TUBE_D8 1
43 KYA-M850R-00 TUBE_D10 1
44 KYA-M850S-00 TUBE_D6_BU 1
45 KYA-M850U-00 TUBE_D8_BU 4
46 KYB-M850M-00 TUBE_D10_BU 1
51 KYB-M8519-00 CORD-DVI-5M 1
52 KYB-M851A-00 CORD-USB-A-A 1
53 KYB-M658H-00 ACCESS-WIRING 2
61 KYB-M8503-00 FRAME(LOWER) 1
62 KYB-M851B-00 BOLT_CONNECT 4
63 KYB-M851C-00 NUT_CONNECT 4
64 KYY-M851F-00 LEVELING BOLT ASSY 4
– 78 –

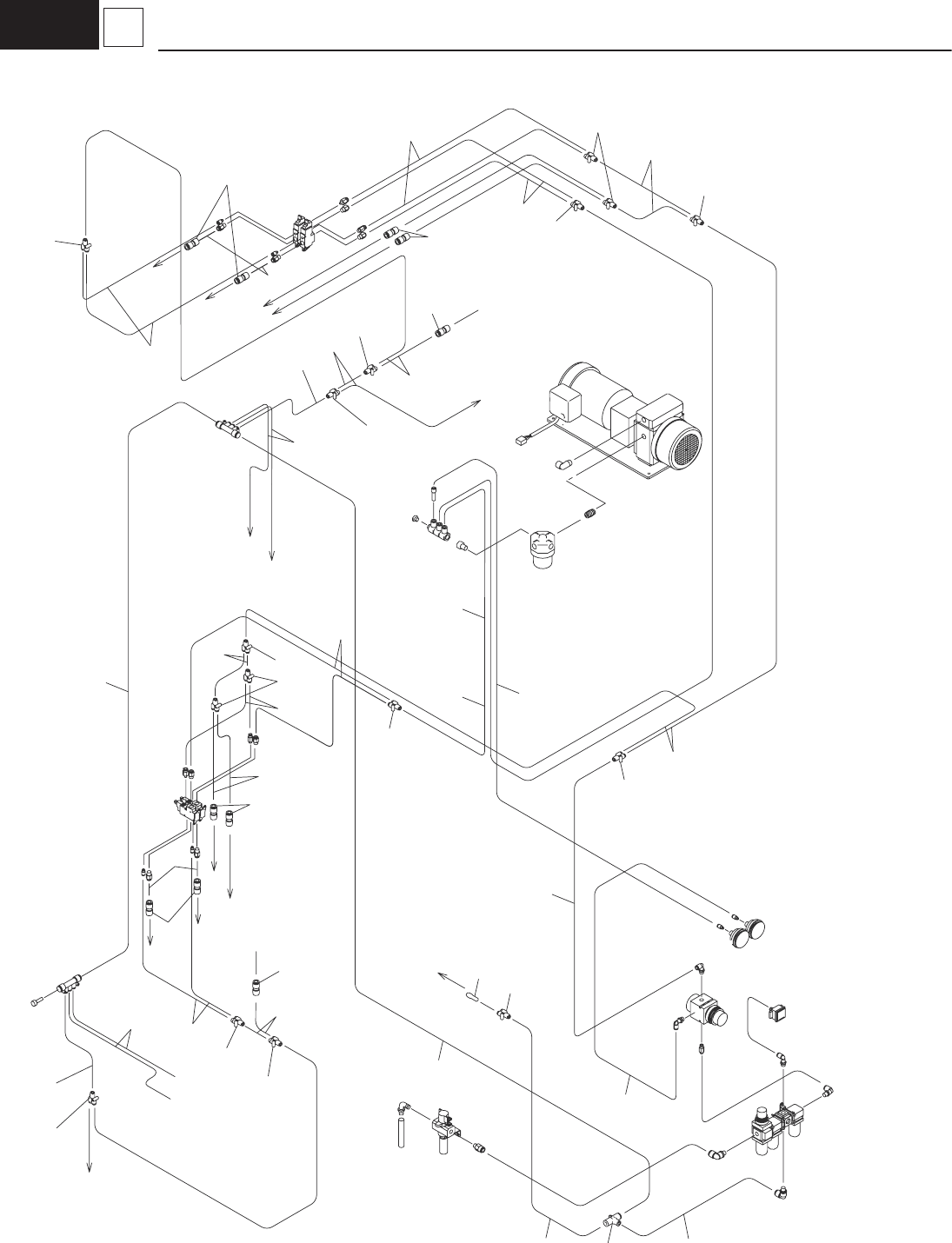

D5
1 Frame Section
1907-005
34
46
46
33
42
42
42
44
35
43
36
38
43
43
35
36
42
42
31
31
36
37
34
36
Cutter 22
Positioning Unit 2
Cutter 11
Positioning Unit 1
Connecter 1
Connecter 2
HEAD21
HEAD21
HEAD11
HEAD12
HEAD12
HEAD22
HEAD22
HEAD11
34
35
42
42
36
34
37
31
31
Nozzle Stocker
12,22
Cutter 21
Nozzle Stocker
11,12
Cutter 12
PCB S
PCB Z CLUM
32
42
41
41
41
45
41
41
41
41
41
32
42
41
42
41
T OPPE R
P
45
– 79 –
AIR SUPPLY SECTION
1907-005
No. Part No. Part Name Qty. Detail
10 KYY-M132C-A0 BOLT,HEX.SOCKET HEAD 4
11 KYA-M850A-00 RUBBER_PAD 4
21 91312-04008 BOLT,HEX.SOCKET HEAD 8
22 91312-04025 BOLT,HEX.SOCKET HEAD 4
23 91312-05008 BOLT,HEX.SOCKET HEAD 4
24 91312-05012 BOLT,HEX.SOCKET HEAD 2
25 92902-05600 WASHER,PLAIN 6
26 KYB-M65AA-00 ROHS_WASHER 8
31 KYB-M850T-00 PIPE_FITTINGS 6
32 KYB-M850X-00 PIPE_FITTINGS 4
33 KYB-M8514-00 PIPE_FITTINGS 1
34 KYB-M8515-00 PIPE_FITTINGS 6
35 KYB-M8517-00 PIPE_FITTINGS 3
36 KYB-M8516-00 PIPE_FITTINGS 5
37 KYA-M850L-00 PIPE_FITTINGS 2
38 KYB-M852A-00 PIPE_FITTINGS 1
41 KYA-M850P-00 TUBE_D6 1
42 KYA-M850T-00 TUBE_D8 1
43 KYA-M850R-00 TUBE_D10 1
44 KYA-M850S-00 TUBE_D6_BU 1
45 KYA-M850U-00 TUBE_D8_BU 4
46 KYB-M850M-00 TUBE_D10_BU 1
51 KYB-M8519-00 CORD-DVI-5M 1
52 KYB-M851A-00 CORD-USB-A-A 1
53 KYB-M658H-00 ACCESS-WIRING 2
61 KYB-M8503-00 FRAME(LOWER) 1
62 KYB-M851B-00 BOLT_CONNECT 4
63 KYB-M851C-00 NUT_CONNECT 4
64 KYY-M851F-00 LEVELING BOLT ASSY 4
