3 Instal lation Installation Manual SIPLACE Setup Center RF 2.1 3.3 Installation of SIPLACE Setup Center and Possible Setup Types Edition 09/2005 EN 20 3.3.2 Individual Setup T ypes and next S tep s 3.3.2.1 Setup T ype -…
Installation Manual SIPLACE Setup Center RF 2.1 3 Installation
Edition 09/2005 EN 3.3 Installation of SIPLACE Setup Center and Possible Setup Types
19
3.3.1.6 Step 6
→ The Setup Type dialog box displays the SIPLACE Setup Center components you could
choose for installation.
3

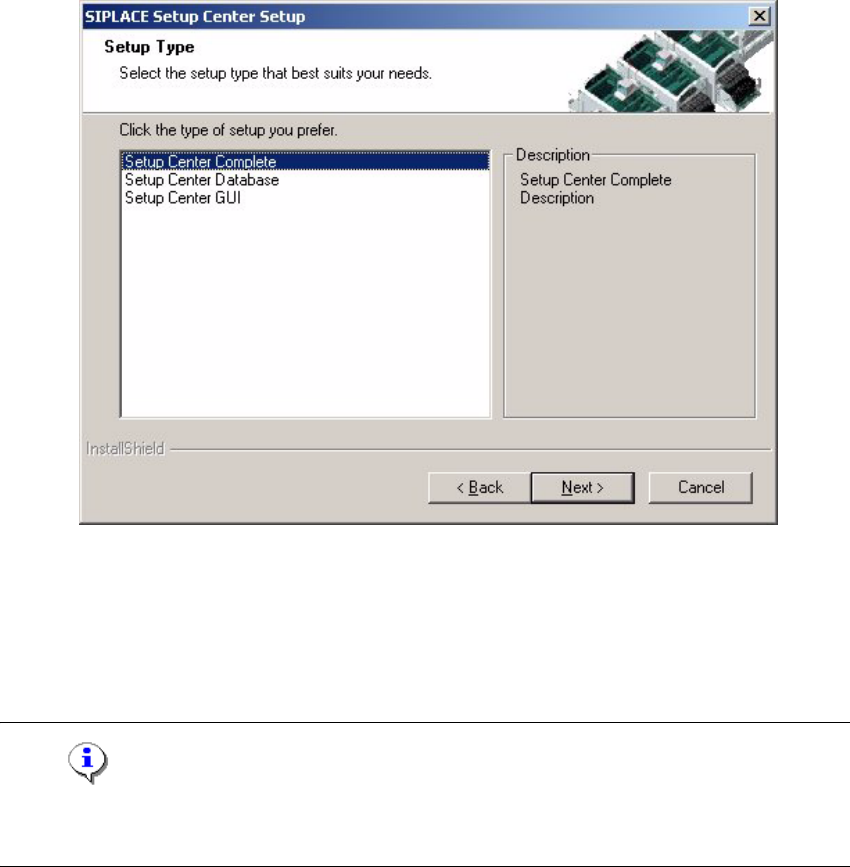

Fig. 3.3 - 6 "Setup Type" dialog box
→ In the Setup Type dialog box, select the setup type you want to install.
→ Click Next.
→ A short description of the setup type in question appears in the Description box when you se-
lect a type.
Note
After choosing a setup type which includes a database installation, the setup program immediately
checks if SQL server or MSDE (Microsoft Data Desktop Engine) is installed on the computer. 3
3 Installation Installation Manual SIPLACE Setup Center RF 2.1
3.3 Installation of SIPLACE Setup Center and Possible Setup Types Edition 09/2005 EN
20
3.3.2 Individual Setup Types and next Steps
3.3.2.1 Setup Type - SIPLACE Setup Center GUI
This setup type will install the GUI application of SIPLACE Setup Center. It is used to setup up a
client system while the database is located on a remote system. 3
Step 1
→ Run through the steps in “Starting Installation - First Steps” on page 14.
3

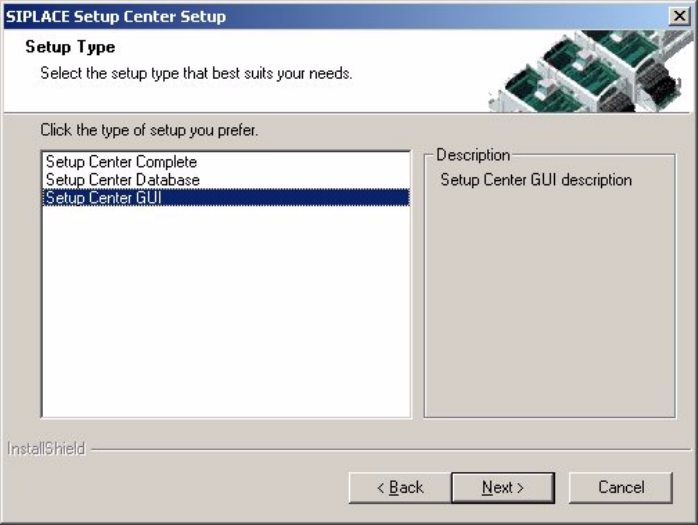

Fig. 3.3 - 7 "Setup Type" dialog box
→ Select the Setup Center GUI setup type
→ Click Next.
Installation Manual SIPLACE Setup Center RF 2.1 3 Installation
Edition 09/2005 EN 3.3 Installation of SIPLACE Setup Center and Possible Setup Types
21
Step 2
The installation detects the existing SPI version and installs the according SIPLACE Setup Center
files. 3

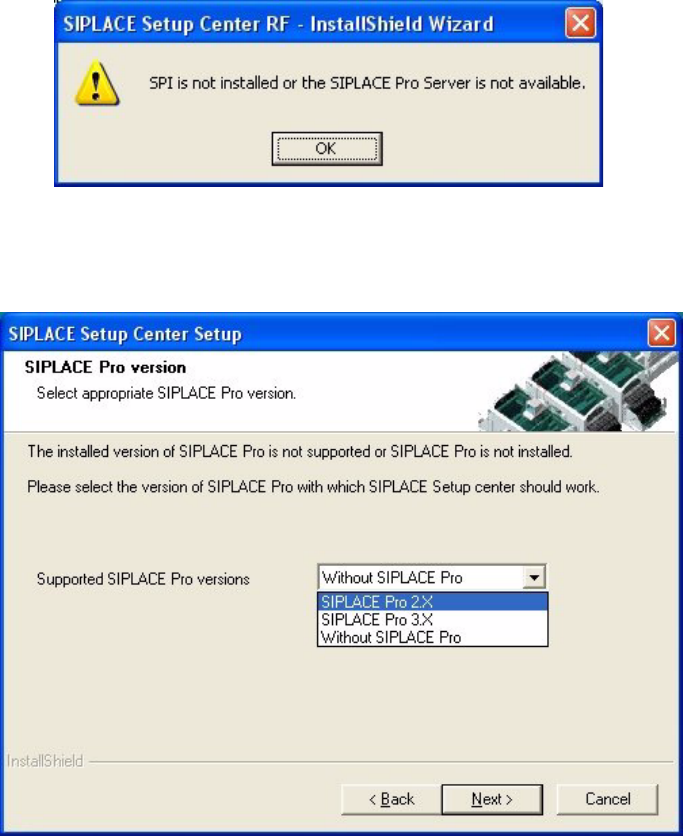

In case no SPI is detected, the installation displays a warning. 3
3
Fig. 3.3 - 8 "Setup Type" dialog box
After this the installation prompts you to select a SIPLACE Pro version. SIPLACE Setup Center
will be installed with the files to support the selected SIPLACE Pro version 3
3
Fig. 3.3 - 9 "Setup Type" dialog box
→ Select the SIPLACE Pro version and
→ Click Next.
