Installation Manual SIPLACE Setup Center RF 2.1 3 Installation
Edition 09/2005 EN 3.3 Installation of SIPLACE Setup Center and Possible Setup Types
31
3.3.2.3 Setup Type - SIPLACE Pro Complete
This setup type contains all SIPLACE Setup Center components for operating the system on a
single computer. It is used to install a Setup Center stand alone system. 3
Setup detects if SQL Server or MSDE (Microsoft Data Desktop Engine) has already been in-
stalled. 3
Select this type to install all SIPLACE Setup Center system components (GUI, Database) on one
computer. However, it is possible to integrate further clients on other computers. 3
Step 1
→ Run through the steps in “Starting Installation - First Steps” on page 14.
3
Fig. 3.3 - 19 "Setup Type" dialog box
→ Select the Setup Center Complete system setup type.
→ Click Next.
3
3 Installation Installation Manual SIPLACE Setup Center RF 2.1
3.3 Installation of SIPLACE Setup Center and Possible Setup Types Edition 09/2005 EN
32
Step 2
The installation detects the existing SPI version and installs the according SIPLACE Setup Center
files. 3

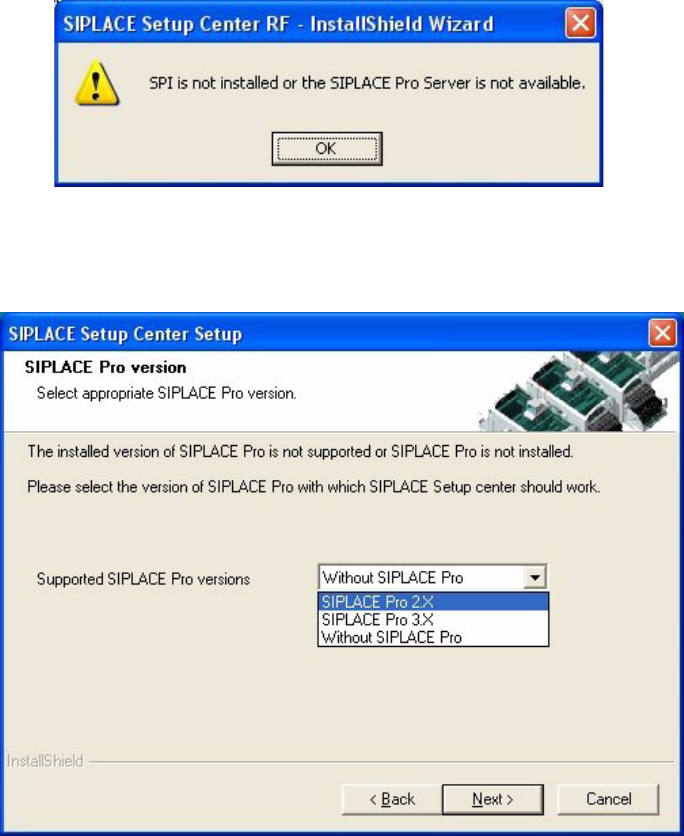

In case no SPI is detected, the installation displays a warning. 3
3
Fig. 3.3 - 20 "Setup Type" dialog box
After this the installation prompts you to select a SIPLACE Pro version. SIPLACE Setup Center
will be installed with the files to support the selected SIPLACE Pro version 3
3
Fig. 3.3 - 21 "Setup Type" dialog box
→ Select the SIPLACE Pro version and
→ Click Next.
Installation Manual SIPLACE Setup Center RF 2.1 3 Installation
Edition 09/2005 EN 3.3 Installation of SIPLACE Setup Center and Possible Setup Types
33
Step 3
→ In the Select SQL-Server dialog box you enter the information required to be connected with
the SQL Server and database.
3
Fig. 3.3 - 22 "Select SQL Server" dialog box
→ Enter the Password for the SQL Server user ’sa’, i.e. the SQL server system administrator.
→ Selecting the radio button Another Computer will search computers with a database in the
network and will list them in the drop down box Setup Center Data Source.
Note
This password is empty if MSDE has been freshly installed. In this case, erase the displayed de-
fault password. Subsequently, a window will open, prompting you to change this password. You
may accept the Siemens Service default password or choose one of your own 3
→ Choose your SQL Server Instance from the pull-down menu.
→ Click Next.
3
