3.3.3.6 Setting up the Scanner
Setting up the scanner system requires three steps: 3
(1) Scanner configuration
(2) Binding the scanner to the RF station
(3) RF station configuration
3.3.3.7 Scanner Configuration

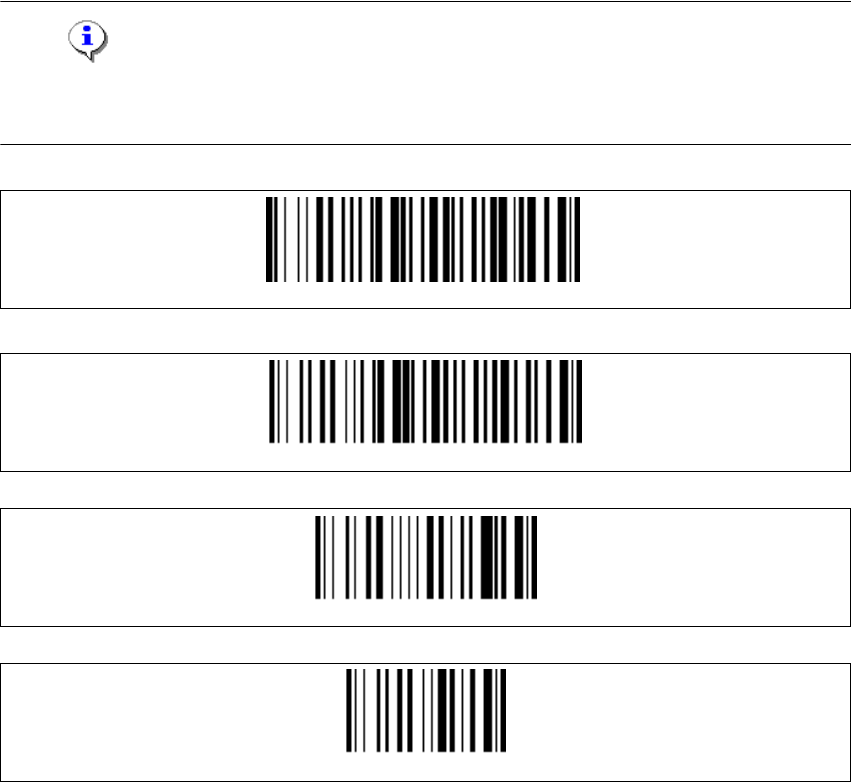

The new Scanner is setup up by scanning of a series of barcodes. Pull the trigger to switch the
scanner on and scan the following barcodes in the order they are printed. 3
Note
The configuration must be completed in one run. If it is halted or any problems appear, all config-
uration steps have to be redone from the start. 3
3
3
3
3
3
Set DLL6000-R compatibility
Restore DRAGON ™ M standard configuration
Restore DRAGON ™ M default
Enter Configuration
Installation Manual SIPLACE Setup Center RF 2.1 3 Installation
Edition 09/2005 EN 3.3 Installation of SIPLACE Setup Center and Possible Setup Types
41
3
3
3
3
3
3
3
Radio protocol timeout
1
9
Two-Ways
Display-off Timeout
9
0
3 Installation Installation Manual SIPLACE Setup Center RF 2.1
3.3 Installation of SIPLACE Setup Center and Possible Setup Types Edition 09/2005 EN
42
3.3.3.8 Setting of the Scanner Address
Each scanner requires a unique address.
→ Enter the following barcode and scan the four digits for the scanner address, e.g. '0' '0' '0' '1'.
Note
The address must consist of four digits. Don't forget to enter heading zeros. 3
3
Four digits for the DRAGON ™ M Address (from 0000 to 1999)
3
Set Radio Address
