User manual SIPLACE SX1/SX2 3 Technical data and assemblies
From software version SC 706.1 SP1 Version 10/2014 3.3 Dimensions and weight
99
3.3 Dimensions and weight
3.3.1 Technical data - dimensions and weight
3
Length of the machine
SX1/SX2 1500 mm
Width of the machine
SX1/SX2
*a
2475 mm
Height of the machine
with indicator lamp
With folded-up protective covers
(for PCB conveyor height 900 mm)
(for PCB conveyor height 930 mm)
(for PCB conveyor height 950 mm)
max. 1765 mm
1980 mm
2010 mm
2030 mm
Machine ground clearance
(for PCB conveyor height 900 mm)
(for PCB conveyor height 930 mm)
(for PCB conveyor height 950 mm)
120 mm ± 15 mm
150 mm ± 15 mm
170 mm ± 15 mm
Weight of SX
*b
SX1 with 2x component trolley 60
SX1 with 2x component trolley 60 (fully configured)
SX2 with 2x component trolley 60
SX2 with 2x component trolley 60 (fully configured)
2482 kg
2806 kg
2532 kg
2856 kg
Floor space for SX
a
SX1/SX2 with 2x component trolley 60 3.71 m²
The load per unit area calculation included an additional working space
of 0.5 m on each side of the machine.
Load per unit area for SX
c
SX1
SX2
6.1 kN/m²
6.2 kN/m²
The load per unit area calculation includes an additional working space
of 1.0 m on each side of the machine.
Load per unit area for SX
c
SX1
SX2
4.7 kN/m²
4.8 kN/m²
Number of machine feet 4
*)a Standard configuration: 1 component trolley inside and 1 component trolley outside with handles folded down.
*)b Standard configuration: 1 component trolley inside, 1 component trolley outside and single conveyor.
3 Technical data and assemblies User manual SIPLACE SX1/SX2
3.3 Dimensions and weight From software version SC 706.1 SP1 Version 10/2014
100
3.3.2 Dimensions
3.3.2.1 Dimensions of SX1/SX2 machine
3
Fig. 3.3 - 1 Dimensions of SX1/SX2 machine (1 component trolley inside, 1 component trolley outside)
User manual SIPLACE SX1/SX2 3 Technical data and assemblies
From software version SC 706.1 SP1 Version 10/2014 3.3 Dimensions and weight
101
3.3.3 Height of the folded up protective cover
3

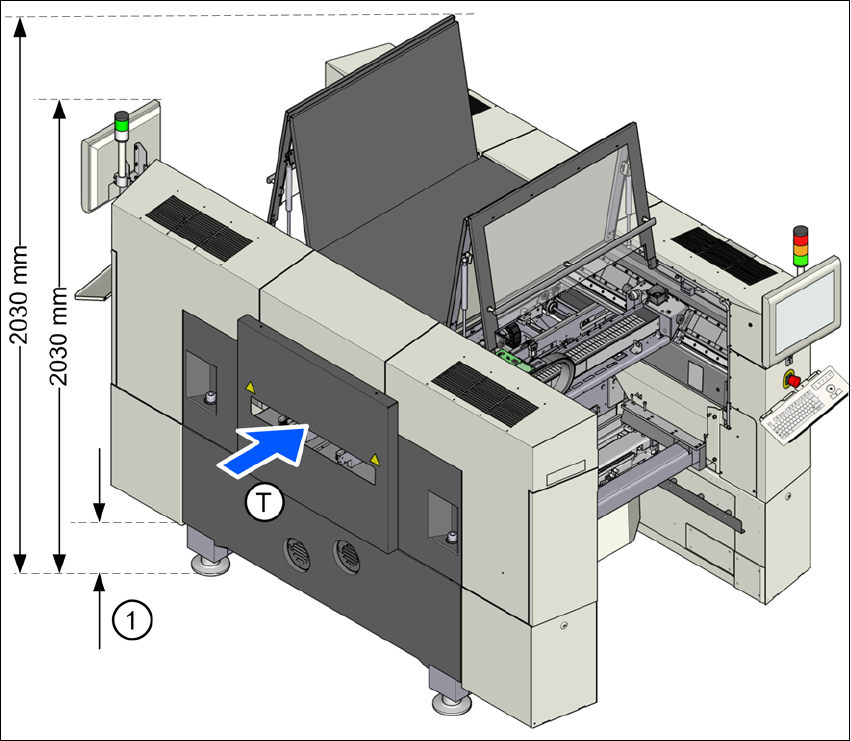

Fig. 3.3 - 2 Height of the folded-up protective cover - dimensions in millimeters
The specified dimensions refer to the max. PCB conveyor height of 950 mm.
(1) The height varies according to the set PCB conveyor height
– for PCB conveyor height 900 mm = 120 mm ± 15 mm
– for PCB conveyor height 930 mm = 150 mm ± 15 mm
– for PCB conveyor height 950 mm = 170 mm ± 15 mm
