User manual SIPLACE SX1/SX2 3 Technical data and assemblies From software version SC 706.1 SP1 Version 10/2014 3.4 Overviews of the modules 105 3.4.2 Overview of SI PLACE SX1 assemblies 3 3 Fig. 3.4 - 2 SX1 machine - ove…
3 Technical data and assemblies User manual SIPLACE SX1/SX2
3.4 Overviews of the modules From software version SC 706.1 SP1 Version 10/2014
104
3.4 Overviews of the modules
3.4.1 Overview of SIPLACE SX2 assemblies
3
3
Fig. 3.4 - 1 SX2 machine - overview of assemblies
(1) Basic module
(2) Robot module
(3) Gantry 2 with placement head
(4) PCB conveyor (single or dual conveyor)
(5) Gantry 1 with placement head
(6) Monitor with keyboard (2x)
(7) Component trolley at location 1
(8) Location 2 with COT insert, tape cutter, empty tape duct
(T) Direction of PCB transport
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(6)
(8)
User manual SIPLACE SX1/SX2 3 Technical data and assemblies
From software version SC 706.1 SP1 Version 10/2014 3.4 Overviews of the modules
105
3.4.2 Overview of SIPLACE SX1 assemblies
3
3

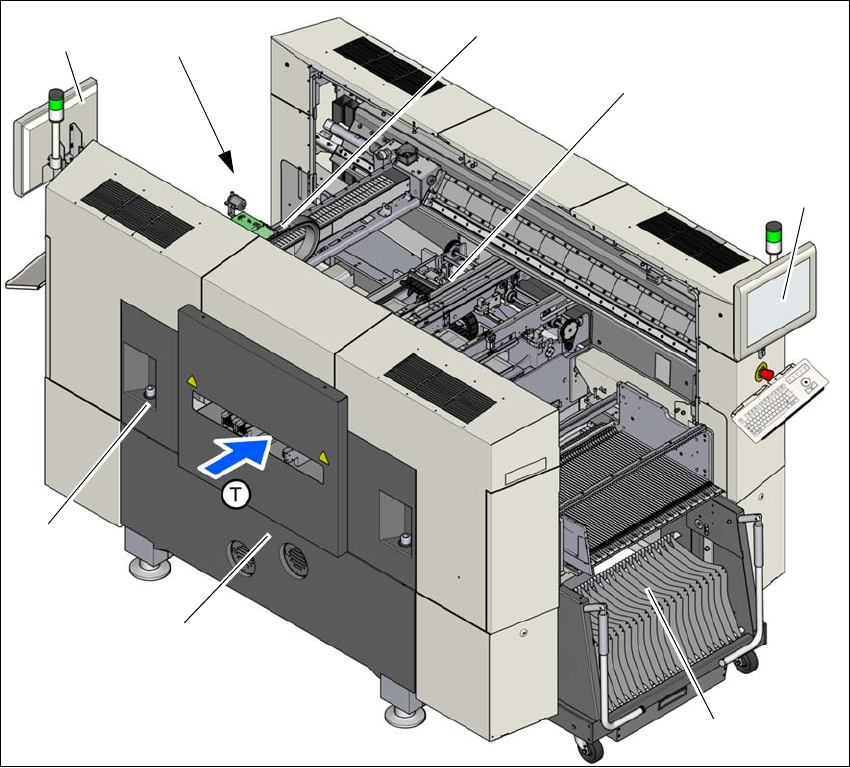

Fig. 3.4 - 2 SX1 machine - overview of assemblies
(1) Basic module
(2) Robot module
(3) Gantry 1 with placement head
(4) PCB conveyor (single or dual conveyor)
(5) Monitor with keyboard (2x)
(6) Location 2 with component trolley
(7) Location 1 with COT insert, tape cutter, empty tape duct
(T) Direction of PCB transport
(1)
(2)
(3)
(4)
(5)
(6)
(5)
(7)
3 Technical data and assemblies User manual SIPLACE SX1/SX2
3.5 Placement head From software version SC 706.1 SP1 Version 10/2014
106
3.5 Placement head
3.5.1 SIPLACE SpeedStar C&P20 for very high speed placement
3

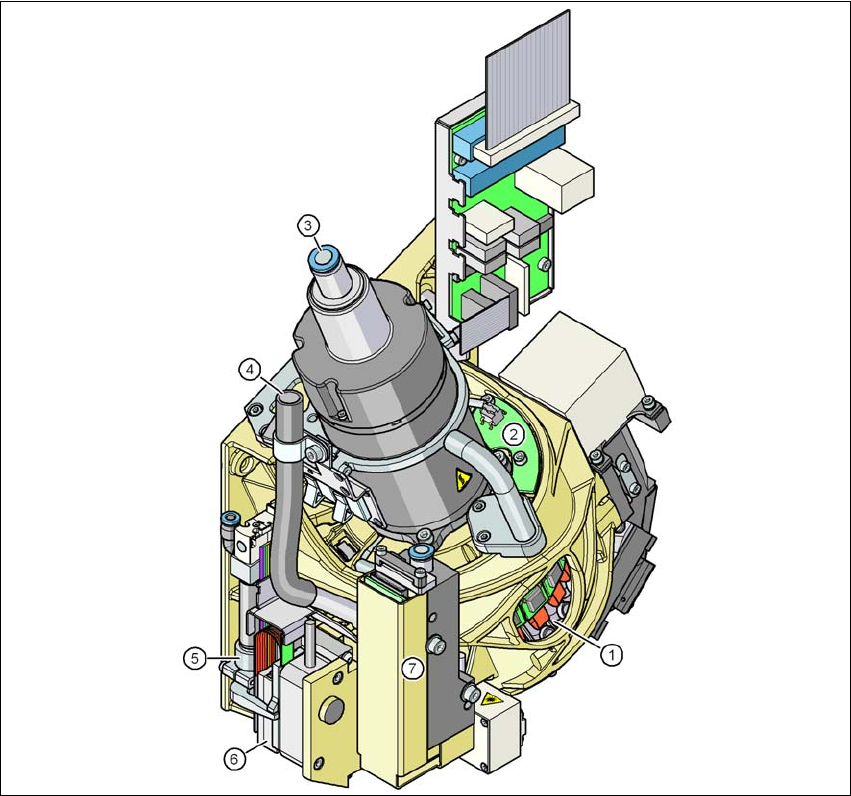

Fig. 3.5 - 1 SIPLACE SpeedStar - function group part 1
(1) DP drive, 20 drives
(2) "Vacuum sensor hold circuit" board
(3) Compressed air connection for 20 Venturi nozzles in the pickup/placement and holding circuit
(4) Line for the exhaust air from the pressure control valve (7)
(5) Return cylinder
(6) Z motor (linear motor)
(7) Pressure control valve
