3 Technical data and assemblies User manual SIPLACE SX1/SX2
3.9 X feeder modules for SIPLACE SX1/SX2 From software version SC 706.1 SP1 Version 10/2014
148
3.9.2 Technical data for the SIPLACE X-Series feeder modules
The following pages contain pictures of the X-Series feeder modules and the technical data.
3.9.2.1 Tape feeder module 4 mm X
3
Fig. 3.9 - 3 Tape feeder module 4 mm X
3
Tape feeder module 4 mm X Item no. 00141268-xx
Width 10.8 mm
Feeder module locations filled 1
Conveyor increment 1 mm
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
User manual SIPLACE SX1/SX2 3 Technical data and assemblies
From software version SC 706.1 SP1 Version 10/2014 3.9 X feeder modules for SIPLACE SX1/SX2
149
3.9.2.2 Tape feeder module 8 mm X
3

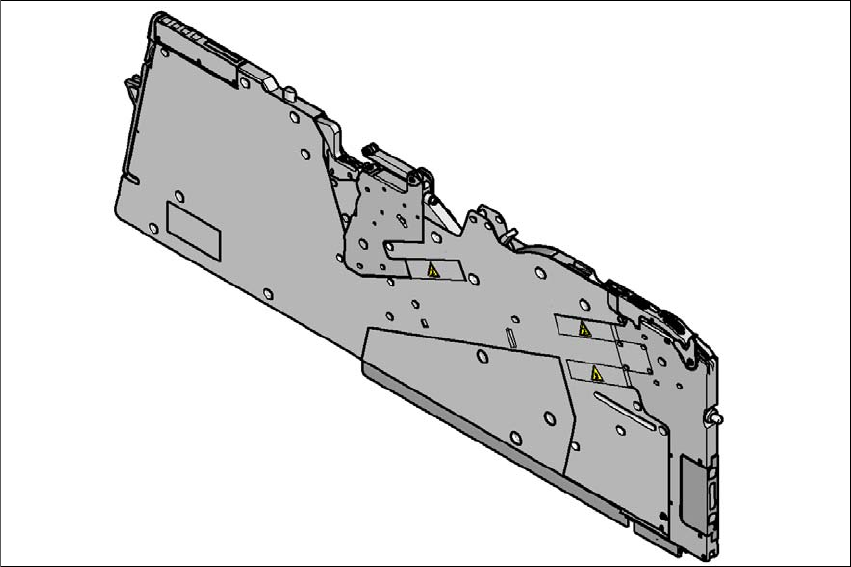

Fig. 3.9 - 4 Tape feeder module 8 mm X
3
Tape feeder module 8 mm X Item no. 00141270-xx
Tape feeder module 8 mm X with splice sensor Item no. 00141290-xx
Width 10.8 mm
Feeder module locations filled 1
Conveyor increment 1 mm / 2 mm / 4 mm / 8 mm
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
3 Technical data and assemblies User manual SIPLACE SX1/SX2
3.9 X feeder modules for SIPLACE SX1/SX2 From software version SC 706.1 SP1 Version 10/2014
150
3.9.2.3 Tape feeder module SIPLACE Smart Feeder 2x8 mm X
3
Fig. 3.9 - 5 Tape feeder module Smart Feeder 2x8 mm X
3
Tape feeder module Smart Feeder 2x8 mm X Item no. 00141269-xx
Tape feeder module Smart Feeder 2x8 mm X with
splice sensor
Item no. 00141289-xx
Width 22.6 mm
Feeder module locations filled 2
Conveyor increment 1 mm / 2 mm / 4 mm / 8 mm
Changeover time for one tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
