User manual SIPLACE SX1/SX2 3 Technical data and assemblies From software version SC 706.1 SP1 Version 10/2014 3.9 X feeder modules for SIPLACE SX1/SX2 151 3.9.2.4 SIPLACE Smart Feeder 8 mm X 3 Fig. 3.9 - 6 SIPLACE Smart…
3 Technical data and assemblies User manual SIPLACE SX1/SX2
3.9 X feeder modules for SIPLACE SX1/SX2 From software version SC 706.1 SP1 Version 10/2014
150
3.9.2.3 Tape feeder module SIPLACE Smart Feeder 2x8 mm X
3
Fig. 3.9 - 5 Tape feeder module Smart Feeder 2x8 mm X
3
Tape feeder module Smart Feeder 2x8 mm X Item no. 00141269-xx
Tape feeder module Smart Feeder 2x8 mm X with
splice sensor
Item no. 00141289-xx
Width 22.6 mm
Feeder module locations filled 2
Conveyor increment 1 mm / 2 mm / 4 mm / 8 mm
Changeover time for one tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
User manual SIPLACE SX1/SX2 3 Technical data and assemblies
From software version SC 706.1 SP1 Version 10/2014 3.9 X feeder modules for SIPLACE SX1/SX2
151
3.9.2.4 SIPLACE Smart Feeder 8 mm X
3

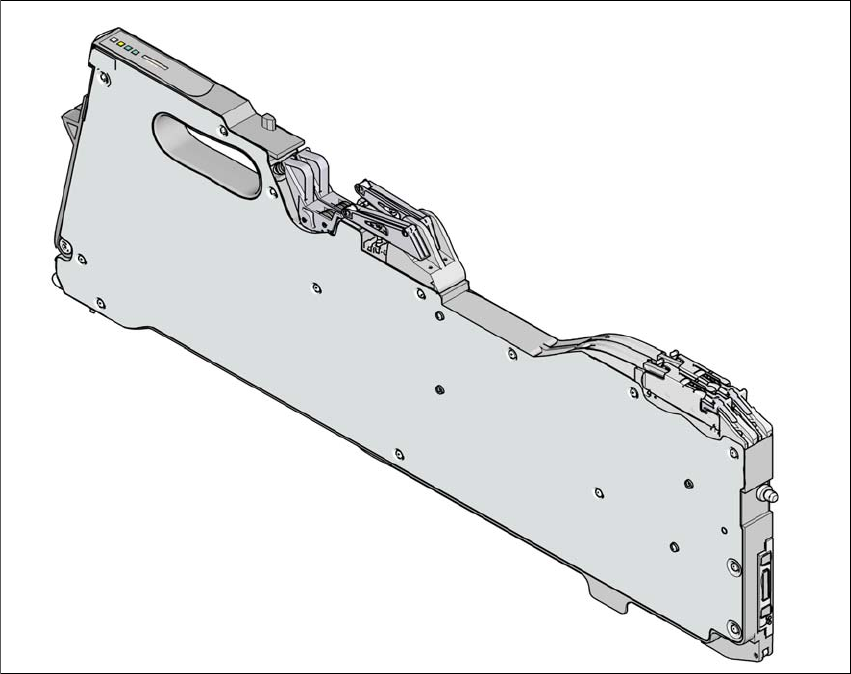

Fig. 3.9 - 6 SIPLACE Smart Feeder 8 mm X
3
SIPLACE Smart Feeder 8 mm X Item no. 00141370-xx
SIPLACE Smart Feeder 8 mm X with splice sensor Item no. 00141390-xx
Width 10.8 mm
Feeder module locations filled 1
Conveyor increment 1 mm / 2 mm / 4 mm / 8 mm
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
3 Technical data and assemblies User manual SIPLACE SX1/SX2
3.9 X feeder modules for SIPLACE SX1/SX2 From software version SC 706.1 SP1 Version 10/2014
152
3.9.2.5 Tape feeder module SIPLACE Smart Feeder 12 mm X
3
Fig. 3.9 - 7 Tape feeder module SIPLACE Smart Feeder 12 mm X
3
3
Tape feeder module Smart Feeder 12 mm X Item no. 00141371-xx
Tape feeder module Smart Feeder 12 mm X with
splice sensor
Item no. 00141391-xx
Width 22.6 mm
Feeder module locations filled 2
Conveyor increment From 4 mm to 16 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
