3.10.5 Changeover table for SIPLACE SX1/SX2
The front slider guides of the feeder modules are placed on the insertion aid. As it is pushed in,
the guides of the feeder module slide on the guide profile as far as the stop bar. A centering hole
on the stop bar holds the "front" centering pin of the X feeder module. At the same time, the locking
latch of the changeover table latches onto the locking roller of the feeder module. The "back" cen-
tering pin on the top of the feeder module is held by the recess in the centering bar.
3

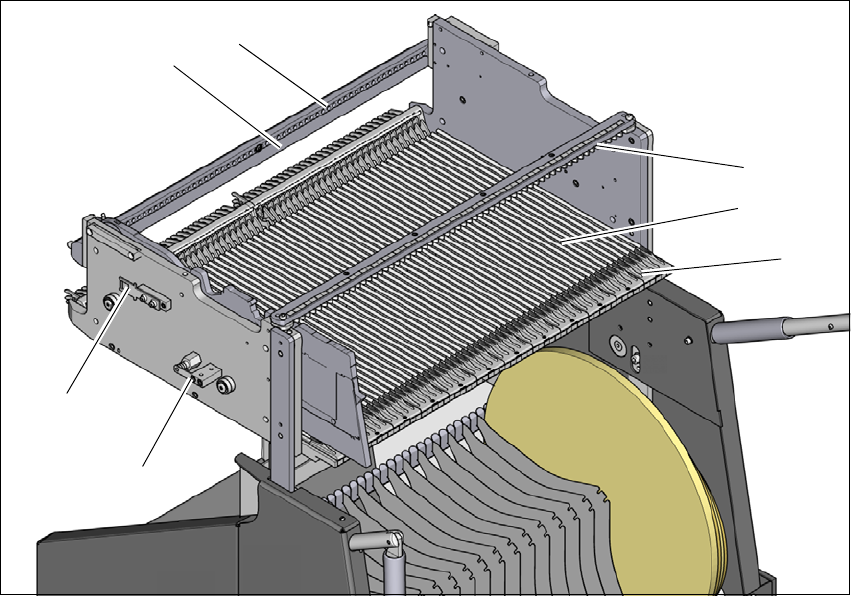

Fig. 3.10 - 6 Changeover table, back view
(1) Insertion aid
(2) Guide profile (Ω profile)
(3) Centering bar for holding the "back" centering pin for X feeder modules
(4) Stop bar
(5) Centering holes
(6) Contact for switching the safety switch of the EMERGENCY STOP circuit
(7) Lock
(1)
(2)
(3)
(4)
(5)
(6)
(7)
3 Technical data and assemblies User manual SIPLACE SX1/SX2
3.10 Component trolley for SIPLACE SX1/SX2 From software version SC 706.1 SP1 Version 10/2014
178
3

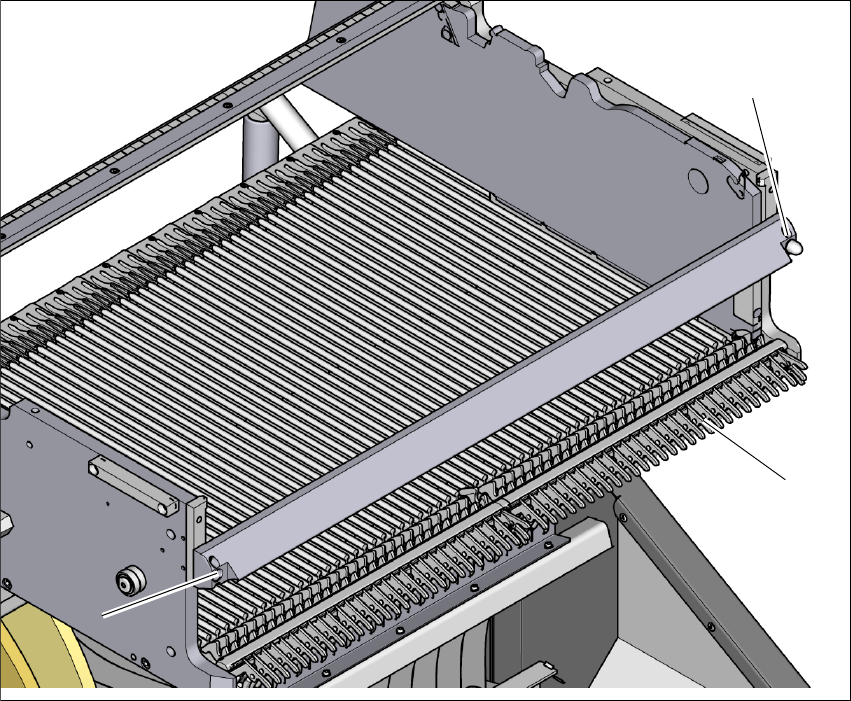

Fig. 3.10 - 7 Changeover table, front view
(1) Locking latches
(2) Centering pin on the changeover table
(3) Centering hole on the changeover table
(1)
(2)
(3)
User manual SIPLACE SX1/SX2 3 Technical data and assemblies
From software version SC 706.1 SP1 Version 10/2014 3.10 Component trolley for SIPLACE SX1/SX2
179
3.10.6 Mount for the additional reel for the changeover table
3

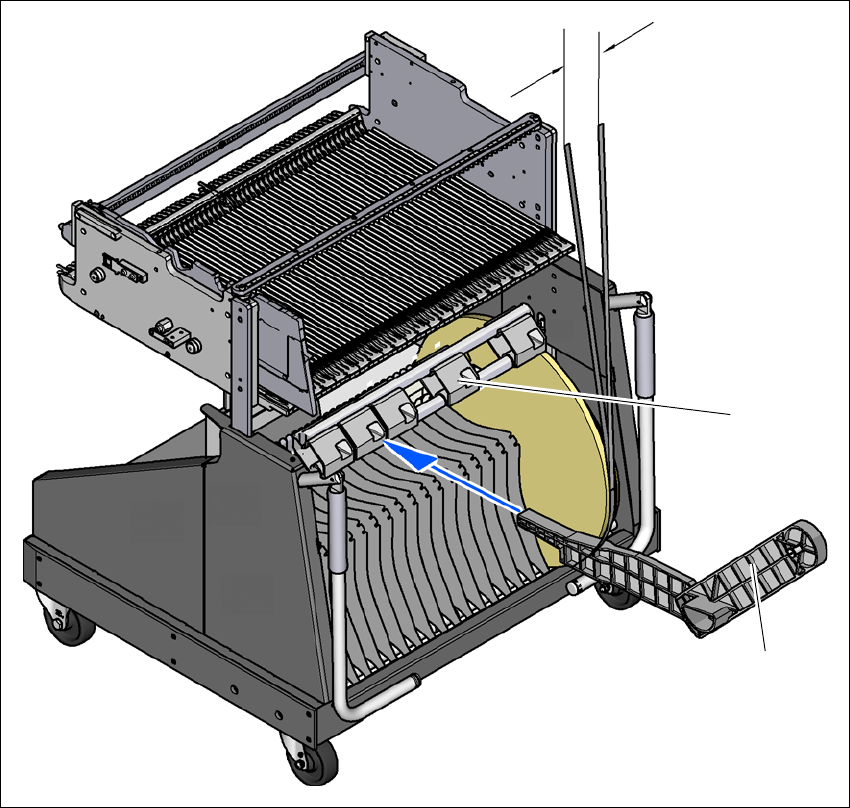

Fig. 3.10 - 8 Mount of additional tape reel
(1) Mount of additional tape reel, item no. 03075622-xx
(2) Mounting device for the support
X-Series feeder modules can process component tapes without problems if the lateral offset be-
tween the feeder module and the tape reel does not exceed 60 mm. If a predefined setup means
that the maximum permitted offset cannot be maintained, we recommend that you use the mount
for an additional tape reel (item 1). Simply insert the mount into the holder (item 2) and push it
until the offset is less than the maximum permitted value of 60 mm. The component trolley has 5
holders in total. Each tape reel mount can hold 2 tape reels, which means that up to ten 15" (381
mm) tape reels can be positioned above the tape container.
Max. 60 mm
(1)
(2)
