User manual SIPLACE SX1/SX2 4 Setting up and commissioning From software version SC 706.1 SP1 Version 10/ 2014 4.1 Transportation and delivery co nfiguration 183 4 Setting up and commissioning 4.1 T ransporta tion and de…
3 Technical data and assemblies User manual SIPLACE SX1/SX2
3.10 Component trolley for SIPLACE SX1/SX2 From software version SC 706.1 SP1 Version 10/2014
182
3.10.9 Empty tape duct on the component trolley COT insert
In the standard version, the empty tape duct can guide component tapes with a maximum pocket
height of 12 mm to the pneumatic tape cutter.
3

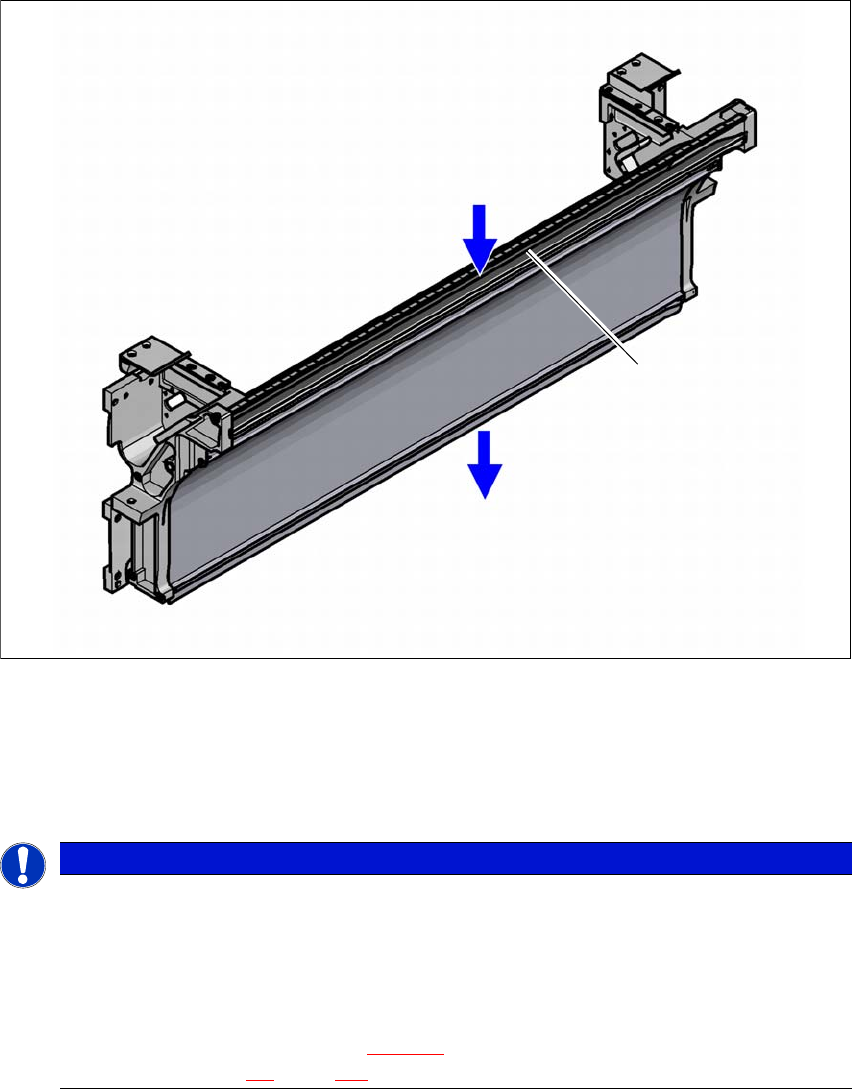

Fig. 3.10 - 11 Empty tape duct on the SIPLACE SX1/SX2 component trolley COT insert
(1) Inlet slot for used tape
(2) Outlet slot for the used tape above the pneumatic tape cutter
(3) Dividing plate for tapes < 12 mm (can be removed for tapes > 12 mm)
3
PLEASE NOTE
Risk of blockages!
When using feeder modules with low pockets next to feeder modules with high pockets,
there is a risk of blockages in the empty tapes.
Do not position feeder modules with shallow pockets immediately beside feeder mod-
ules with deep pockets.
The separating plate (item 3 in fig. 3.10 - 11
) can be removed for tape pockets higher than
12 mm (see section 4.5
, page 220).
(1)
(2)
(3)
User manual SIPLACE SX1/SX2 4 Setting up and commissioning
From software version SC 706.1 SP1 Version 10/2014 4.1 Transportation and delivery configuration
183
4 Setting up and commissioning
4.1 Transportation and delivery configuration
4.1.1 Shipping packaging
Within Europe, the machine and component trolleys will be shipped on two wooden pallets, pack-
aged in plastic film. Outside Europe, the machine and component trolleys are supplied in wooden
crates.
4.1.1.1 Shipping packaging dimensions
The dimensions of the pallets and wooden crates are listed in the following table:
4

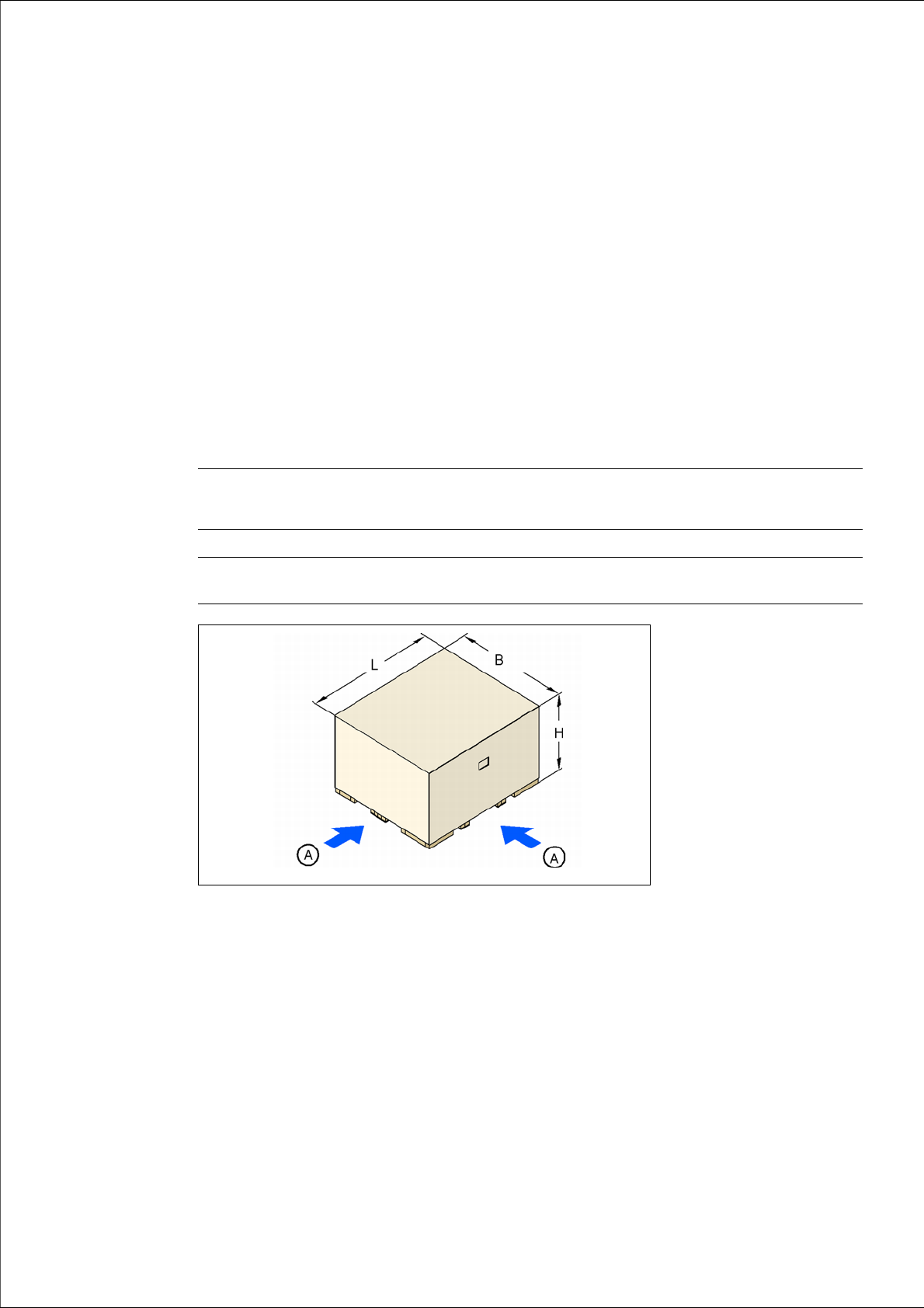

Fig. 4.1 - 1 Transport crate - dimensions in millimeters
(A) Fork-lift attachment points
Machine (L x W x H) Component trolley 60 (L
x W x H)
Component trolley 30 (L
x W x H)
Pallet 2630 mm x 1840 mm 2060 mm x 1350 mm 1700 mm x 1180 mm
Wooden
crate
2630 mm x 1840 mm x
1880 mm
2060 mm x 1350 mm x
1300 mm
1700 mm x 1200 mm x
1330 mm
4 Setting up and commissioning User manual SIPLACE SX1/SX2
4.1 Transportation and delivery configuration From software version SC 706.1 SP1 Version 10/2014
184
4.1.1.2 Weight of machine when ready for dispatch
The following table contains the weights of the machines prepared for dispatch, including packag-
ing.
4
4.1.2 Checking a delivery
Store the machine in the packaging until room temperature has been reached. There is oth-
erwise a risk of condensation occurring.
Check the delivery for damage.
Check the shock sensors on the transportation crate.
Unpack the machine and the accessories and check the delivery for completeness (reference
delivery note).
Document the results in the installation report /acceptance protocol.
4.1.3 Configuration when delivered
The machine is configured as follows when delivered:
– The track on the single conveyor is set to a width of 210 mm. On the dual conveyor, the width
of conveyor track 1 is 100 mm and of conveyor track 2 is 210 mm. This width setting will be
important when fine-tuning the machine.
– Both keyboards are disconnected.
– The support plates for the keyboards are unhooked.
– Both monitors are dismantled.
– Both indicator lamps are dismantled.
– All the gantry axes are fixed with shipping braces.
Machine Dispatch within Europe Dispatch overseas
SX1/SX2 2,500 kg 2,800 kg
Component trolley 230 kg 350 kg
