4 Setting up and commissioning User manual SIPLACE SX1/SX2
4.3 Setting up the machine From software version SC 706.1 SP1 Version 10/2014
200
4.3 Setting up the machine
4.3.1 Warning instructions
4
4
4
4
4
WARNING
Observe the applicable accident prevention regulations!
Only SIPLACE engineers or qualified people are permitted to set up and commission the
machine.
The applicable accident prevention regulations concerning the transportation of
heavy goods must be followed.
WARNING
Risk of injury during assembly work to the underside of the machine!
There is a risk of injury during assembly work to the underside of the machine!
Secure the machine using suitable measures. The fork-lift must not be used as the
only support.
WARNING
Risk of injury during assembly work!
Incorrect positioning of gantries during assembly restricts the head clearance and can
lead to injuries.
Take care that the gantries are positioned over the board conveyor area.
WARNING
Height adjustment of machine!
Two people will be needed to adjust the height of the machine:
– One person completes the required assembly work
– The other person watches the stability of the raised machine during assembly.
WARNING
DANGER OF CRUSHING!
Risk of crushing feet when transporting the machine.
Wear specially reinforced shoes.
User manual SIPLACE SX1/SX2 4 Setting up and commissioning
From software version SC 706.1 SP1 Version 10/2014 4.3 Setting up the machine
201
4.3.2 Lifting and transporting the machine with the fork lift truck
4

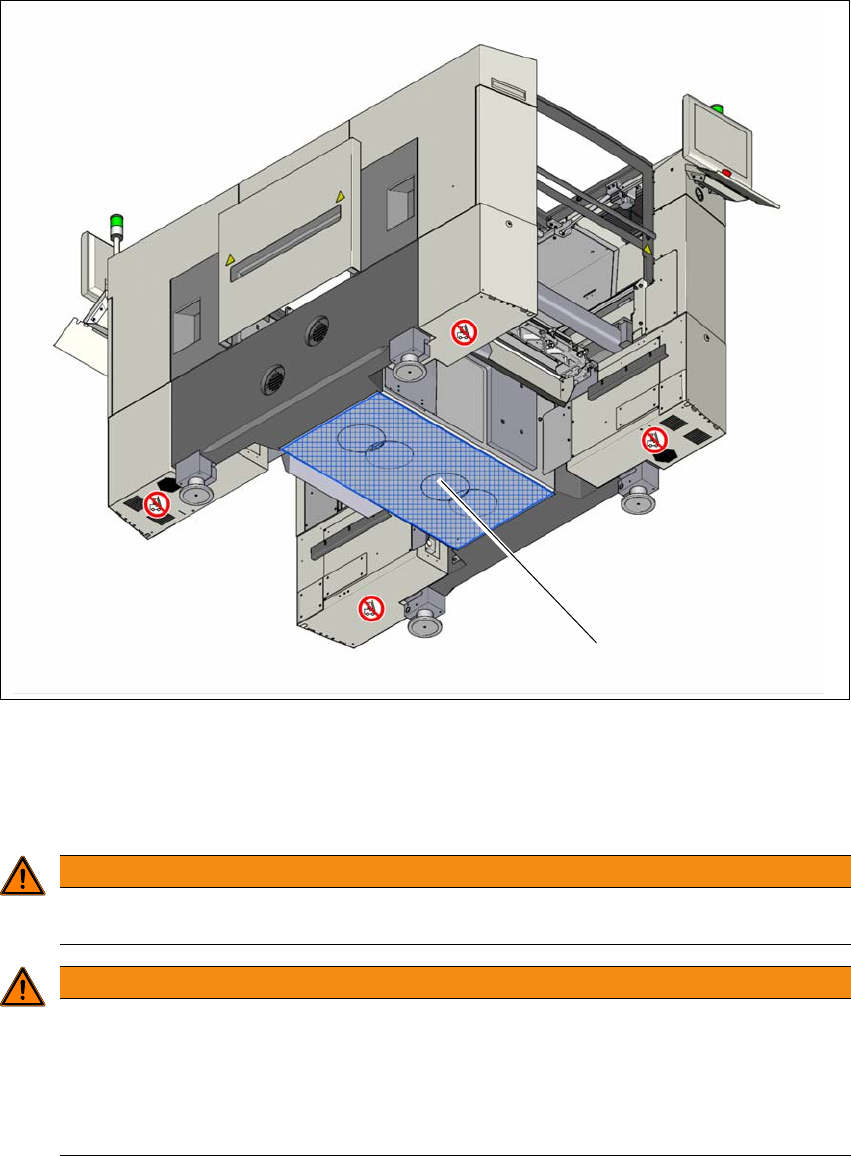

Fig. 4.3 - 1 Contact surface - forks at right angles to the direction of PCB transport
(1) Contact surface for fork lift truck forks
Position the fork-lift truck at right angles to the PCB conveyor and open the forks until the con-
tact surfaces of the machine lie evenly on the forks.
WARNING
Please note the following points before you raise the machine in order to avoid irreversible
damage to the machine:
WARNING
Aligning the forks!
Please note the following points before you raise the machine in order to avoid irreversible
damage to the machine:
– The forks must be aligned parallel to the PCB conveyor.
– The forks must be aligned to the center of the machine.
(1)
4 Setting up and commissioning User manual SIPLACE SX1/SX2
4.3 Setting up the machine From software version SC 706.1 SP1 Version 10/2014
202
4
4
4
4.3.3 Fitting attached parts
The machine is delivered with the monitor, operating panel, keyboard and indicator lamp disman-
tled. To fit these components, proceed as follows:
– To fit the indicator lamps see section 4.3.3.2
, page 203
– To fit the monitors see section 4.3.3.3, page 203
– Hook up the keyboard fixture and connect the keyboard.
4.3.3.1 Checking and setting the protective cover switch
Check the function of the protective cover switch (see 2.5.1 on page 56).
Adjust the protective cover switch if necessary (see service manual).
WARNING
Risk of damage due to excessive fork spacing!
Increased fork spacing, which means that the machine is raised at points outside its con-
tact surface, can lead to deformation of the machine frame and cause damage to cables
and lines.
The forks may only be opened to a degree which ensures that they are still within the
contact area of the machine underside (see fig. 4.1 - 3
, page 189).
WARNING
Risk of damage due to one-sided loading!
One-sided loading of the machine feet e.g. from tilting the machine, can lead to deforma-
tion of the machine feet.
Make sure that the forks are evenly loaded when you lift the machine.
Use a firm support layer between the forks and the machine.
Enlist the help of a second person to watch while you lift the machine and make sure
that the machine does not tip over to one side.
WARNING
Risk of damage!
The thread for the machine feet in the machine frame could be damaged by being
dragged along the floor or from impact.
When you are transporting the machine, make sure that all the feet are clear of the
floor.
